Si04-306 Indoor Unit
Removal Procedure 145
5

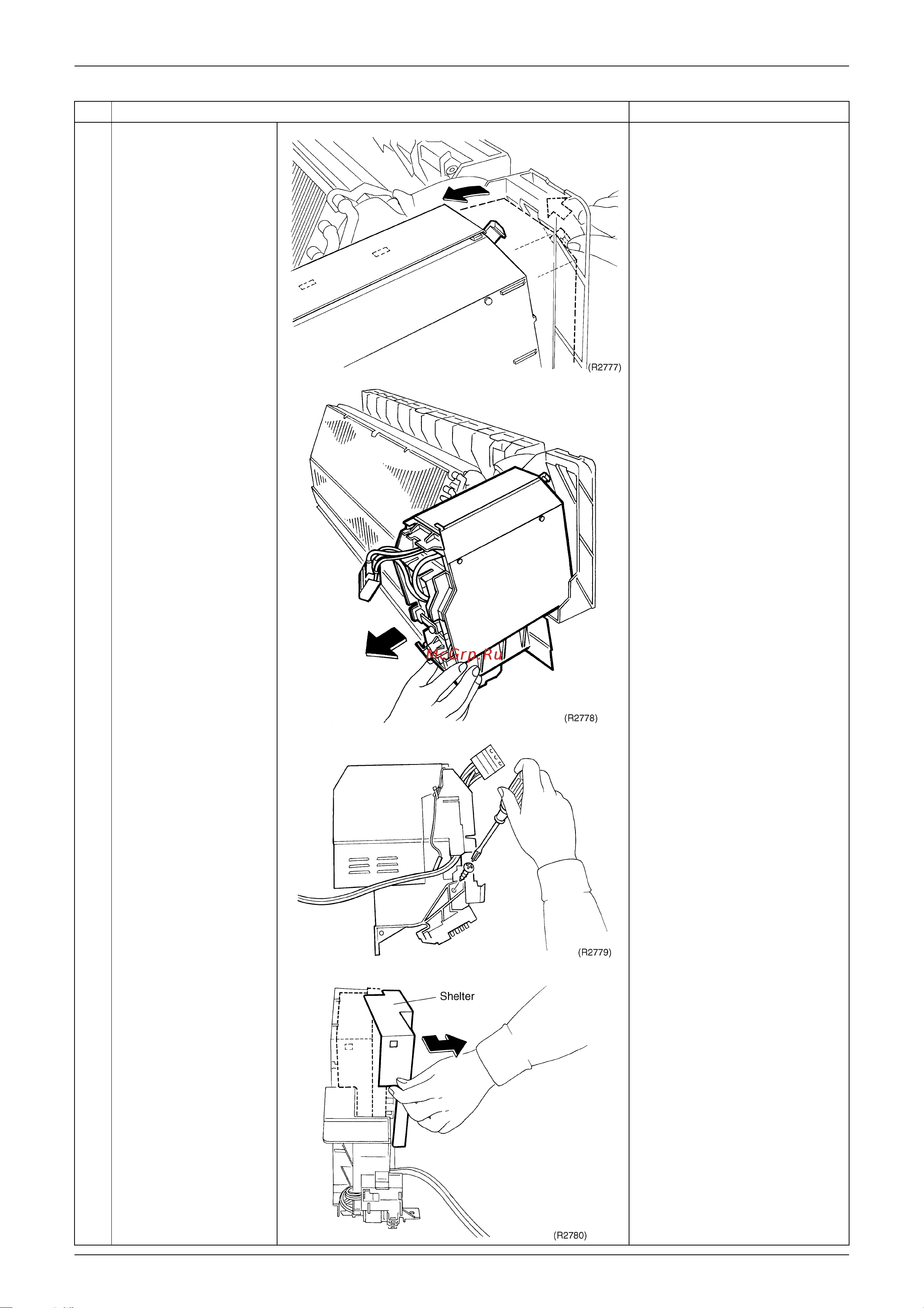

Dislocate the electrical
box to the left and undo
the back claw.
The electrical box has a claw
on its back.
6
Pull the electrical box
out towards you.
Hook the back claw of the
electrical box when
reassembling.
7
Loosen the screw on
the electrical box.
Screw: M4×16
8
Push the shelter up and
undo the claw.
Step
Procedure Points
