Indoor Unit Si04-306

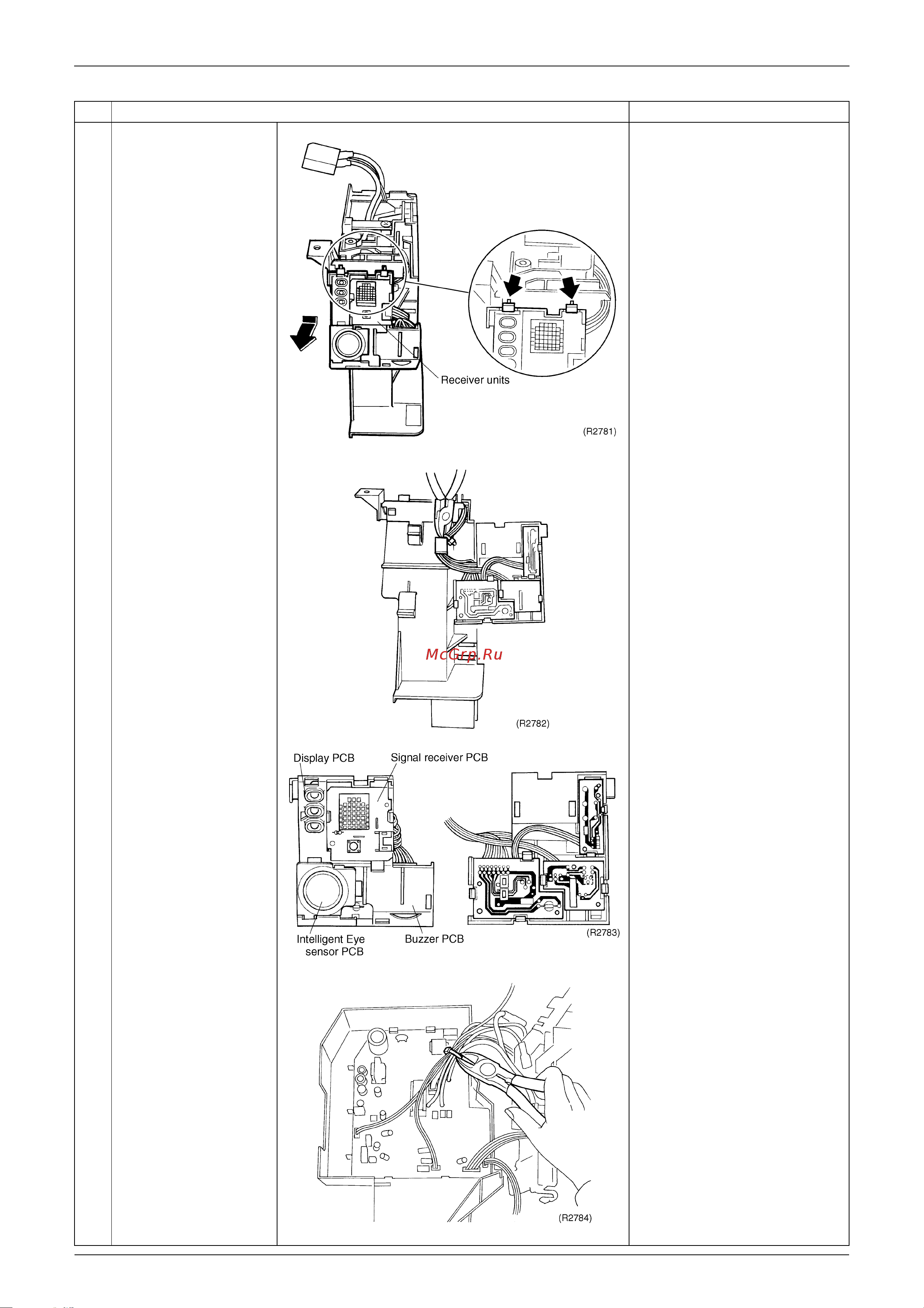

146 Removal Procedure
9
Press the receiver units
down and release the
claws on the upper
side, and then undo the
claws on the lower side.
Release the claws on the
upper side.
10
Cut the clamp.
11
The receiver units
contain four PCBs.
Remove each PCB with
releasing claws.
Disconnect every
connector from each
PCB.
Remove the receiver units
while pushing the claws of
connectors.
12
Cut the clamp.
Clamps should be always
available.
Fix it as it was before.
Step
Procedure Points
