Si04-306 Indoor Unit
Removal Procedure 147

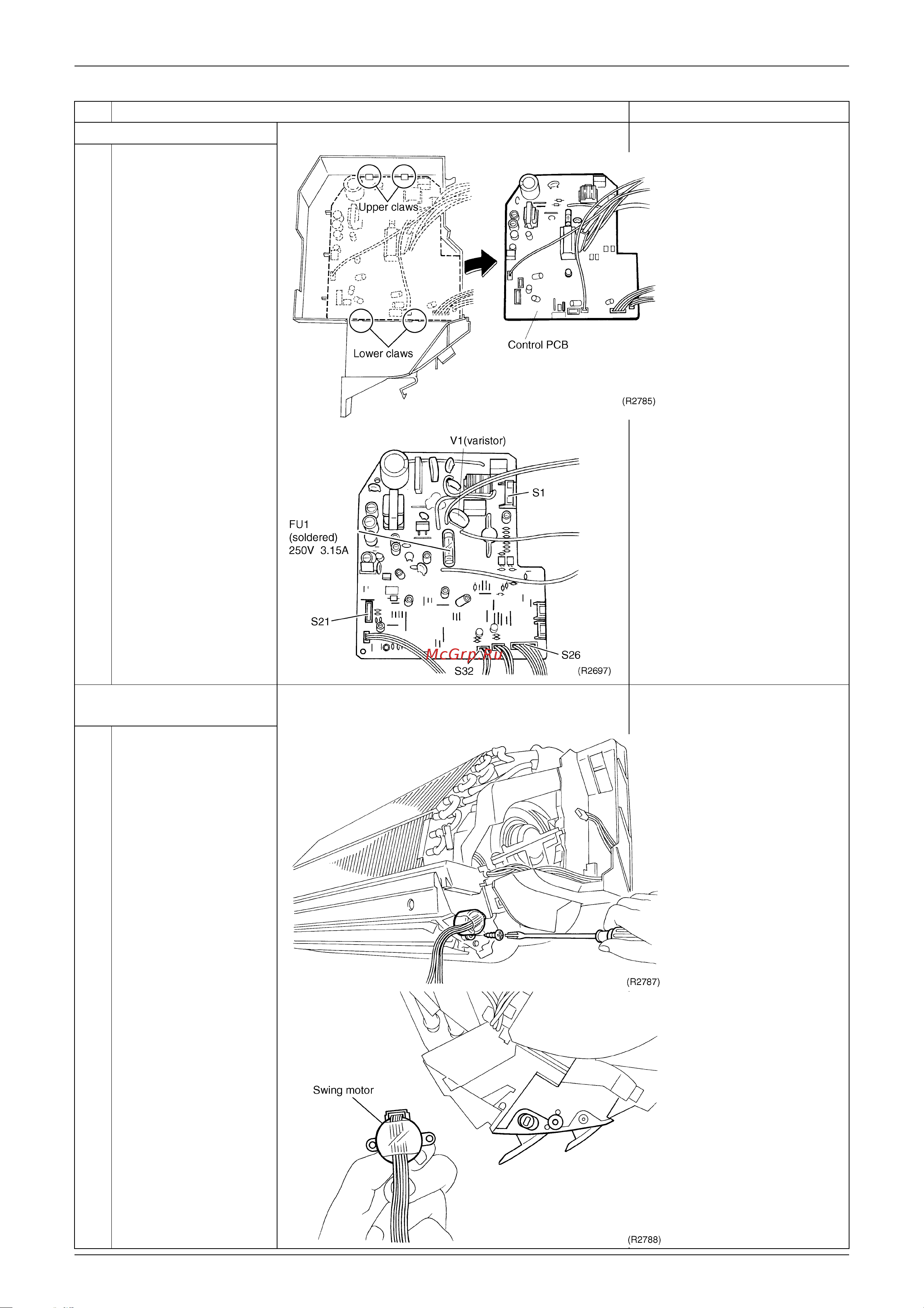

5. Remove the control PCB.
1
Undo the two claws on
the lower side, and then
the two claws on the
upper side.
Remove the control
PCB.
2
Control PCB (indoor
unit)
S1: connector for the
fan motor
S21: HA
S26: connector for the
room temperature
thermistor
S32: connector for the
heat exchanger
thermistor
6. Remove the swing motor
for horizontal blades.
1
Remove the screw of
the swing motor .
Step
Procedure Points
