Daikin RYS60BVMB [21/53] Installation

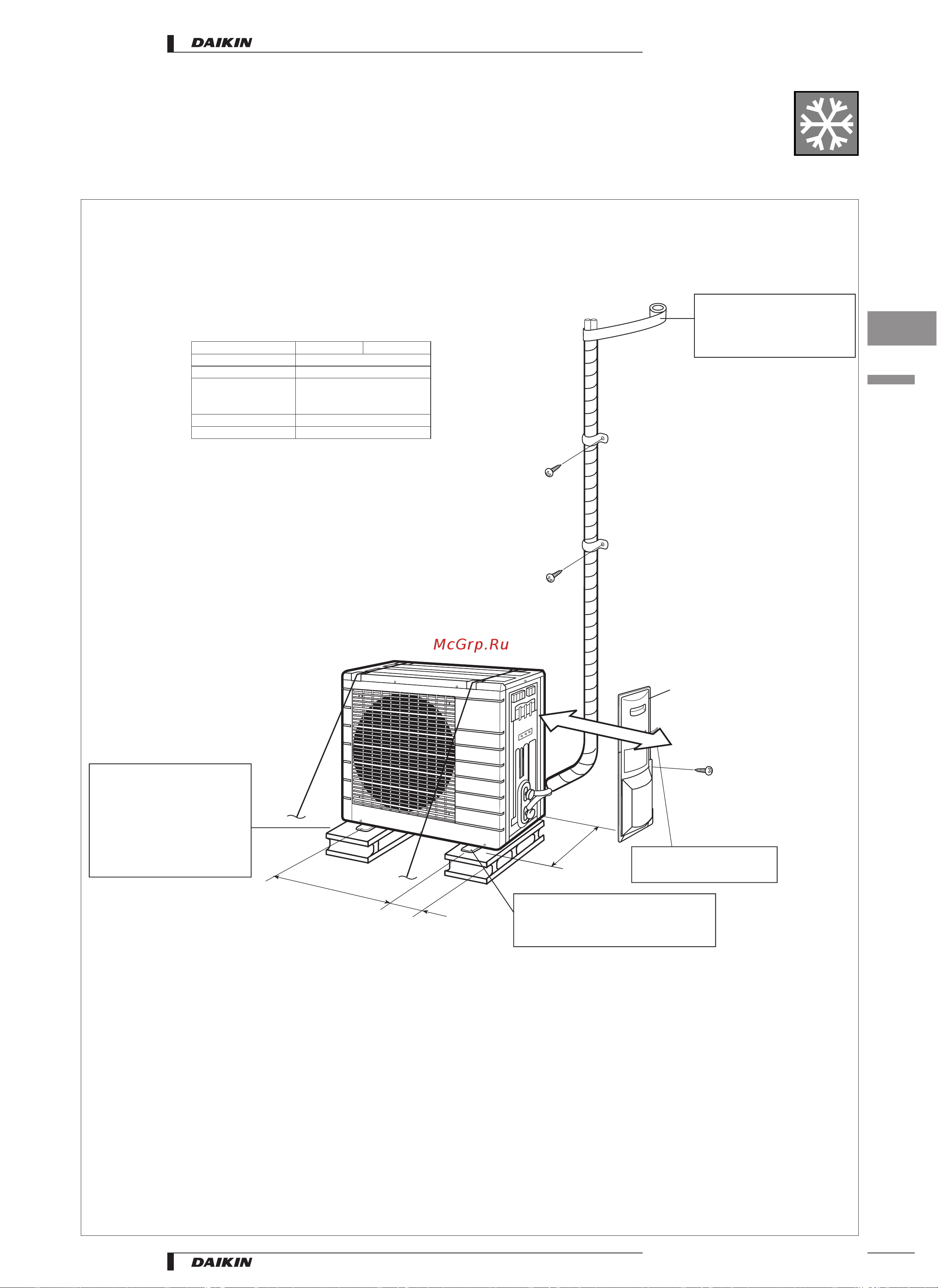

Outdoor unit installation drawings

Wrap the installation pipe with the

finishing tape from bottom to top

Model 50 class 60 class

Max. allowable length 30m

Max. allowable height 20m

Additional refrigerant required

for refrigerant pipe exceeding

10 m in length.

20 g/m

Gas pipe O.D. 12.7 mm

Liquid pipe O.D. 6.4 mm

* Be sure to add the proper amount of additional refrigerant.

Failure to do so may result in reduced performance.

In sites with poor drainage, use block

bases for outdoor unit. Adjust foot

height until the unit is leveled. Otherwise,

water leakage or pooling of water may

occur.

Where there is a danger of the unit falling, use foot

bolts, or wires.

Allow space for piping and electrical

servicing.

Service lid

Foot bolt-hole

centres

Foot bolt-hole centres

From unit’s side

250 mm from wall

RS50,60B

580 mm

120 mm

330 m

•

Pair Application •

R-410A •

RN20,25,35CVMB • RS50,60BVMB

Installation

477

• Split - Sky Air • Outdoor Units
