9 ■English
Wiring
WARNING
1) Do not use tapped wires, stand wires, extensioncords, or starbust connections, as they may cause overheating, electrical
shock, or fire.
2) Do not use locally purchased electrical parts inside the product. (Do not branch the power for the drain pump, etc., from the
terminal block.) Doing so may cause electric shock or fire.
3) Be sure to install an earth leak detector. (One that can handle higher harmonics.)
(This unit uses an inverter, which means that it must be used an earth leak detector capable handling harmonics in order to
prevent malfunctioning of the earth leak detector itself.)
4) Use an all-pole disconnection type breaker with at least 3 mm between the contact point gaps.
• Do not turn ON the safety breaker until all work is completed.

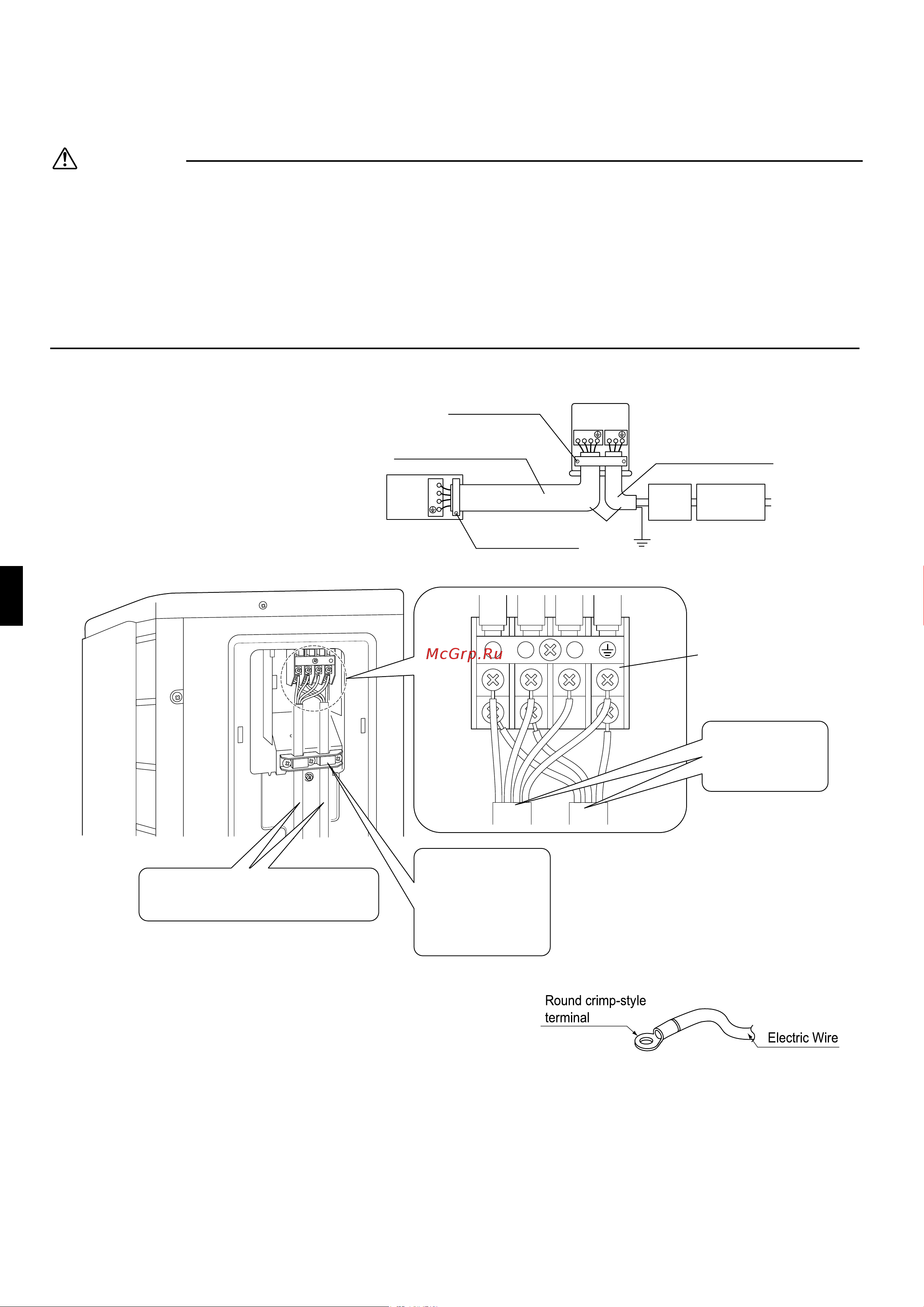

1) Strip the insulation from the wire (20mm).
2) Connect the connection wires between the
indoor and outdoor units so that the termi-
nal numbers match. Tighten the terminal
screws securely. We recommend a flathead
screwdriver be used to tighten the screws.
The screws are packed with the terminal
board.
Observe the notes mentioned below when wiring to the power supply ter-
minal board.
Precautions to be taken for power supply wiring.
Use a round crimp-style terminal for connection to the power supply ter-
minal board. In case it cannot be used due to unavoidable reasons, be
sure to observe the following instruction.
Place the round crimp-style terminals on the wires up to the covered part
and secure in place.
1
2
3
123
LN
Safety
breaker
16A
Earth leakage
circuit breaker
Earth
When wire length exceeds 10m,
use 2.0mm diameter wires.
H05VV
Firmly fix the wires with
the terminal screws.
Outdoor unit
Indoor
unit
Power supply
50Hz 220-240V CVMB
60Hz 220-230V C2VMB
50Hz 220-240V (E2V1B)
Firmly fix the wires with
the terminal screws.
()
Use 2.0mm diameter wires.
1
2
3
1
2
3
Use the specified wire type and
connect it securely.
Firmly secure
wire retainer so
wire terminations
will not receive
external stress.
Shape wires so
that the service
lid fit securely.
Power supply
terminal block
 
 

01_EN_3P119321-7W.fm Page 9 Thursday, March 8, 2007 6:23 PM
