■English 10
CAUTION
When connecting the connection wires to the terminal board using a single core wire, be sure to perform curling.
Problems with the work may cause heat and fires.
3) Pull the wire and make sure that it does not disconnect. Then fix the wire in place with a wire stop.

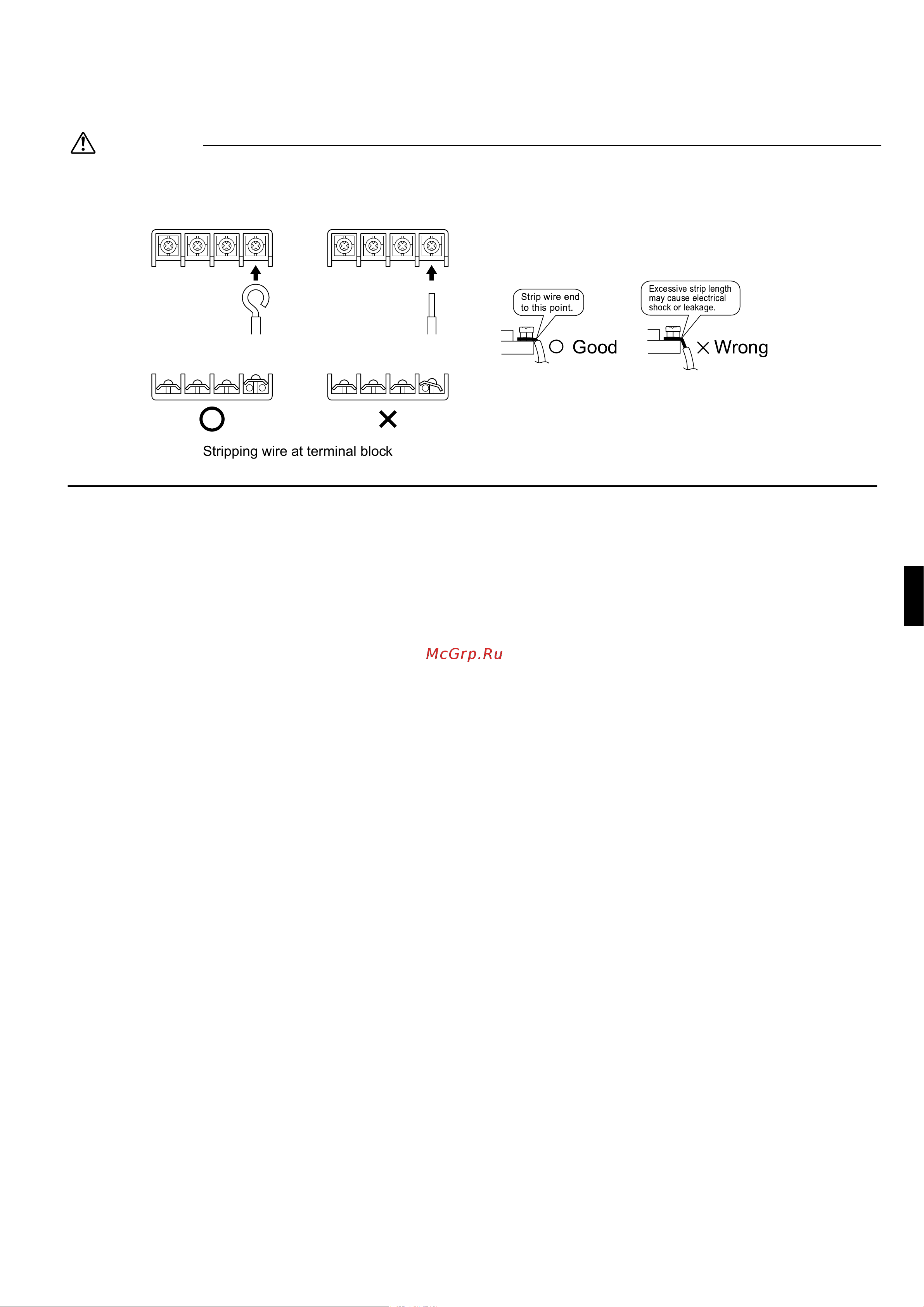

Stripping wire at terminal block
01_EN_3P119321-7W.fm Page 10 Thursday, March 8, 2007 6:23 PM
