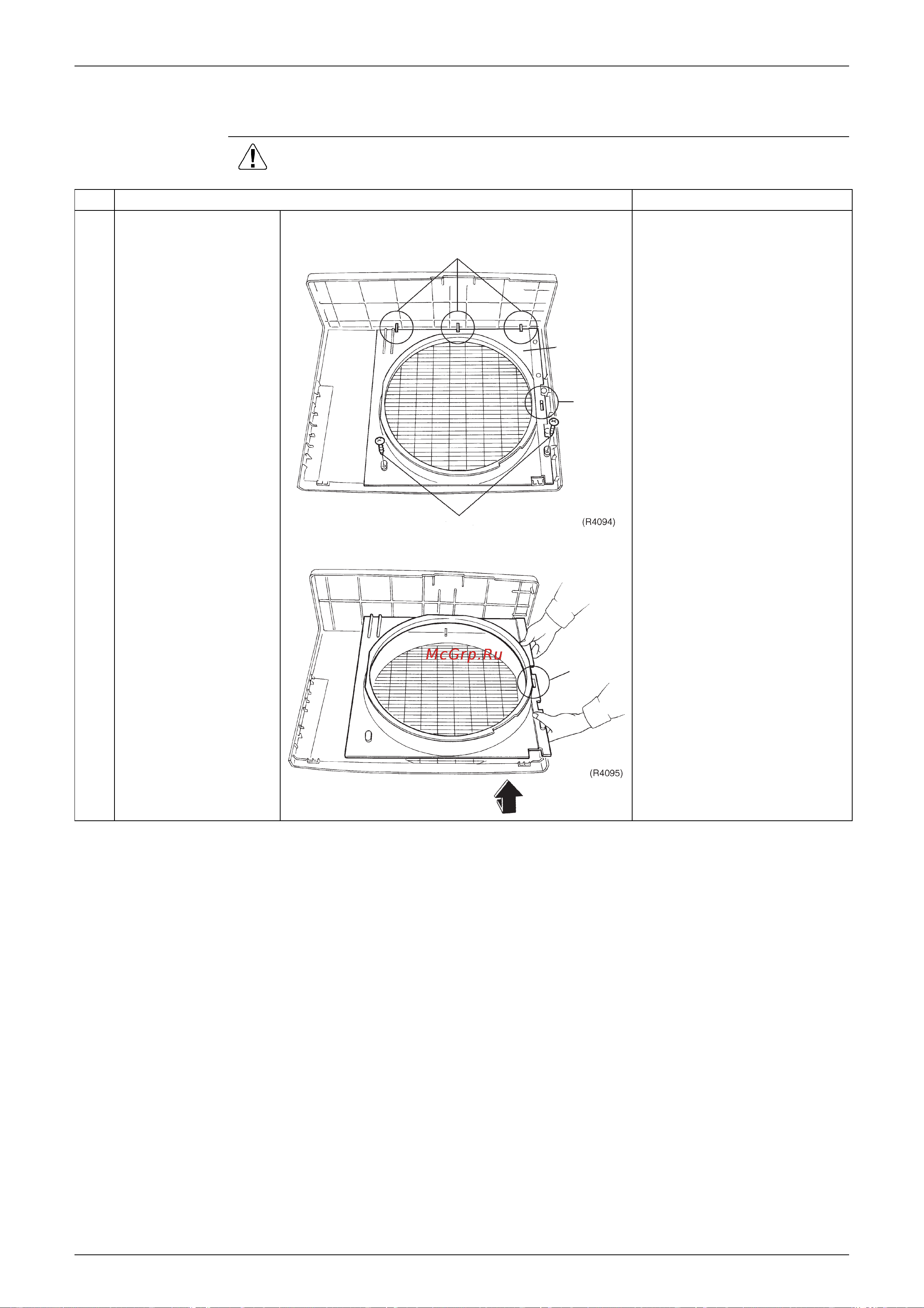

SiENBE04-401A Outdoor Unit / RK(X)H-C, ARK(X)H-C, R(Y)N-C
Removal Procedure 193
3.2 Removal of Bell mouth
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step Procedure Points
1
The bell mouth is
attached to the front
plate with 2 screws and
4 hooks.
2
Remove the 2 screws
and undo the 4 hooks to
release the bell mouth.
Slide the bell mouth in the
arrow direction to disengage
the hook B.
Hook A
Bell mouth
Hook B
Screw
Hook B
