■English 4

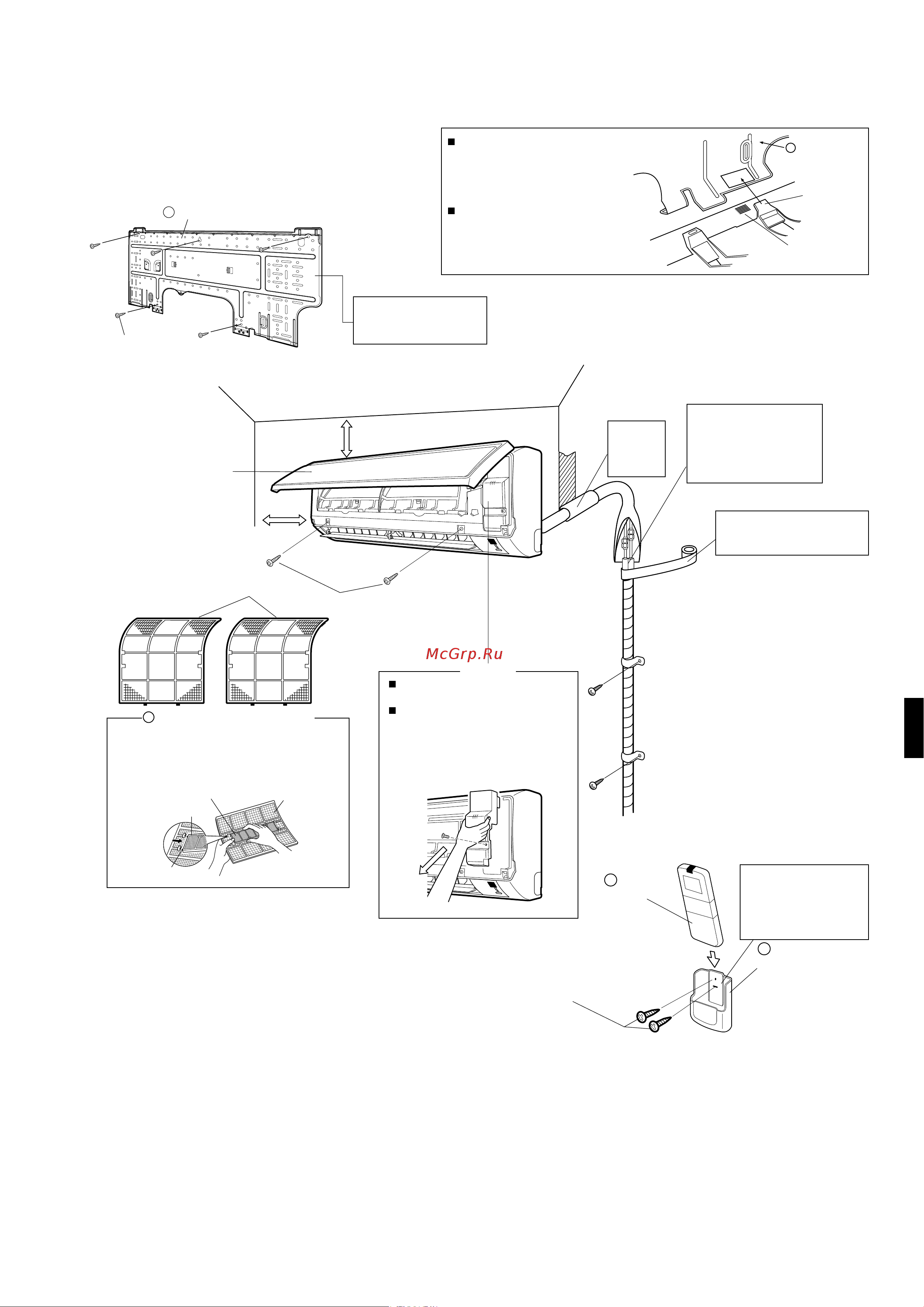

Indoor Unit Installation Drawings
A
M4 × 16L
D
Wireless
remote
controller
E
Remote
controller holder
Before screwing the remote
controller holder to the wall,
make sure that control
signals are properly
received by indoor unit.
Service lid
Opening service lid
Service lid is opening/closing type.
Opening method
1) Remove the service lid screws.
2) Pull out the service lid diagonally
down in the direction of the arrow.
3) Pull down.
Wrap the insulation pipe with
the finishing tape from bottom
to top.
Cut thermal insulation
pipe to an appropriate
length and wrap it with
tape, making sure that no
gap is left in the insulation
pipe’s cut line.
Caulk
pipe hole
gap
with putty.
Mounting
plate
Clip
Mark (rear side)
Bottom frame
Front grille
How to attach the indoor unit.
Hook the claws of the bottom frame
to the mounting plate.
If the claws are difficult to hook,
remove the front grille.
How to remove the indoor unit.
Push up the marked area (at the
lower part of the front grille) to
release the claws. If it is difficult to
release, remove the front grille.
The mounting plate
should be installed on a
wall which can support the
weight of the indoor unit.
30mm or more from ceiling
Front panel
50mm or more from walls
(on both sides)
Air filters
Titanium Apatite Photocatalytic
Air-Purifying Filter (2)
A Mounting plate
Air filter
Titanium Apatite
Photocatalytic
Air-Purifying Filter
Filter frame
Ta b
Screws
(Field supply: M4 × 25L)
Screws
(Field supply: M3 × 20L)
B
01_EN_3P207973-2B.fm Page 4 Wednesday, December 5, 2007 9:14 AM
