12

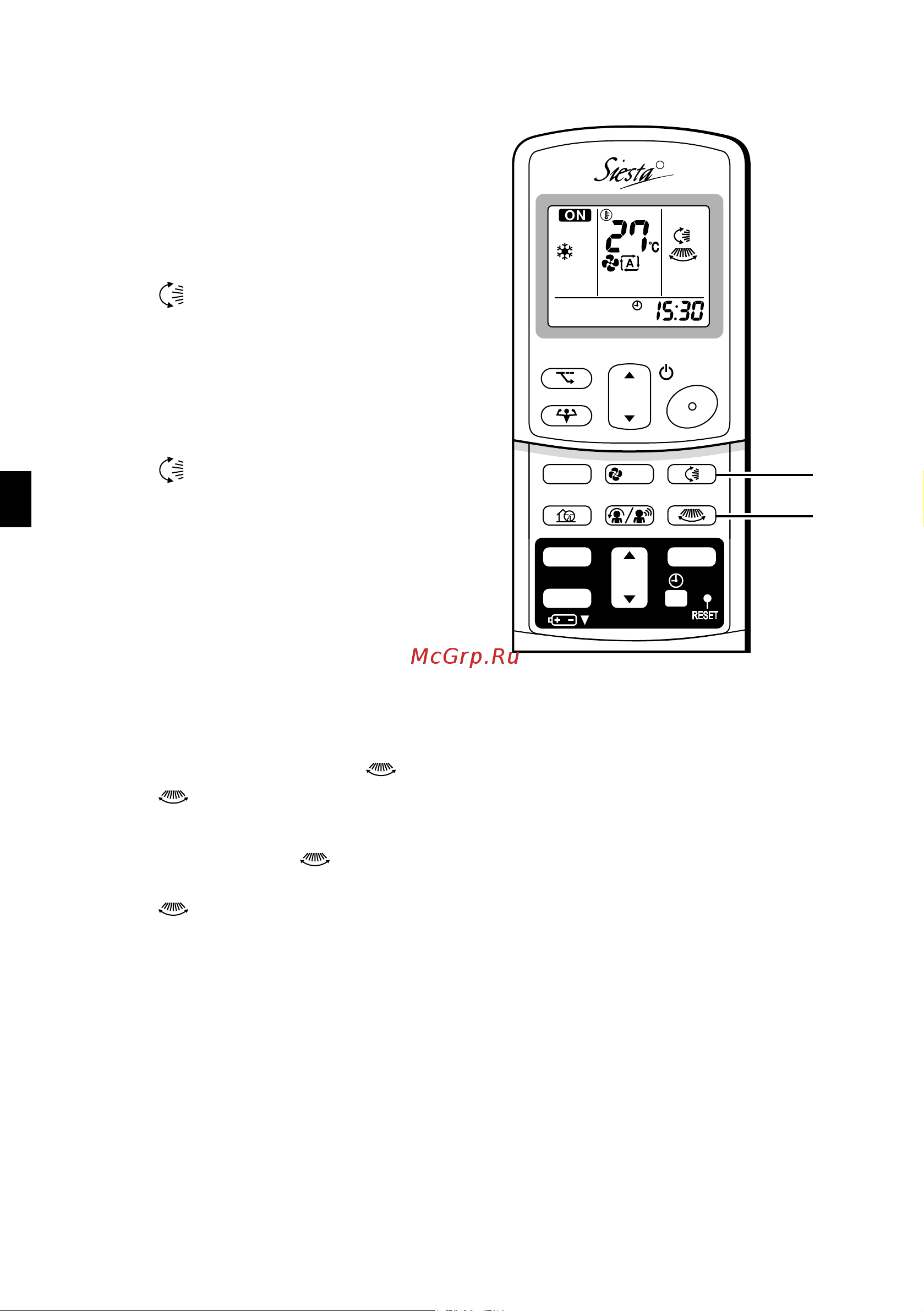

Adjusting the Airflow Direction
You can adjust the airflow direction to increase your comfort.
To adjust the horizontal
blades (flaps)
1. Press “SWING button”.
• “ ” is displayed on the LCD and the flaps
will begin to swing.
2. When the flaps have reached the
desired position, press “SWING
button” once more.
•
The flaps will stop moving.
• “ ” disappears from the LCD.
To adjust the vertical blades (louvers)
3. Press “SWING button ”.
• “ ” is displayed on the LCD.
4. When the louvers have reached the desired position, press the
“SWING button ” once more.
• The louvers will stop moving.
• “ ” disappears from the LCD.
TEMP
ON/OFF
POWERFUL
MODE
FAN
QUIET SWING
SENSOR
COMFORT
ECONO
TIMER
ON
CANCEL
OFF
R
1, 2
3, 4
