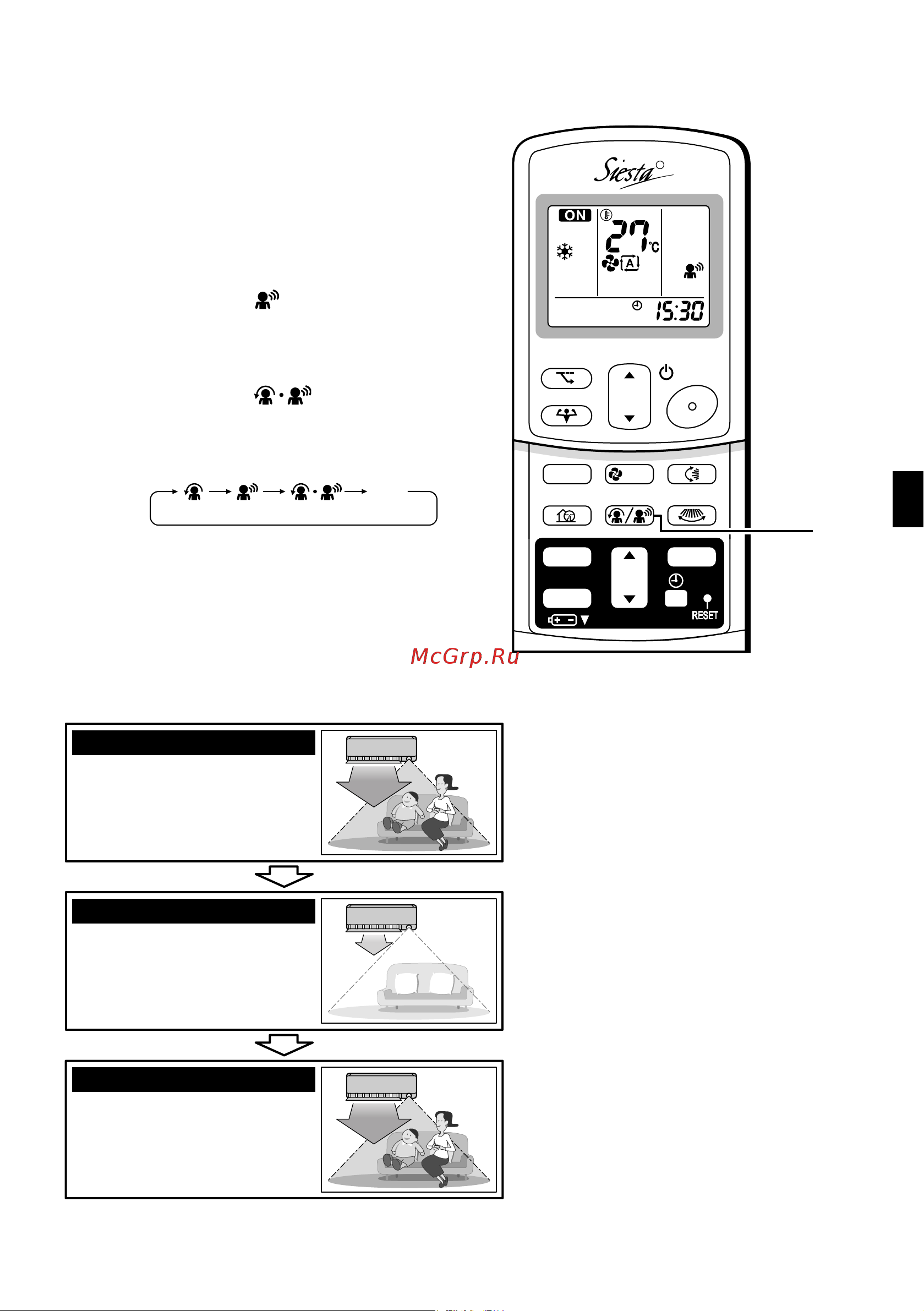

15
INTELLIGENT EYE Operation
“INTELLIGENT EYE” is the infrared sensor which
detects the human movement.
To start INTELLIGENT EYE
operation
1.
Press “COMFORT/SENSOR button”
and select “ ” on the LCD.
• Each time the “COMFORT/SENSOR
button” is pressed a different setting option
is displayed on the LCD.
• By selecting “ ” from the following
icons, the air conditioner will be in COMFORT
AIRFLOW operation combined with
INTELLIGENT EYE operation. (page 16.)
To cancel the INTELLIGENT
EYE operation
2. Press “COMFORT/SENSOR button”.
• Press the button to select “Blank”.
[EX.]
TEMP
ON/OFF
POWERFUL
MODE
FAN
QUIET SWING
SENSOR
COMFORT
ECONO
TIMER
ON
CANCEL
OFF
R
1, 2
Blank
Somebody back in the room
• Back to normal operation.
The air conditioner will return to
normal operation when the sensor
detects the movement of people
again.
When somebody in the room
• Normal operation
The air conditioner is in normal
operation while the sensor is
detecting the movement of people.
When nobody in the room
• 20 min. after, start energy
saving operation.
The set temperature is shifted in
±2ºC steps.
01_EN_3P207037-2D.fm Page 15 Friday, March 13, 2009 9:39 AM
