9

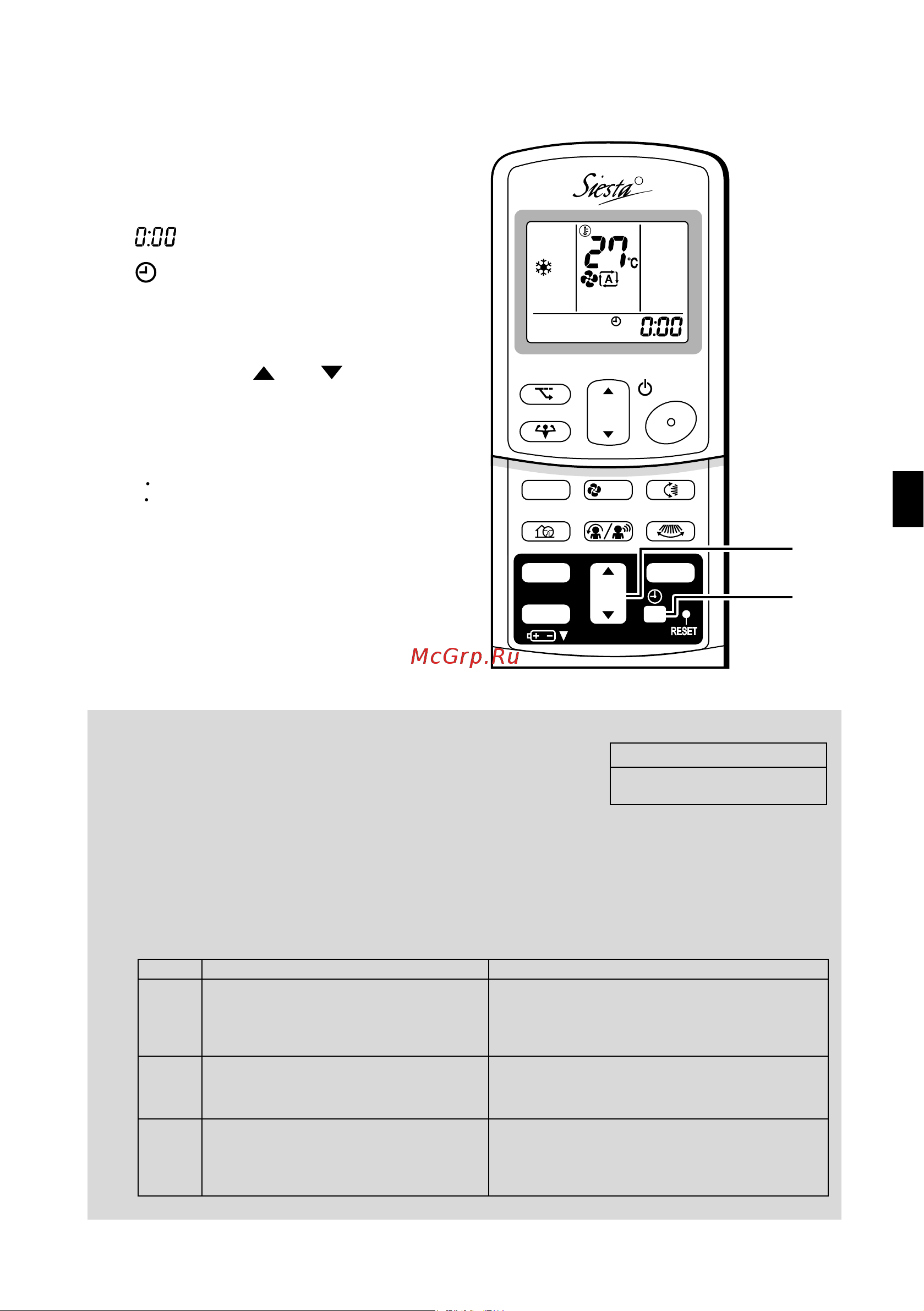

To set the clock
1. Press “CLOCK button”.
is displayed.
blinks.
2. Press “TIMER setting button” to
set the clock to the present time.
Holding down “ ” or “ ” button
rapidly increases or decreases the time
display.
3. Press “CLOCK button”.
blinks.
Turn the breaker ON
•
Turning ON the breaker opens once and
closes the flaps. (This is a normal procedure.)
NOTE
Tips for saving energy
• Be careful not to cool (heat) the room too much.
Keeping the temperature setting at a moderate level helps save energy.
• Cover windows with a blind or a curtain.
Blocking sunlight and air from outdoors increases the cooling (heating) effect.
• Clogged air filters cause inefficient operation and waste energy. Clean them
once in about every two weeks.
Please note
• The outdoor unit consumes some power to have its electric components work even while it is not operating.
Connecting outdoor unit ARXS20/25/35/42 : 1-15W
Other outdoor units : 15-20W
The outdoor unit consumes 40 to 55W of power at the time of compressor preheating.
• If you are not going to use the air conditioner for a long period, for example in spring or autumn, turn the breaker OFF.
• Use the air conditioner in the following conditions.
• The operation of the system outside the above humidity or temperature range may cause a safety device to disable the system.
TEMP
ON/OFF
POWERFUL
MODE
FAN
QUIET SWING
SENSOR
COMFORT
ECONO
TIMER
ON
CANCEL
OFF
R
1, 3
2
Recommended temperature setting
For cooling: 26°C – 28°C
For heating: 20°C – 24°C
Mode Operating conditions If operation is continued out of this range
COOL
Outdoor temperature: 〈2AMX〉 10 to 46°C
〈3AMX〉 –10 to 46°C
〈ARXS〉 –10 to 46°C
Indoor temperature: 18 to 32°C
Indoor humidity: 80% max.
• A safety device may work to stop the operation.
(In multi system, it may work to stop the operation of the out-
door unit only.)
• Condensation may occur on the indoor unit and drip.
HEAT
Outdoor temperature: 〈2AMX〉 –15 to 20°C
〈3AMX〉 –15 to 20°C
〈ARXS〉 –15 to 20°C
Indoor temperature: 10 to 30 °C
• A safety device may work to stop the operation.
DRY
Outdoor temperature: 〈2AMX〉 10 to 46°C
〈3AMX〉 –10 to 46°C
〈ARXS〉 –10 to 46°C
Indoor temperature: 18 to 32°C
Indoor humidity: 80% max.
• A safety device may work to stop the operation.
• Condensation may occur on the indoor unit and drip.
01_EN_3P207037-2D.fm Page 9 Friday, March 13, 2009 9:39 AM
