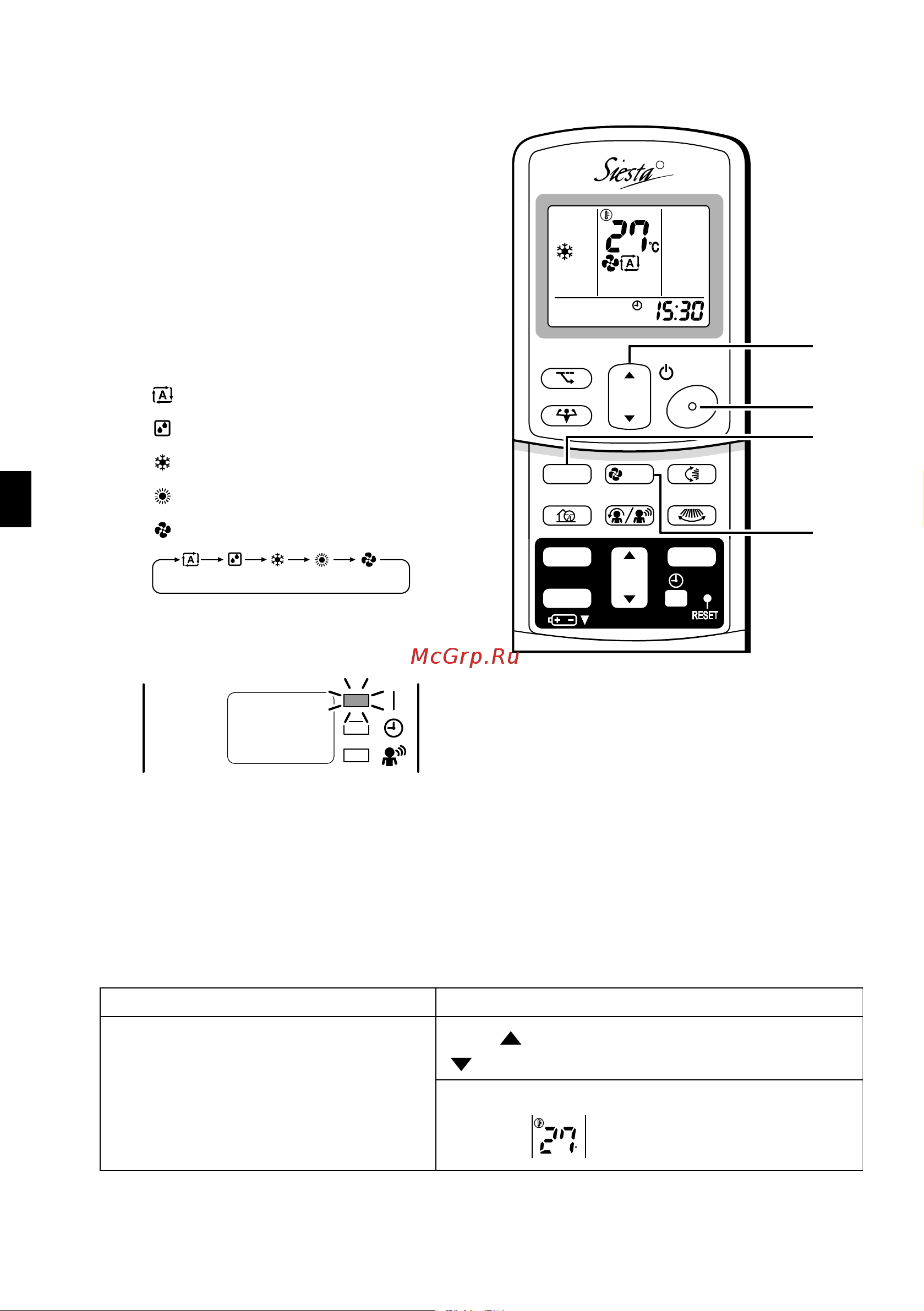

OPERATION
AUTO · DRY · COOL · HEAT · FAN Operation
The air conditioner operates with the operation mode of your
choice.
From the next time on, the air conditioner will operate with the
same operation mode.
To start operation
1. Press “MODE selector button”
and select a operation mode.
• Each pressing of the button advances the
mode setting in sequence.
:AUTO
:DRY
: COOL
:HEAT
:FAN
2. Press “ON/OFF button” .
• The OPERATION lamp lights up.
To stop operation
3. Press “ON/OFF button” again.
•
Then OPERATION lamp goes off.
To change the temperature setting
4. Press “TEMPERATURE adjustment button”.
DRY or FAN mode AUTO or COOL or HEAT mode
The temperature setting is not variable.
Press “ ” to raise the temperature and press
“ ” to lower the temperature.
Set to the temperature you like.
TEMP
ON/OFF
POWERFUL
MODE
FAN
ECONO
QUIET SWING
SENSOR
COMFORT
TIMER
ON
CANCEL
OFF
R
2, 3
1
4
5
C
01_EN_3P207037-2D.fm Page 10 Friday, March 13, 2009 9:39 AM
