Candy CFT610/5S [6/11] Air ventilation setting

Noice: There are 2 methods for ventilation, including ' horizontal ventilation'

and ' vertical ventilation'. Please pay attention to the ventilation method when

installation.

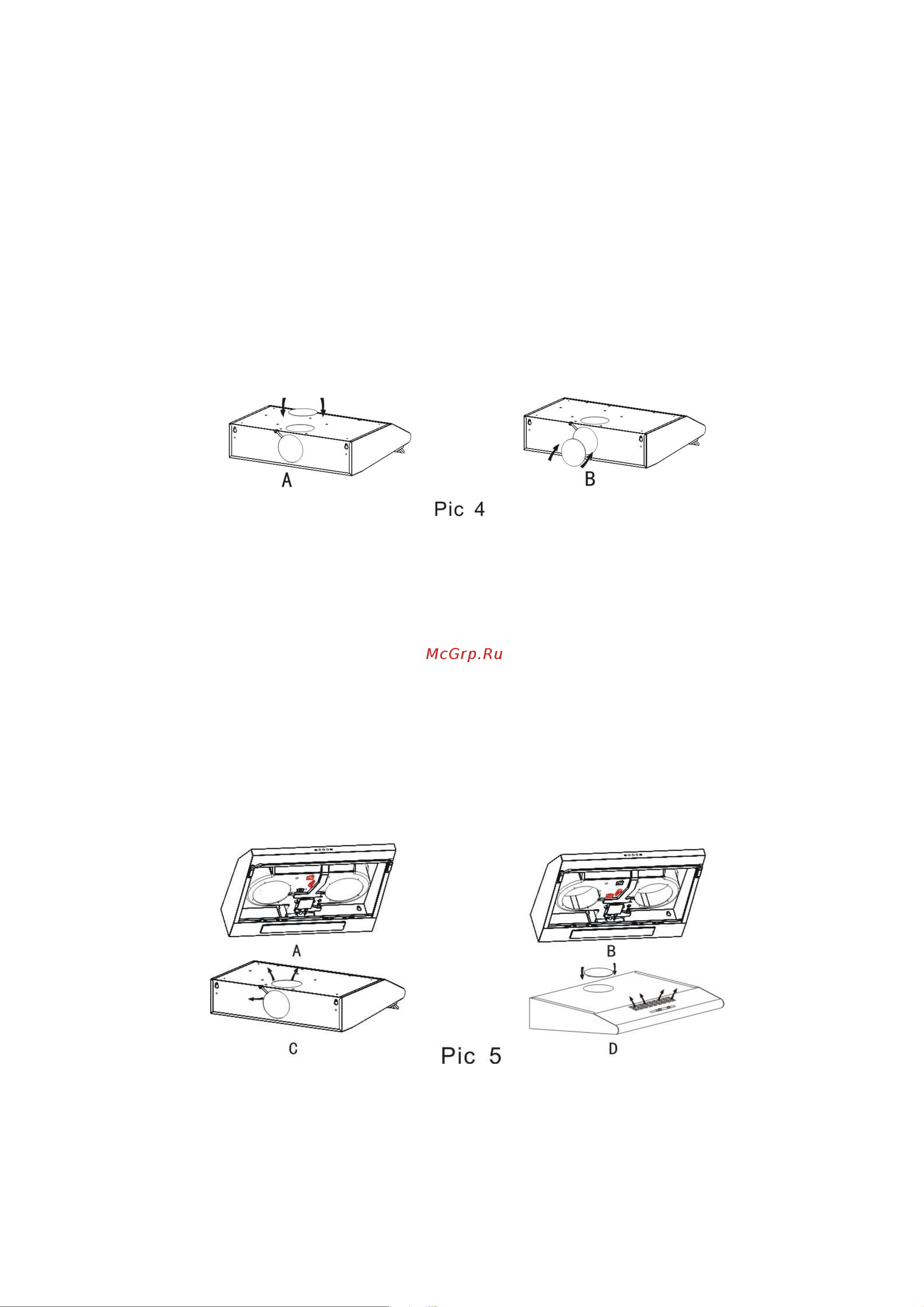

Horizontal ventilation: See Pic 4A, please use the cover to seal the outlet on the

top, then the air can be vented from back.

Vertical ventilation: See Pic 4B, please use the cover to seal the outlet on the

back, then the air can be vented from top.

Air ventilation setting

Outdoor air ventilation: Turn the adjuster to outdoor position(pic.5A), install the

outlet, turn on the cooker hood, then the air will be vented from the outside

outlet.

Indoor air ventilation: Turn the adjuster to indoor position (pic.5B), install the

outlet cover, turn on the cooker hood, then the air can be vented from the

inside outlet.
