![Daikin FTX20GV1B [4/9] Dimensional drawing centre of gravity](/img/pdf.png)
Daikin FTX20GV1B [4/9] Dimensional drawing centre of gravity
![Daikin FTX20GV1B [4/9] Dimensional drawing centre of gravity](/views2/1775600/page4/bg4.png)
3
1
3
• Split Sky Air • Indoor Units
4
• Indoor Units • R-410A • FTX-GV1B

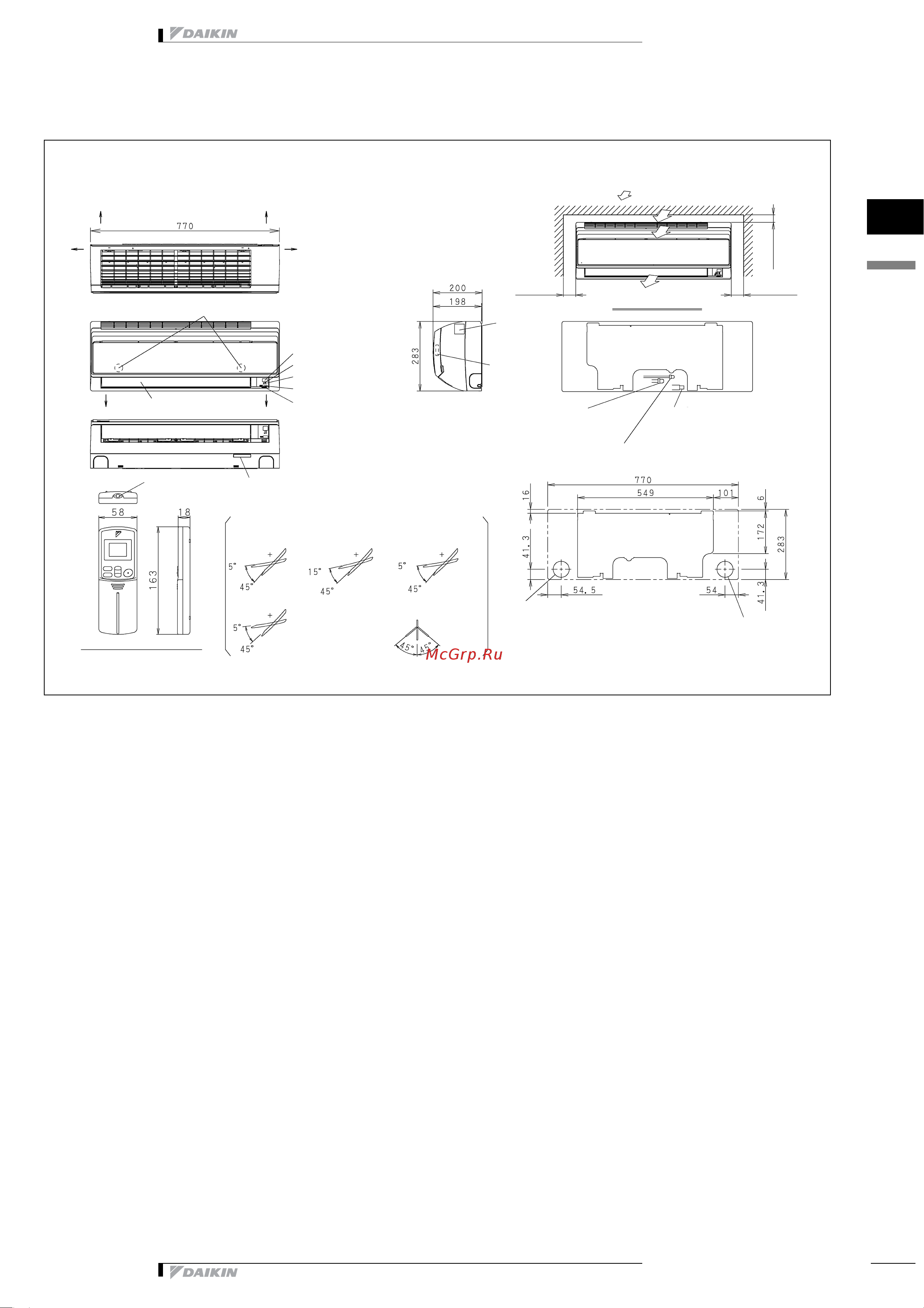

3 Dimensional drawing & centre of gravity
3 - 1 Dimensional drawing
FTX20-35GV
3D058481
The mark (
→
) shows piping direction
Front panel fixing screws ( Inside)
Signal receiver
Operation lamp
Timer lamp
Indoor unit ON/OFF switch
Room temp. thermistor (Inside)
Rear
Air flow (Indoor)
(Space for performance)
Terminal block
with earth
terminal
(Inside)
General rating
name plate
Model name plate
Bottom
Signal transmitter
Right
Flaps
Up/down (Automatic)
Fan
Heating Dry
Right/left (Manual)
50Min.
(Space for maintenance)
50Min.
(Space for maintenance)
30Min.
Including
mounting plate
Gas pipe
Ø
9,5 Cut
(The length of pipe outside the unit:
About 400)
Liquid pipe
Ø
6,4 Cut
(The length of pipe outside
the unit: About 400)
Drain hose
( Connecting part
I.D.
Ø
14
O.D.
Ø
16
The hose length of ouside the unit is about 450)
Wall hole for embedded piping
Ø
65 Hole
Wall hole
Ø
65 Hole
Left
STANDARD LOCATIONS OF WALL HOLES
INFRARED REMOTE CONTROL
(ARC433A89)
BLADE ANGLE
REQUIRED SPACE
Cooling
