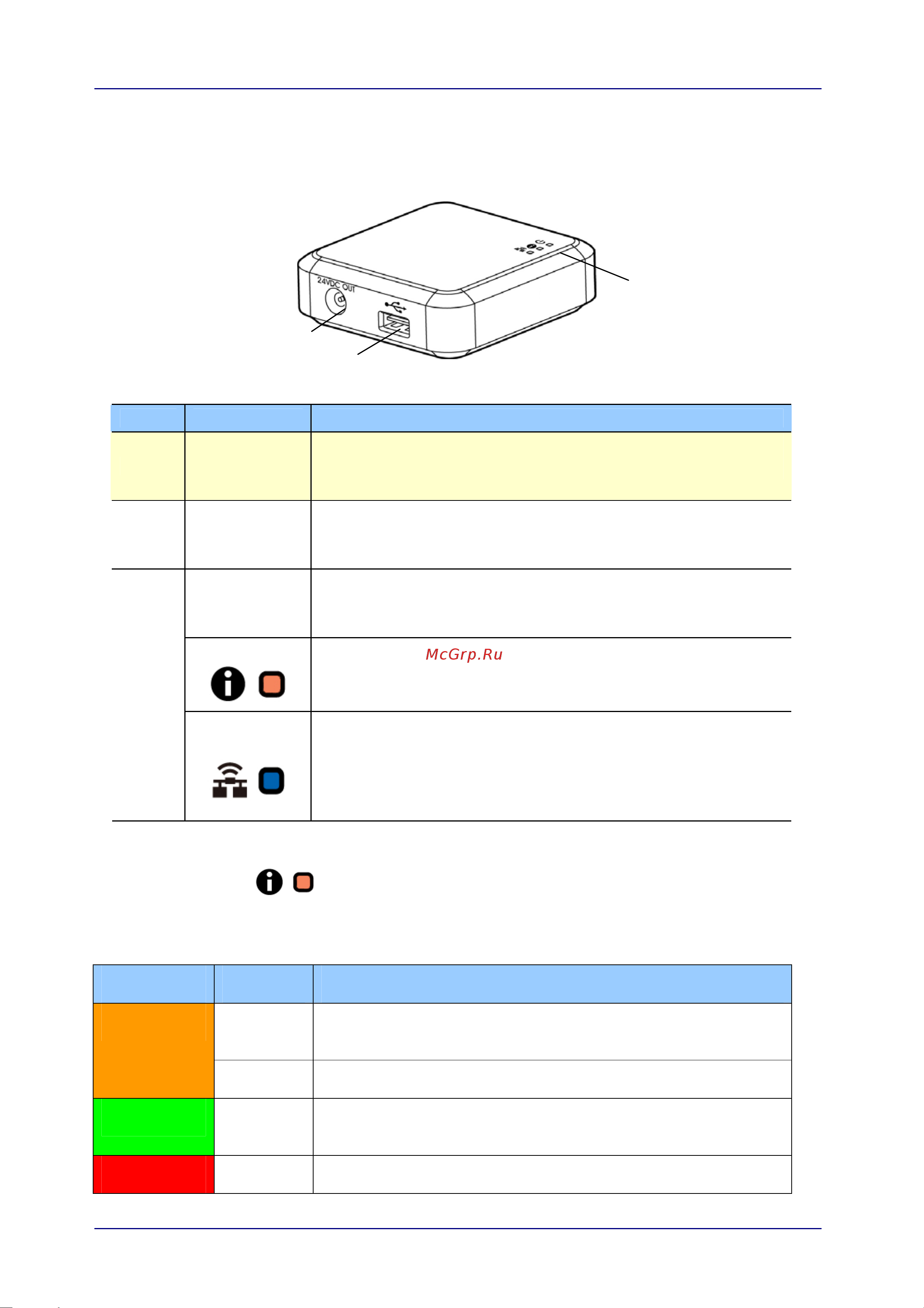

1.3 Ports and LED

Item Name Description

24VDC OUT

Port

Used to connect the power cable (included) to the

scanner.

2 USB Port

Used to connect the USB cable (included) to the scanner.

The USB port is used to transfer data only. It is not able to

supply power.

Power LED Turns green when the box is powered on.

Status LED

Indicates connection mode or operational status.

Wi-Fi/LAN

LED

Available only for the Wi-Fi version.

Status LED Light

The color and flashing frequency indicates the connection type and status.

LED Color Status Description

Solid Wired LAN mode with scanner connecting to the Network

Box

Orange

Blinking Ethernet cable disconnecting to the Network Box

Green Solid Wired LAN mode with scanner disconnecting to the

Network Box

Red Solid Firmware updating






