Daikin RN50E2V1B [10/12] Wiring diagram

Daikin RN60E2V1B [10/12] Wiring diagram
3
1
7
Split Sky Air Outdoor Units 10
Outdoor Units R-410A RN-E2V1B

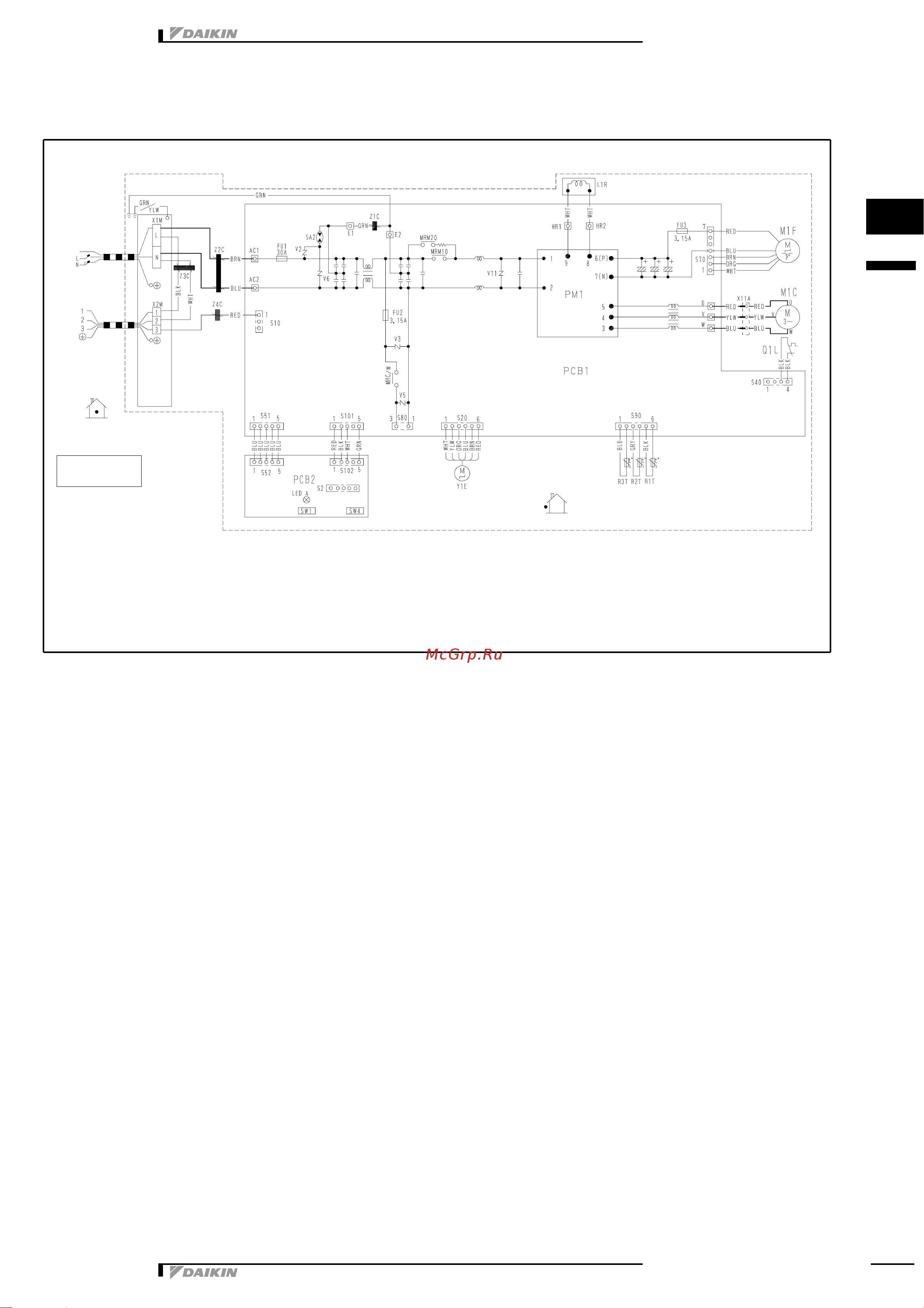

7 Wiring diagram
7 - 1 Wiring diagram
3D050981B
RN50-60E
R
: Protective earth
Z1CZ4C : Ferrite core
X1M, X2M : Terminal strip
Y1E : Electronic expansion valve coil
V2,V3,V5,V6,V11 : Varistor
FU1, FU2, FU3 : Fuse
AC1, AC2
U, V, W, X11A
E1, E2
HR1, HR2 : Connector
MRM10, MRM20,
MRC/W : Magnetic relay
R1TR3T : Thermistor
S2S102 : Connector
LEDA : Pilot lamp
PCB1, PCB2 : Printed circuit board
L : Live
N : Neutral
S1W : Forced operation on/off switch
(SW1)
S4W : Local setting (SW4)
SA2 : Surge arrester
g
Field wiring
Indoor
Outdoor
(outdoor)
(Condenser)
(discharge)
M1C : Compressor motor
M1F : Fan motor
L1R : Reactor
Q1L : Overload protector
PM1 : Power module
PCB1, 2 : Printed circuit board
Steel metal : Terminal strip fixed plate
To indoor unit
Power supply
Sheet metal
