• Indoor Units • R-410A • FTXS-EV1B
1
4
• Split Sky Air • Indoor Units5

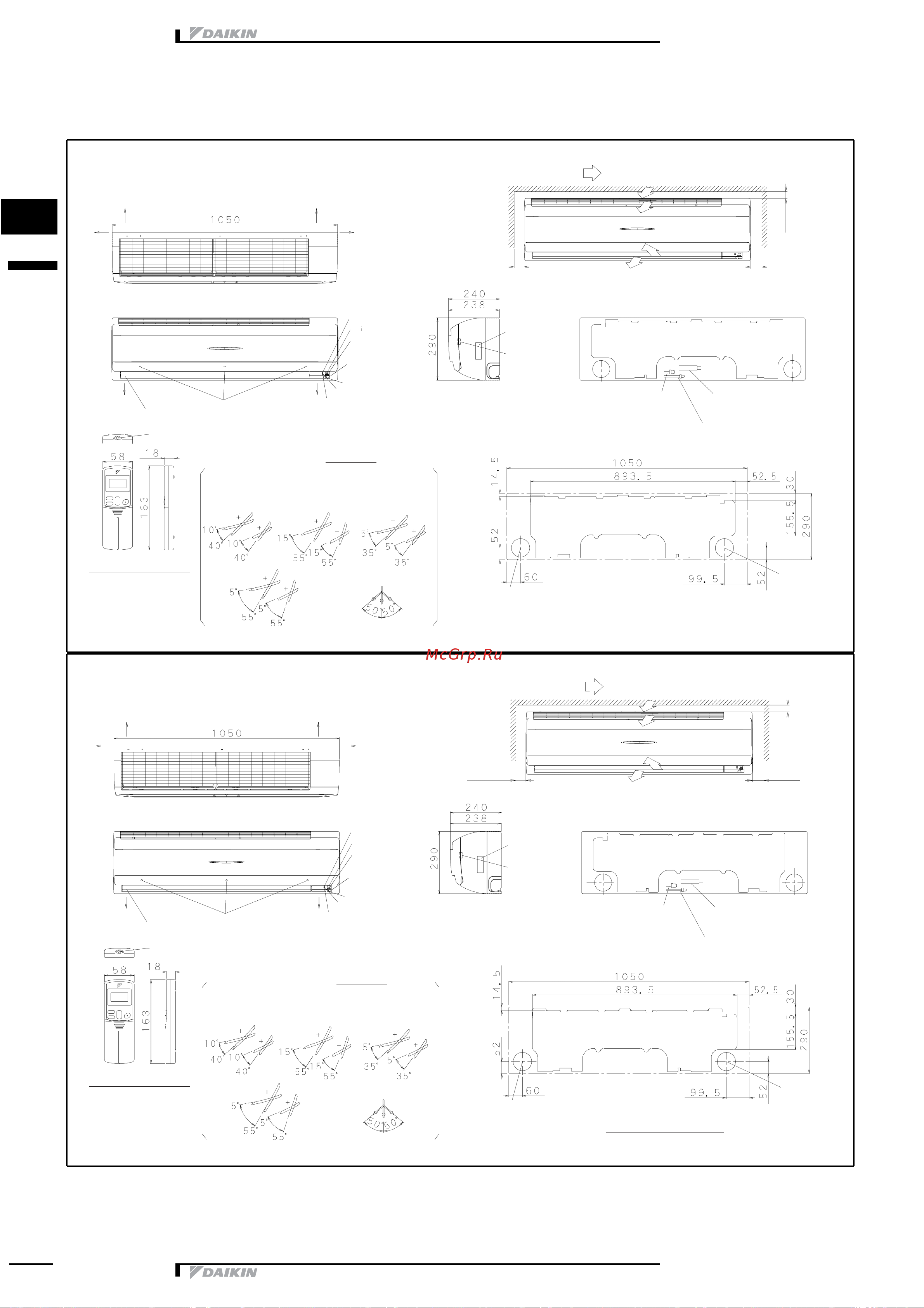

4 Dimensional drawing & centre of gravity
4 - 1 Dimensional drawing
3D051706
FTXS50-60E
unit (mm)
Left
Rear
Right
The mark (Y) shows piping direction
Signal receiver
Flaps
Front grille fixing screws
(inside)
Timer lamp
Operation lamp
Signal
transmitter
Infrared remote control
Horizontal blade
(Automatic)
Blade angle
Vertical blade (Automatic)
Air flow (indoor)
(for performance and maintenance)
(space for
maintenance)
(Including
mounting plate)
Model name plate
Terminal block
with earth
terminal (inside)
(space for
performance)
(space for
maintenance)
Liquid pipe J6.4 CuT (the length of pipe outside
the unit: about 390)
Gas pipe 12.7Cut (The length of pipe
outside the unit: about 340)
Drain hose for VP13 (connecting part
I.D.14.0, O.D.18.0)
(The hose length on the outside of
the unit is approx. 440)
Wall hole for embedded piping
J 80 hole
Wall hole J
80 hole
Standard locations of wall holes
Cooling
Indoor unit ON/OFF
switch
Dry
Room temp.
thermistor (Inside)
(ARC433A21)
Intelligent eye sensor
50 Min.
50 Min.
30 Min.
Required space
Heating
Rear
Fan
Home leave lamp
3D051707
FTXS71E
unit (mm)
Left
Rear
Right
The mark (Y) shows piping direction
Signal receiver
Flaps
Front grille fixing screws
(inside)
Timer lamp
Operation lamp
Signal
transmitter
Infrared remote control
Horizontal blade
(Automatic)
Blade angle
Vertical blade (Automatic)
Air flow (indoor)
(for performance and maintenance)
(space for
maintenance)
(Including
mounting plate)
Model name plate
Terminal block
with earth
terminal (inside)
(space for
performance)
(space for
maintenance)
Liquid pipe J6.4 CuT (the length of pipe outside
the unit: about 390)
Gas pipe J15.9 Cut (the lenght of pipe
outside the unit: about 340)
Drain hose for VP13 (connecting part
I.D.14.0, O.D.18.0)
(The hose length on the outside of
the unit is approx. 440)
Wall hole for embedded piping
J 80 hole
Wall hole J
80 hole
Standard locations of wall holes
Cooling
Indoor unit ON/OFF
switch
Dry
Room temp.
thermistor (Inside)
(ARC433A21)
Intelligent eye sensor
50 Min.
50 Min.
30 Min.
Required space
Heating
Rear
Fan
Home leave lamp
