• Indoor Units • R-410A • FTXS-EV1B
1
7
• Split Sky Air • Indoor Units9
7 Sound data

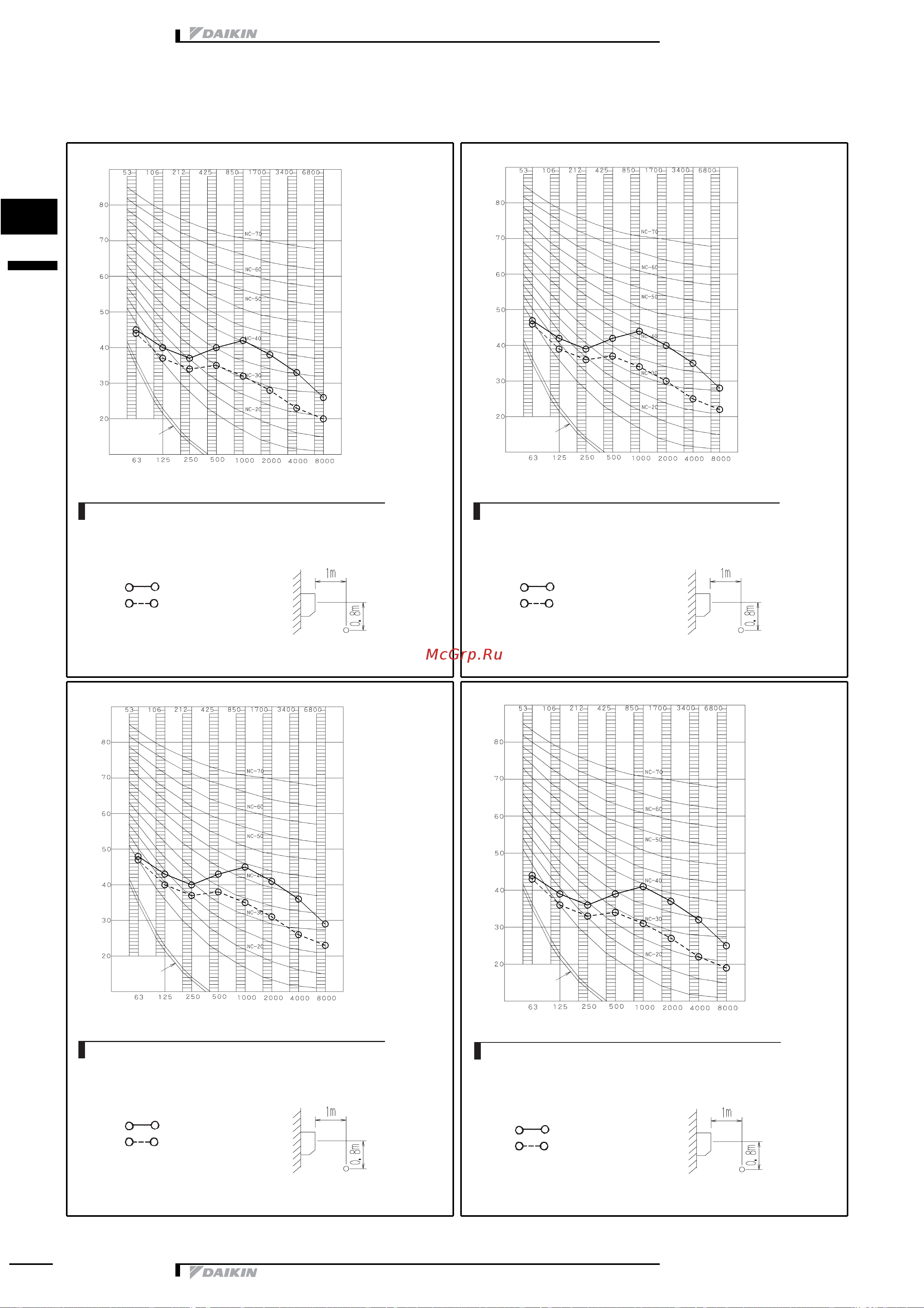

7 - 1 Sound pressure spectrum
3D050979
Octave band sound pressure level
dB:(0dB = 0.0002 μ bar)
Octave band center frequency (Hz)
FTXS50E (Cooling)
approximate threshold
hearing for continuous
noise
Legend
50Hz 220-240V(H)
50Hz 220-240V(L)
NOTE
1 Operation noise differs with operation and
ambient conditions.
Location of microphone
3D051227
Octave band sound pressure level
dB:(0dB = 0.0002 μ bar)
Octave band center frequency (Hz)
FTXS60E (Cooling)
approximate threshold
hearing for continuous
noise
Legend
50Hz 220-240V(H)
50Hz 220-240V(L)
NOTE
1 Operation noise differs with operation and
ambient conditions.
Location of microphone
3D051225
Octave band sound pressure level
dB:(0dB = 0.0002 μ bar)
Octave band center frequency (Hz)
FTXS71E (Cooling)
approximate threshold
hearing for continuous
noise
Legend
50Hz 220-240V(H)
50Hz 220-240V(L)
NOTE
1 Operation noise differs with operation and
ambient conditions.
Location of microphone
3D050979
Octave band sound pressure level
dB:(0dB = 0.0002 μ bar)
Octave band center frequency (Hz)
FTXS50E (Heating)
approximate threshold
hearing for continuous
noise
Legend
50Hz 220-240V(H)
50Hz 220-240V(L)
NOTE
1 Operation noise differs with operation and
ambient conditions.
Location of microphone
