![Daikin FTXS71EV1B [7/19] Ftks71e](/img/pdf.png)
Daikin FTXS71EV1B [7/19] Ftks71e
![Daikin FTXS60EV1B [7/19] Ftks71e](/views2/1776884/page7/bg7.png)
• Indoor Units • R-410A • FTKS-EV1B
1
5
• Split Sky Air • Indoor Units7

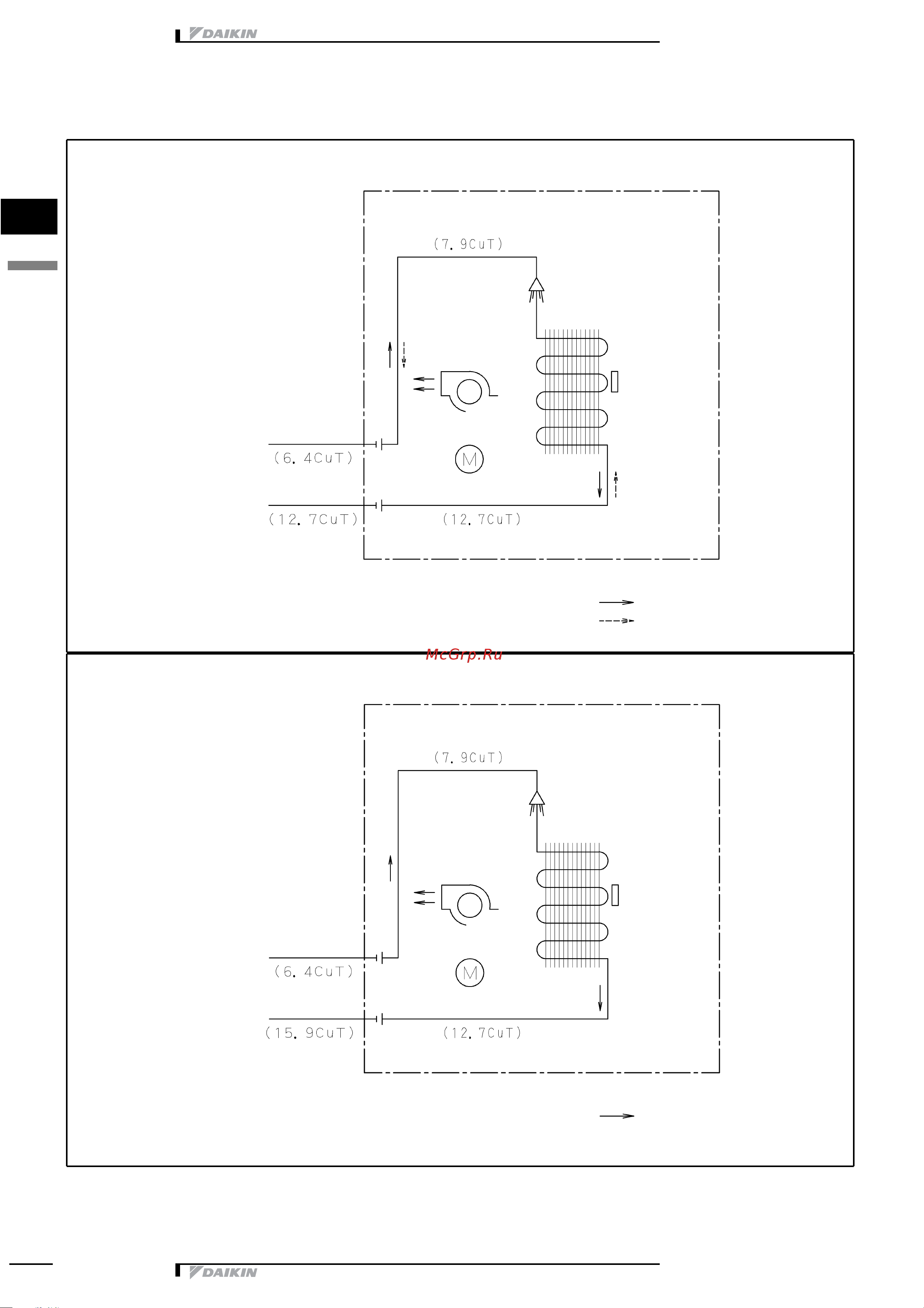

5 Piping diagram
4D040081L
FTK-XS50-60E
Indoor unit
Heat exchanger
Cross flow fan
Fan motor
Field piping
Field piping
Refrigerant flow
Thermistor on heat
exchanger
Cooling
Heating
4D050919B
FTKS71E
Indoor unit
Heat exchanger
Cross flow fan
Fan motor
Field piping
Field piping
Refrigerant flow
Thermistor on heat
exchanger
Cooling
