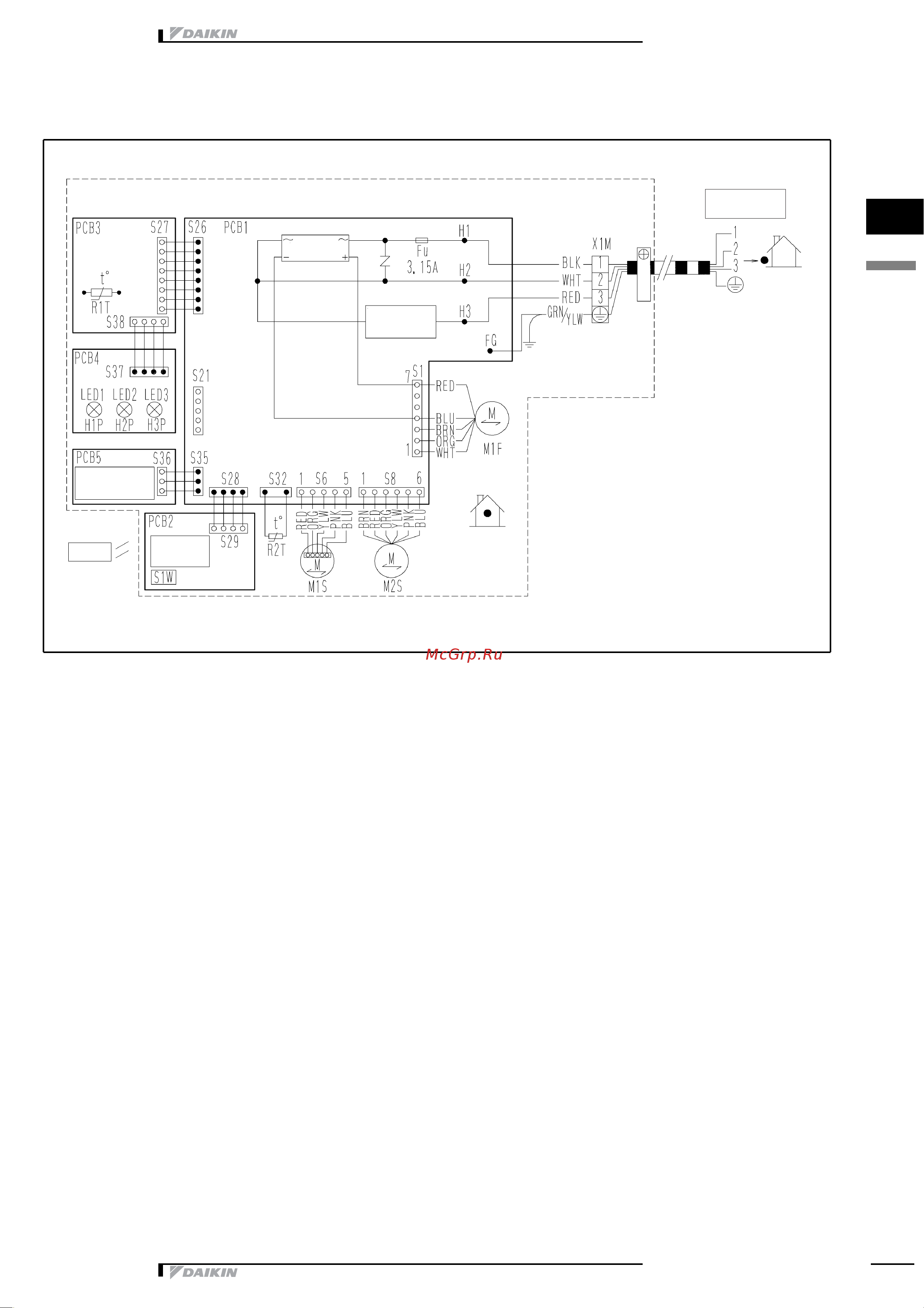

6Wiring diagram

6 - 1 Wiring diagram

3D038530K

FTK-XS50-60-71E

Field wiring

Outdoor

Indoor

Infrared remote

control

: Protective earth

FG : Frame ground

FU : Fuse

H1∼H3 : Harness

H1P∼H3P : Pilot lamp

M1F : Fan motor

M1S,M2S : Swing motor

PCB1∼PCB5 : Printed circuit board

R1T,R2T : Thermistor

S1∼S38 : Connector

S1W : Operation switch

X1M : Terminal strip

Signal receiver

CAUTION

Note that operation will restart

automatically if the main power

supply is turned off and then back

on again.

Rectifier

Transmission circuit
