Daikin RKS50E3V1B [113/150] Removal of outer panels
![Daikin RKS50E3V1B [113/150] Removal of outer panels](/views2/1775096/page113/bg71.png)
SiBE07-618_D Outdoor Unit
Removal Procedure 103
1. Outdoor Unit
Note: Illustrations are for heat pump models as representative.

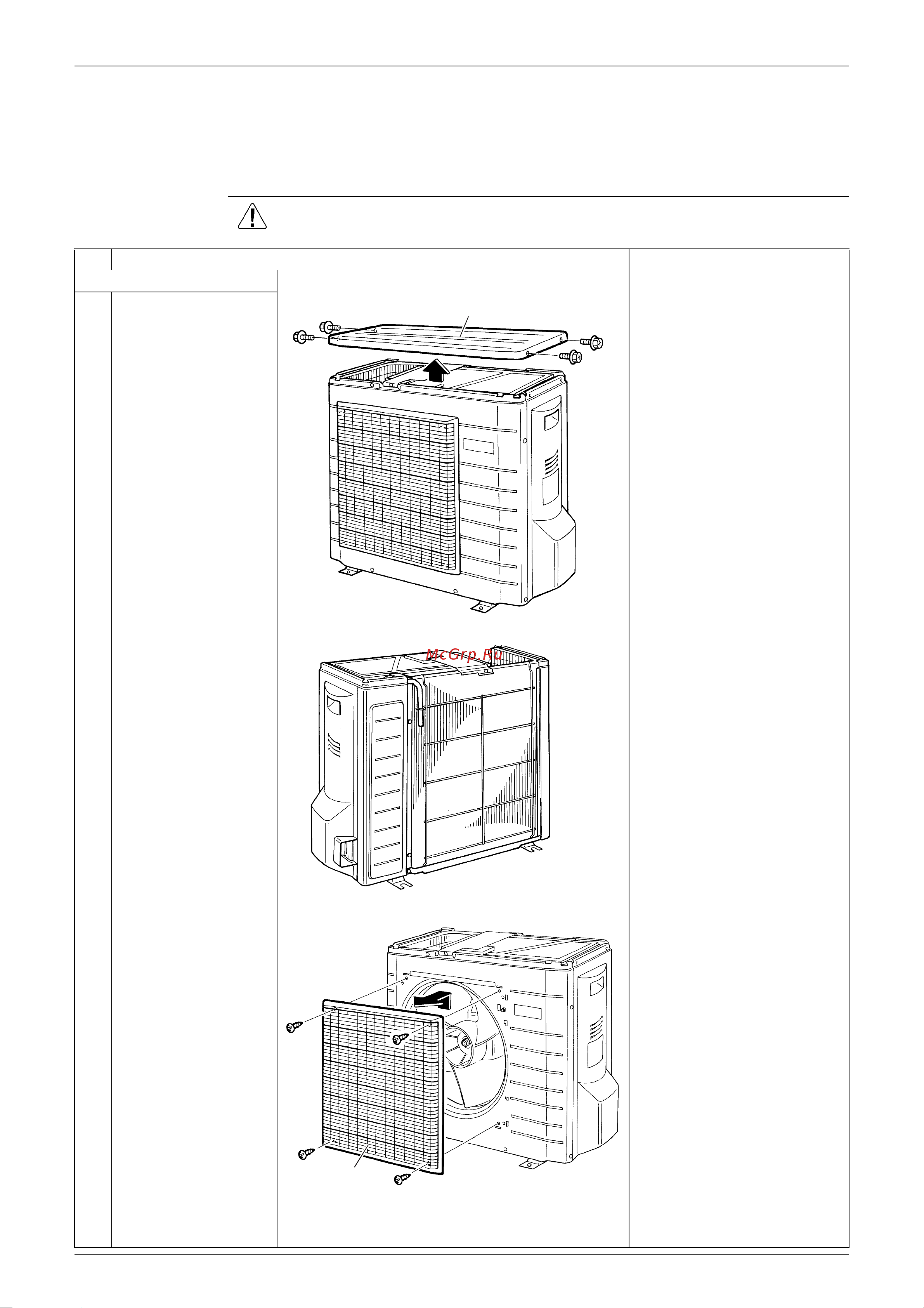

1.1 Removal of Outer Panels
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1. Remove the panels.
Take care not to cut your
finger by the fins of the
outdoor heat exchanger.
1
Remove the 4 screws
and lift the top panel.
2
Remove the 4 screws
and remove the
discharge grille.
Slide the discharge grille
upwards and remove it.
Top panel
(R12283)
(R12315)
Discharge grille
(R5245)
