Outdoor Unit SiBE07-618_D
110 Removal Procedure
6

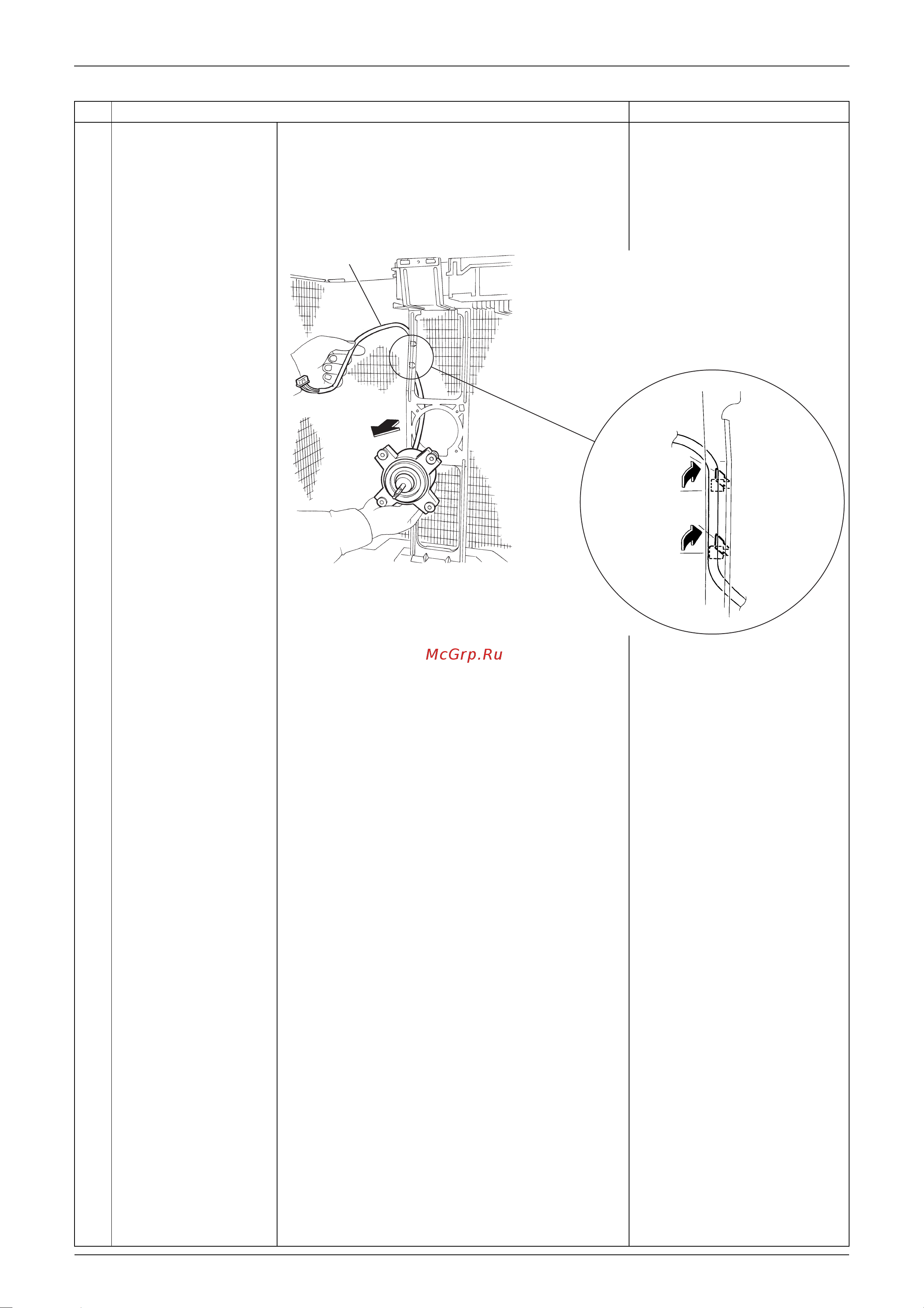

Release the fan motor
lead wire from the 2
hooks and pull the fan
motor out.
When reassembling, put the
fan motor lead wire through
the back of the fan motor (so
as not to be entangled with
the outdoor fan).
Step
Procedure Points
(R5265)
Fan motor lead wire
