Si04-703A Outdoor Unit
Removal Procedure 167
4

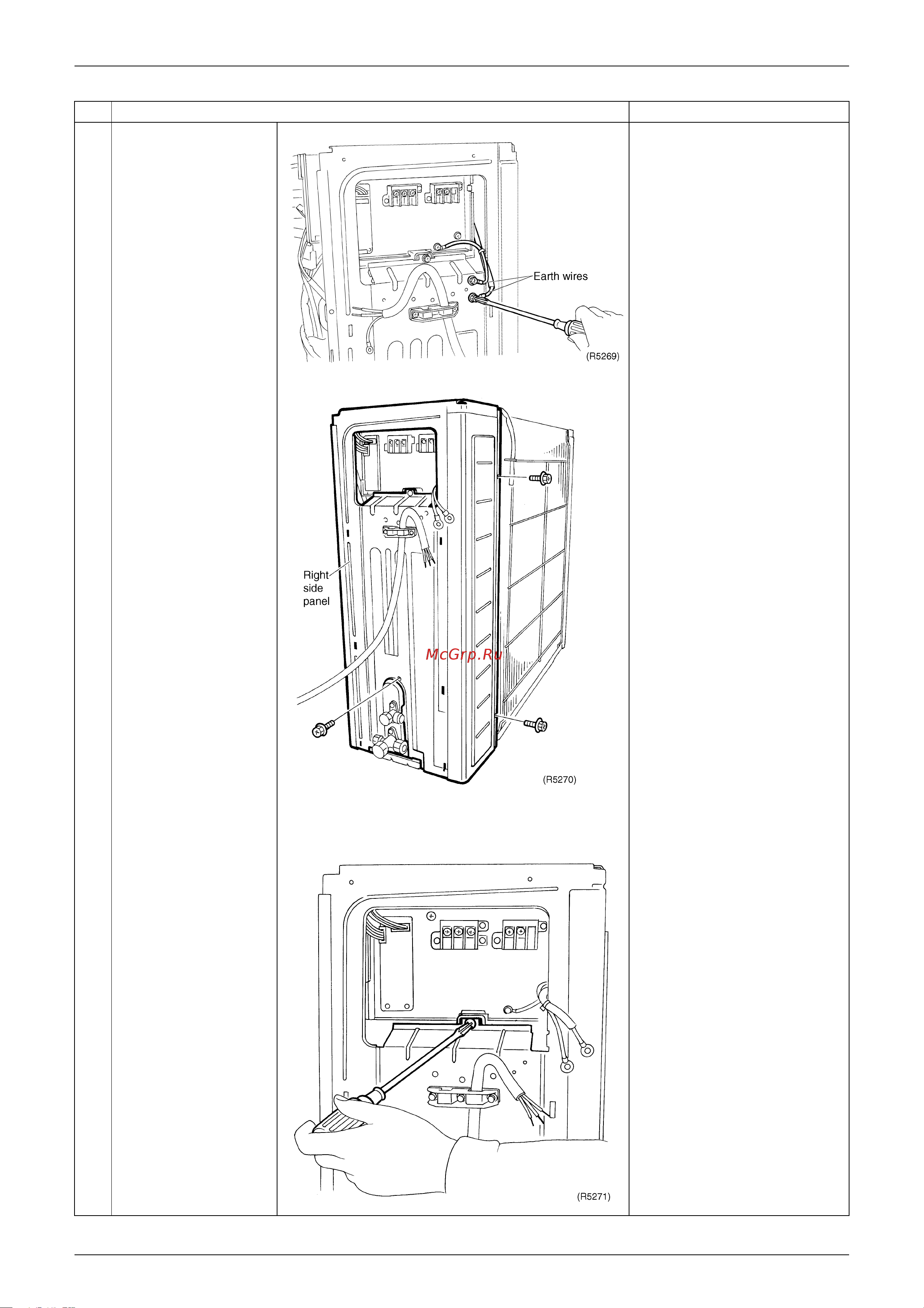

Disconnect the 2 earth
wires.
5
Loosen the 3 screws of
the right side panel.
6
Loosen the fixing screw
of the electrical box.
