Daikin RXS71FVMA [213/244] Lift up and remove the pcb
![Daikin RXS71FVMA [213/244] Lift up and remove the pcb](/views2/1778534/page213/bgd5.png)
Outdoor Unit Si04-703A
202 Removal Procedure
8

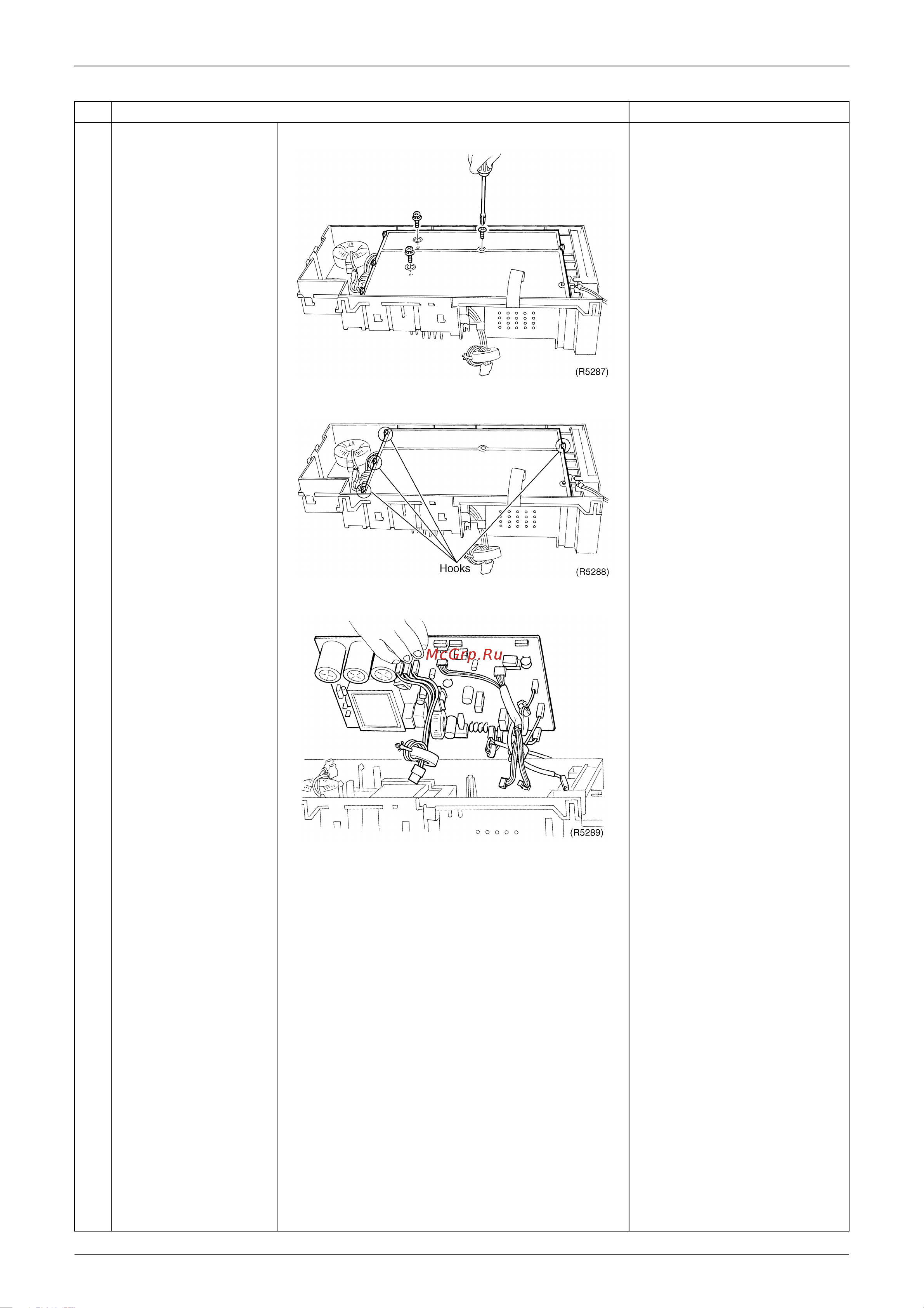

Loosen the 3 fixing
screws for the main
PCB.
9
Undo the 4 hooks.
10
Lift up and remove the
PCB.
