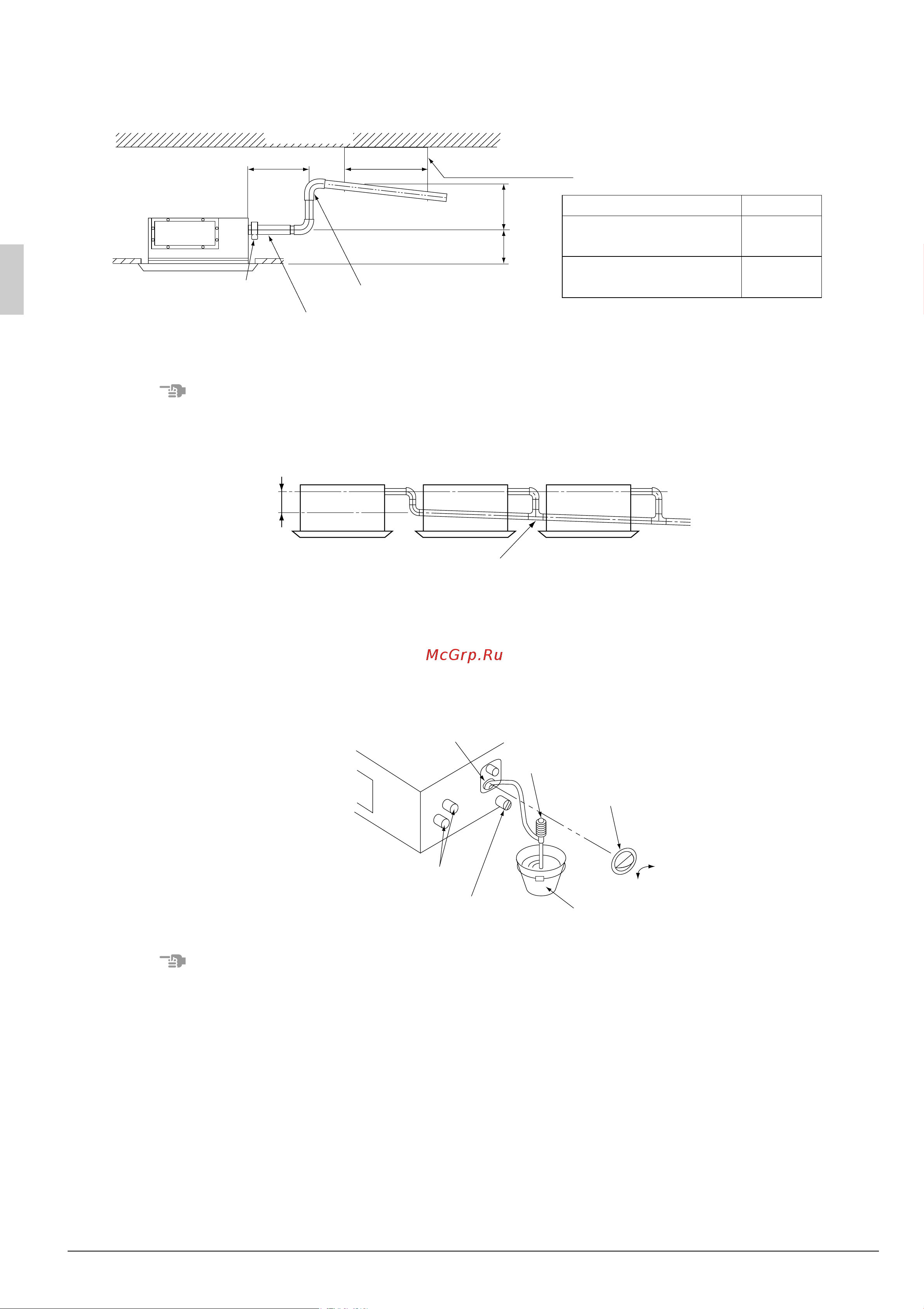

<PRECAUTIONS FOR DRAIN RAISING PIPING>
• Install the drain raising pipes at a height of less than 250 mm.
• Install the drain raising pipes at a right angle to the indoor unit and no more than 300 mm from the unit.
NOTE
• To ensure no excessive pressure is applied to the included drain hose (3), do not bend or twist when
installing. (This may cause leakage.)
• If converging multiple drain pipes, install according to the procedure shown below.
Select converging drain pipes whose gauge is suitable for the operating capacity of the unit.
2. After piping work is finished, check if drainage flows smoothly.
• Open the water inlet lid, add approximately 1000 cc of water gradually and check drainage flow.
(Refer to Fig. 16)
NOTE
• Use the drain outlet for maintenance to drain water from the drain pan.
WHEN ELECTRIC WIRING WORK IS FINISHED
• Check drainage flow during cool running, explained in the section entitled. “12. TEST OPERATION”
(3) Drain hose(attached)
Drain raising pipe
(Field supplied parts)
Hanging bracket
(1) Metal clamp
(attached)
1~1.5m
300 mm or less
Adjustable (0~250mm)
Fig. 14
A
Ceiling slab
A
350 - 530
275
When canvas duct
is installed
When decoration panel
is directly installed
≥
100 mm
T-joint converging drain pipes
Fig. 15
Water inlet
Refrigerant pipes
Drain outlet for maintenance
(with rubber plug)
Bucket
Close
Open
Water inlet lid
Portable pump
Fig. 16
