Daikin FBQ71BVL [15/23] Connect wires of the same gauge to both side good

English 14

Observe the notes mentioned below when wiring to the terminal block for wiring the units.

CAUTION

• When clamping wiring, use the included clamping material to prevent outside pressure being exerted on

the wiring connections and clamp firmly. When doing the wiring, make sure the wiring is neat and does not

cause the control box lid to stick up, then close the cover firmly.

• When attaching the control box lid, make sure you do not pinch any wires.

• After all the wiring connections are done, fill in any gaps in the through holes with putty or insulation (pro-

cured locally) to prevent small animals and insects from entering the unit from outside. (If any do get in, they

• Observe the notes when wiring to the terminal block for wiring the units.

(Use a round crimp-style terminal with insulation sleeve for connection to the terminal block for wiring the

side as shown in Fig. 20.)

• In wiring, make certain that prescribed wires are used, carry out complete connections, and fix the wires so

• Use the correct screwdriver for tightening the terminal screws. If the blade of screwdriver is too small, the

head of the screw might be damaged, and the screw will not be properly tightened.

• If the terminal screw are tightened too hard, screws might be damaged.

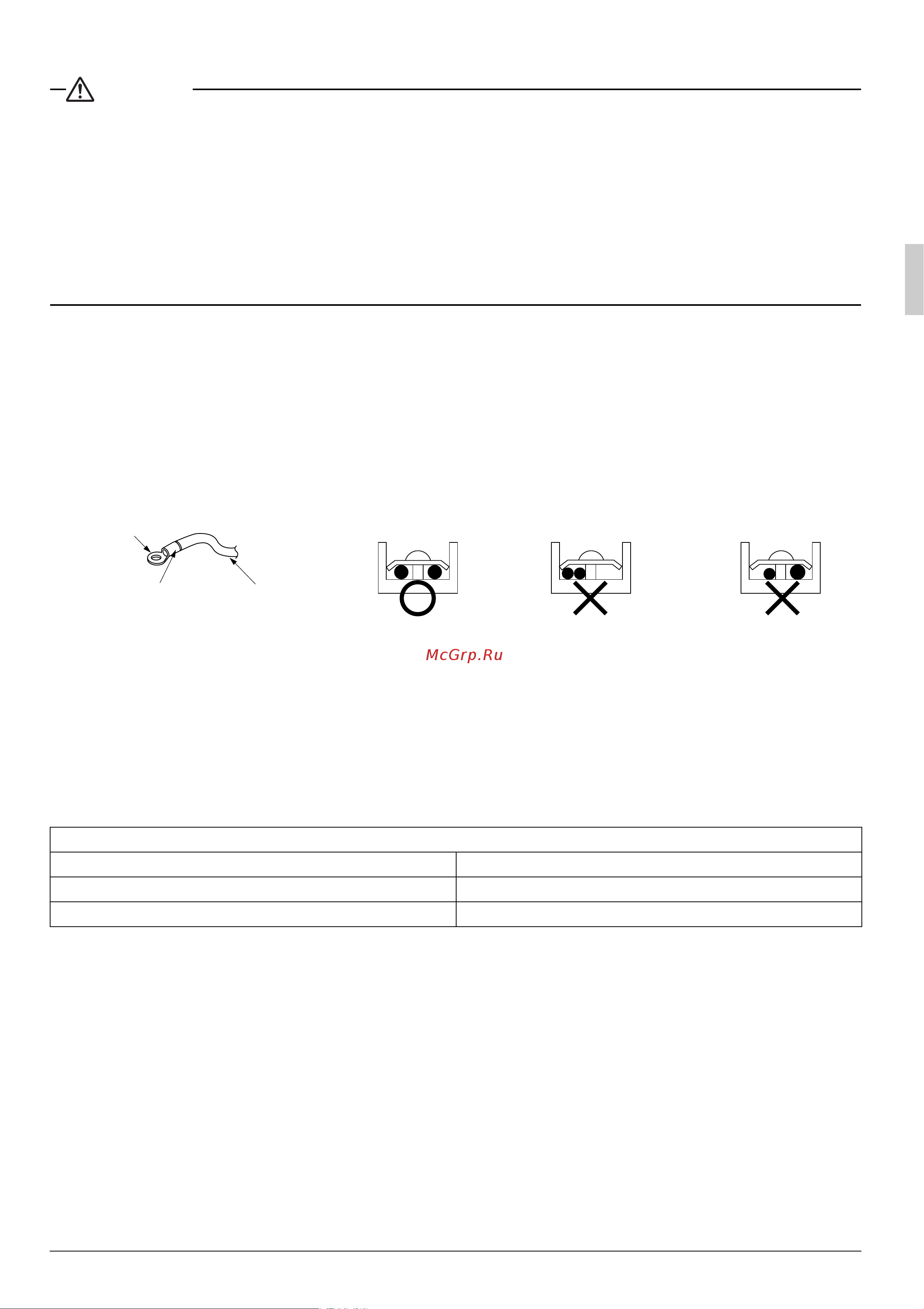

same gauge to both

side. (GOOD)

of the same gauge to

one side.(WRONG)

wires of different

gauges.(WRONG)
