Indoor Unit SiBE04-302
132 Removal Procedure
3

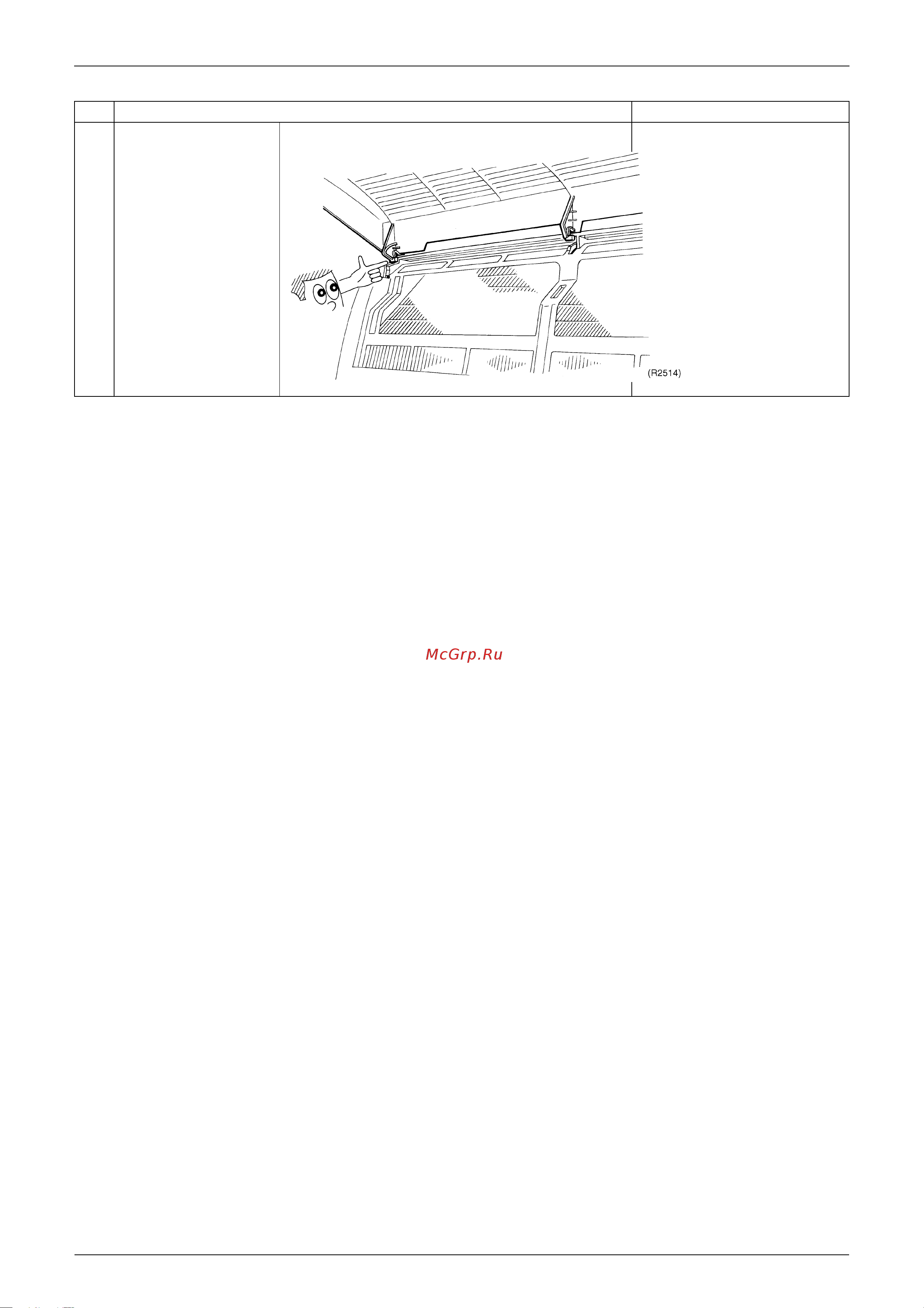

When restoring the air
filter, make sure that
the projection parts on
the panel are in the
guide groove, and then
shut the panel.
