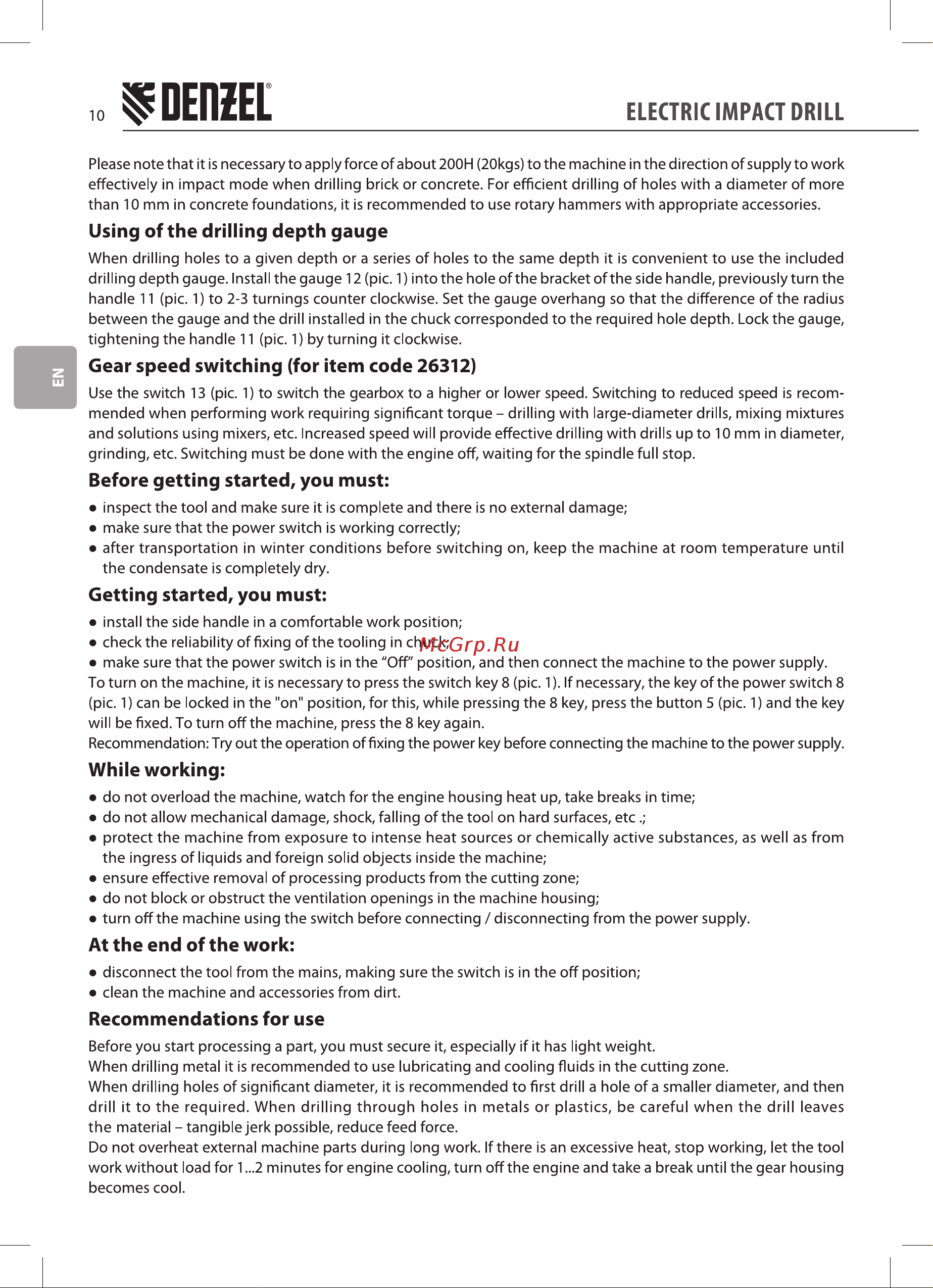

DEnZEL ELECTRIC IMPACT DRILL Please note that it is necessary to apply force of about 200H 20kgs to the machine in the direction of supply to work effectively in impact mode when drilling brick or concrete For efficient drilling of holes with a diameter of more than 10 mm in concrete foundations it is recommended to use rotary hammers with appropriate accessories Using of the drilling depth gauge When drilling holes to a given depth or a series of holes to the same depth it is convenient to use the included drilling depth gauge Install the gauge 12 pic 1 into the hole of the bracket of the side handle previously turn the handle 11 pic 1 to 2 3 turnings counter clockwise Set the gauge overhang so that the difference of the radius between the gauge and the drill installed in the chuck corresponded to the required hole depth Lock the gauge tightening the handle 11 pic 1 by turning it clockwise Gear speed switching for item code 26312 Use the switch 13 pic 1 to switch the gearbox to a higher or lower speed Switching to reduced speed is recom mended when performing work requiring significant torque drilling with large diameter drills mixing mixtures and solutions using mixers etc Increased speed will provide effective drilling with drills up to 10 mm in diameter grinding etc Switching must be done with the engine off waiting for the spindle full stop Before getting started you must inspect the tool and make sure it is complete and there is no external damage make sure that the power switch is working correctly after transportation in winter conditions before switching on keep the machine at room temperature until the condensate is completely dry Getting started you must install the side handle in a comfortable work position check the reliability of fixing of the tooling in chuck make sure that the power switch is in the Off position and then connect the machine to the power supply To turn on the machine it is necessary to press the switch key 8 pic 1 If necessary the key of the power switch 8 pic 1 can be locked in the on position for this while pressing the 8 key press the button 5 pic 1 and the key will be fixed To turn off the machine press the 8 key again Recommendation Try out the operation of fixing the power key before connecting the machine to the power supply While working do not overload the machine watch for the engine housing heat up take breaks in time do not allow mechanical damage shock falling of the tool on hard surfaces etc protect the machine from exposure to intense heat sources or chemically active substances as well as from the ingress of liquids and foreign solid objects inside the machine ensure effective removal of processing products from the cutting zone do not block or obstruct the ventilation openings in the machine housing turn off the machine using the switch before connecting I disconnecting from the power supply At the end of the work disconnect the tool from the mains making sure the switch is in the off position clean the machine and accessories from dirt Recommendations for use Before you start processing a part you must secure it especially if it has light weight When drilling metal it is recommended to use lubricating and cooling fluids in the cutting zone When drilling holes of significant diameter it is recommended to first drill a hole of a smaller diameter and then drill it to the required When drilling through holes in metals or plastics be careful when the drill leaves the material tangible jerk possible reduce feed force Do not overheat external machine parts during long work If there is an excessive heat stop working let the tool work without load for 1 2 minutes for engine cooling turn off the engine and take a break until the gear housing becomes cool
