• Split Sky Air • Indoor Units
21
• Indoor Units • Cooling Only/Heat Pump • FCQH-D8VEB
9 Air flow pattern
FCQH125D8
4D057216

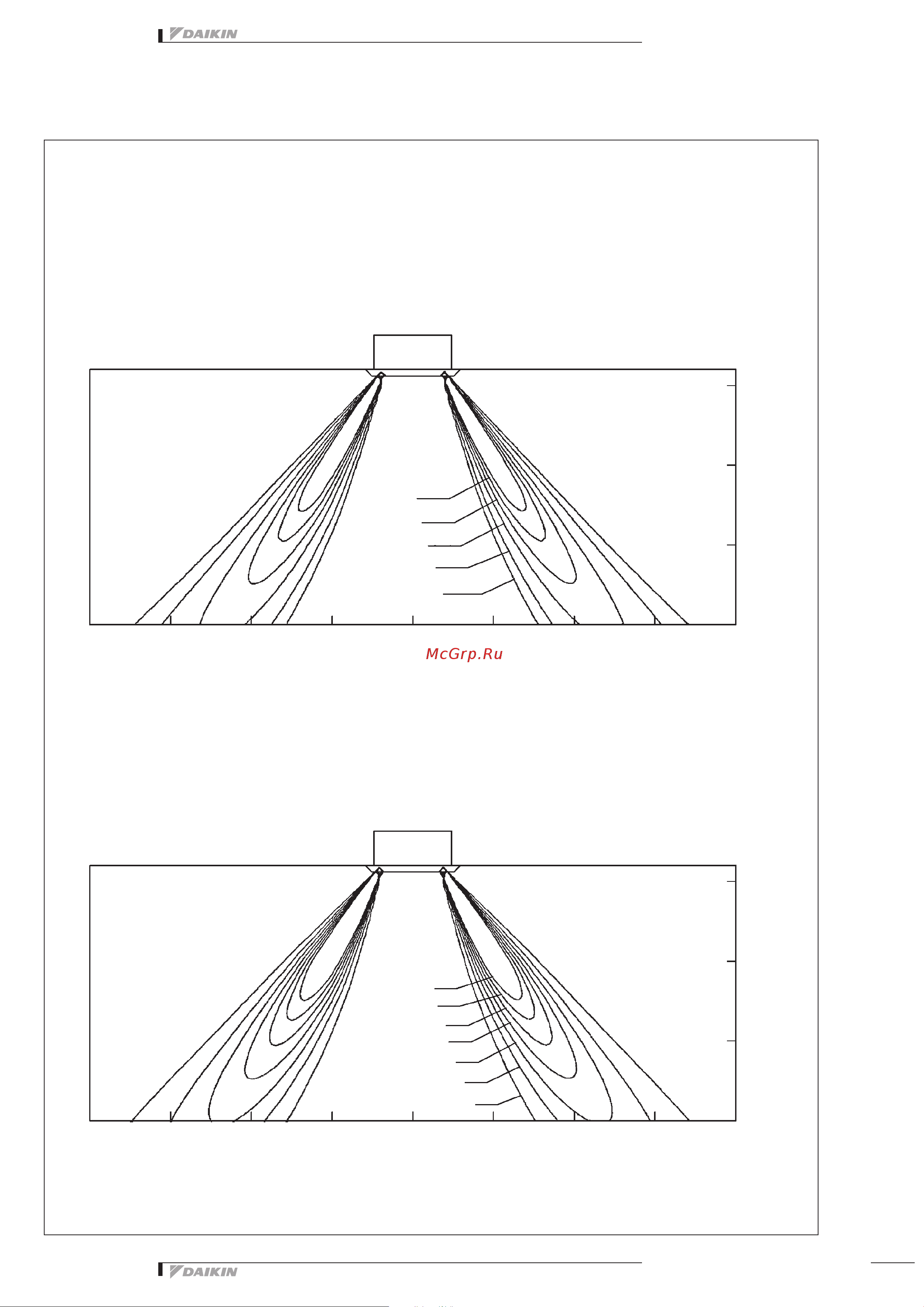

Heating air temperature distribution
All round air discharge, air flow direction: horizontal
Heating air velocity distribution
All round air discharge, air flow direction: horizontal
4m 3m2m1m 0m 1m2m3m 4m
4m 3m2m1m 0m 1m2m3m 4m
2.0m/s
1.5m/s
1.0m/s
0.5m/s
26°C
3m
2m
1m
0m
24°C
22°C
23°C
25°C
27°C
28°C
0.25m/s
3.2m
3m
2m
1m
0m
3.2m
