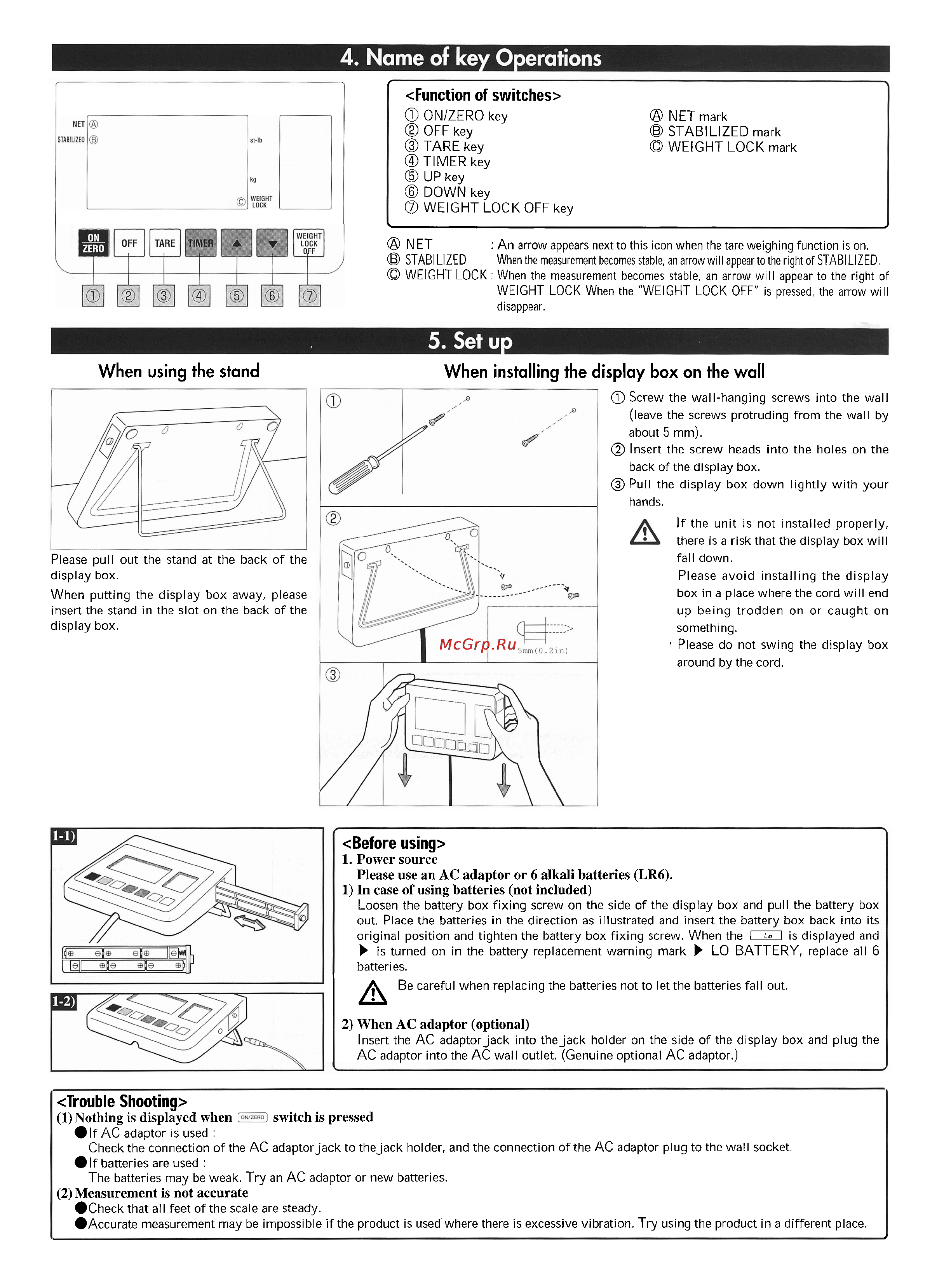

Tanita WB-100S MA [4/8] When installing the display box on the wall
![Tanita WB-100S MA [4/8] When installing the display box on the wall](/views2/1078138/page4/bg4.png)
@
NET
:
An arrow appears next to th~s Icon when the tare weigh~ng functlon
IS
on.
@
STABILIZED
When the measurement becomes stable, an arrow wlll appear to the rlght of STABILIZED.
0
WEIGHT LOCK When the measurement becomes stable, an arrow w~ll appear to the rlght of
WEIGHT LOCK When the "WEIGHT LOCK OFF"
IS
pressed, the arrow
will
d~sappear
r
<Function of switches>
a
ONIZERO key
@
NET mark
@
OFF key
@
STABILIZED mark
@
TARE key
0
WEIGHT LOCK mark
@
TIMER key
a
UP key
@
DOWN key
a
WEIGHT LOCK OFF key
\
#
When using the stand
When installing the display box on the wall
Please pull out the stand at the back of the
display box.
When putting the display box away, please
insert the stand in the slot on the back of the
display box.
a
Screw the wal l-hanging screws into the wall
(leave the screws protruding from the wall by
about
5
mm).
@
Insert the screw heads into the holes on the
back of the display box.
@Pull the display box down lightly with your
hands.
If
the unit is not installed properly,
there is a risk that the display box will
fall down.
Please avoid installing the display
box in a place where the cord will end
up being trodden on or caught on
something.
S
Please do not swing the display box
around by the cord.
<Before using>
1. Power source
Please use an
AC
adaptor or 6 alkali batteries (LR6).
1) In case of using batteries (not included)
Loosen the battery box fixing screw on the side of the display box and pull the battery box
out. Place the batteries in the direction as illustrated and insert the battery box back into its
original position and tighten the battery box fixing screw.
When the
i
is displayed and
b
is turned on in the battery replacement warning mark
b
L0
BATTERY, replace all
6
batteries.
1
A
Be careful when replacing the batteries not to let the batteries fall out.
2)
When
AC
adaptor (optional)
Insert the AC adaptorjack into the jack holder on the side of the display box and plug the
AC adaptor into the
AC wall outlet. (Genuine optional AC adaptor.)
<Trouble Shooting>
(1)
Nothing is displayed when
switch is pressed
.If AC adaptor is used
:
Check the connection of the AC adaptorjack to thejack holder, and the connection of the AC adaptor plug to the wall socket.
.If batteries are used
:
The batteries may be weak. Try an AC adaptor or new batteries.
(2)
Measurement is not accurate
.Check that all feet of the scale are steady.
.Accurate measurement may be impossible
if
the product is used where there is excessive vibration. Try using the product in a different place.
I
