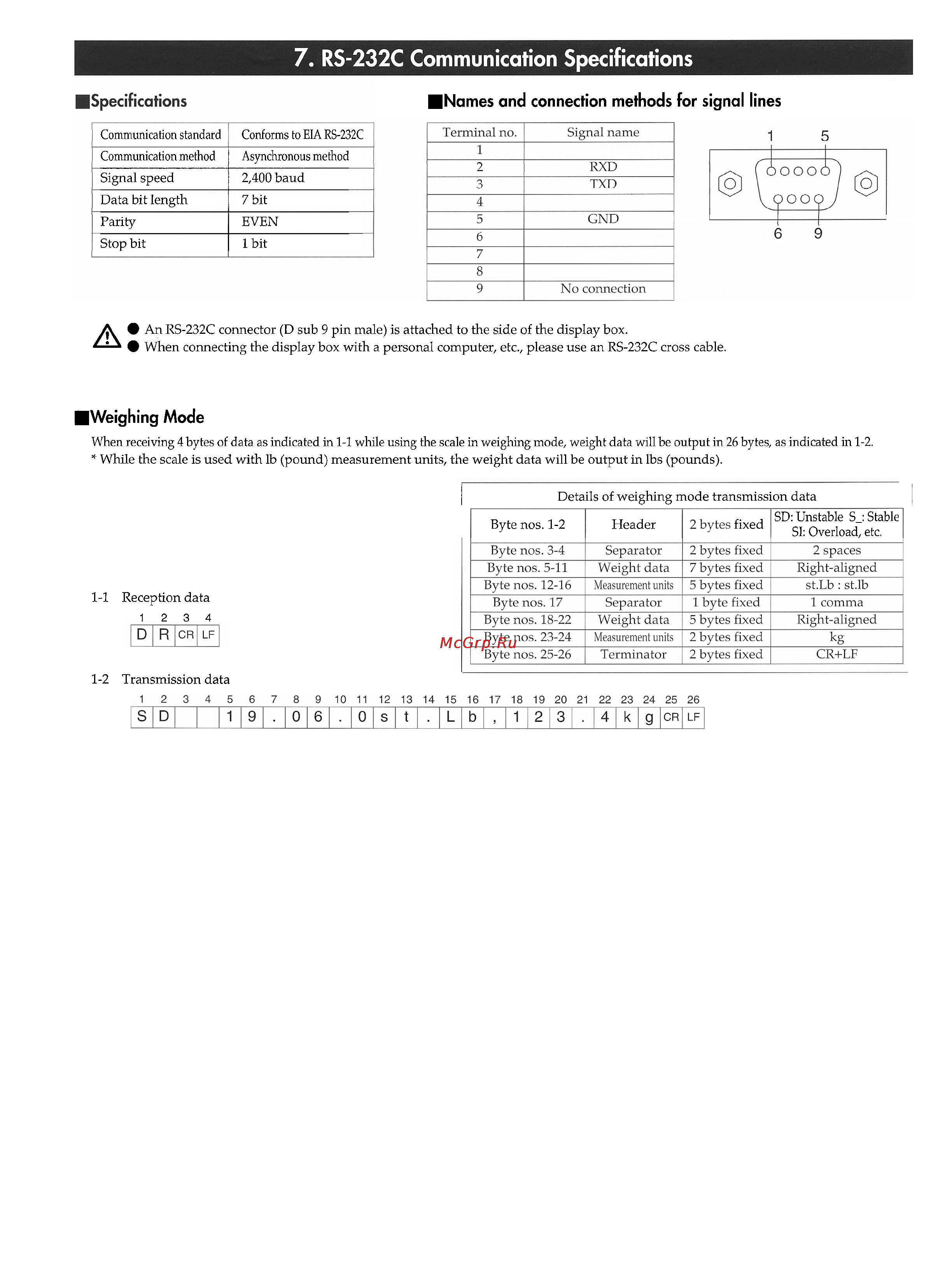

Tanita WB-100S MA [7/8] Names and connection methods for signal lines
![Tanita WB-100S MA [7/8] Names and connection methods for signal lines](/views2/1078138/page7/bg7.png)
Communication standard Conforms to
EIA
RS-232C
Communication method Asynchronous method
Signal speed 2,400 baud
Data bit length
7
bit
Parity
EVEN
Stop bit
1
bit
.Names and connection methods for signal lines
A
An RS-232C connector
(D
sub
9
pin male) is attached to the side of the display box.
When connecting the display box with a personal computer, etc., please use
an
RS-232C cross cable.
.Weighing Mode
When receiving
4
bytes of data as indicated in
1-1
while using the scale in weighing mode, weight data will be output
in
26
bytes, as indicated in
1-2.
*
While the scale is used with lb (pound) measurement units, the weight data will be output in lbs (pounds).
1-1
Reception data
1234
1-2 Transmission data
1
Details of weighing mode transmission data
I
SD: Unstable
S-:
Stable
CJ:
Overload, etc,
Byte nos.
1-2
Header
fixed
