Icom IC-A220 [26/40] Menu mode

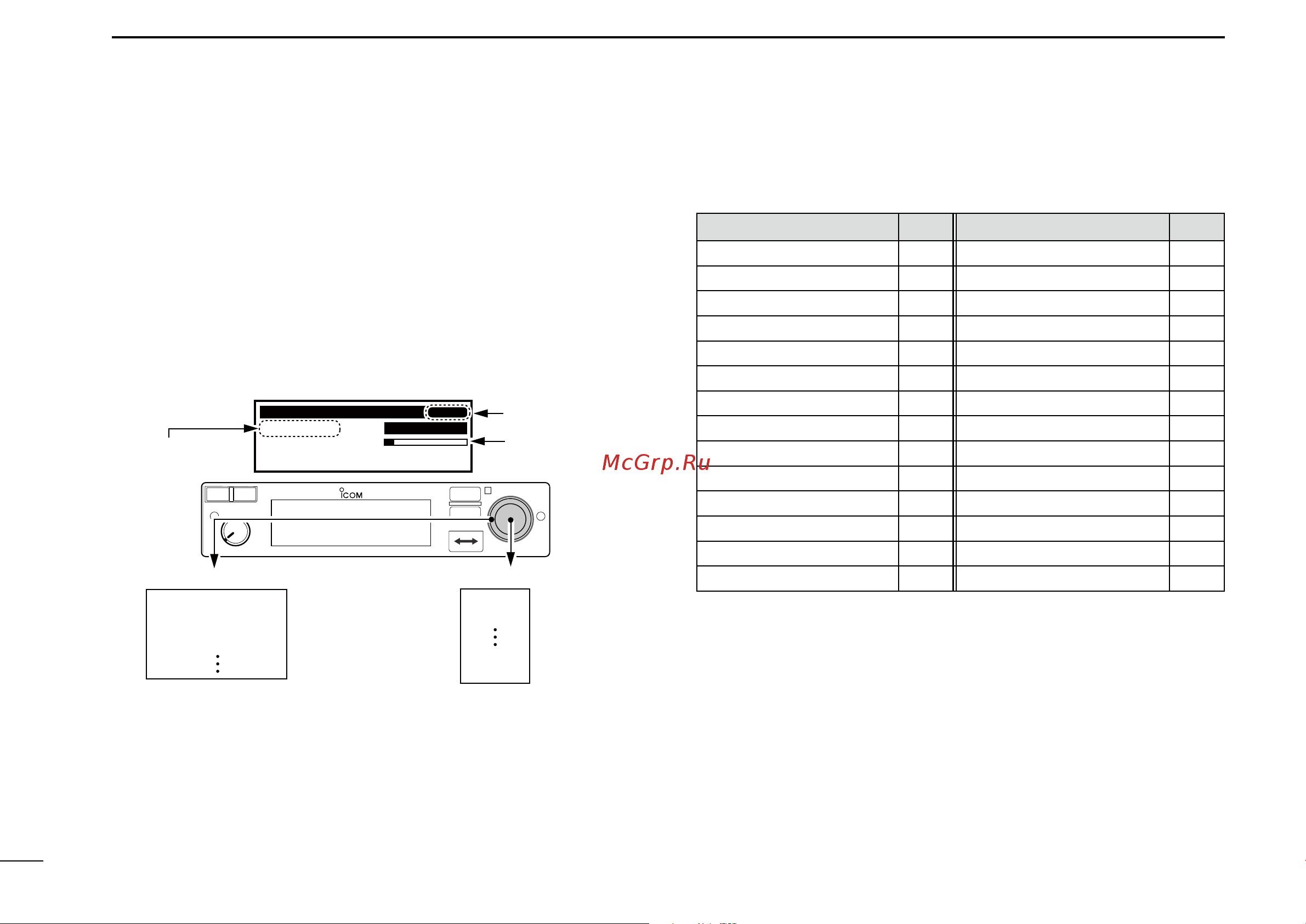

![Icom IC-A220 [26/40] Menu mode](/views2/1782012/page26/bg1a.png)
19
5
MENU MODE
Using the D Conguration menu
While holding down q [DUAL], rotate [VOL] to turn ON the
transceiver’s power.
• Conguration menu is displayed.
Rotate w [O-DIAL] to select a setting item.
Rotate e [DIAL] to select a desired setting.
Push r [RCL] to exit the Configuration menu and restart the
transceiver.
CONFIG RCL=SAV/EX
MIC1 SQL 002
09/44
RCL
MEM
OFF
VOL
PUSH
TEST
COMM
DUAL
EC
OFF
001
029
030
Desired setting
MIC1 SQL
MIC2 SQL
DW INTERVAL
AUTO SQL
Configuration items
Configuration
menu items
Items number
Setting value
• Conguration menu items
Item Ref. Item Ref.
AUTO SQL p. 22
DISP HIGH
p. 24
SQL SW p. 22
DISP RESP.
p. 24
MIC1 SQL p. 22
U-1 ID SET
p. 24
MIC2 SQL p. 22 U-2 ID SET p. 24
DW INTERVAL p. 22 AUX IN p. 24
PRI. WATCH p. 22 AUX MAX LEVEL p. 24
PW INTERVAL p. 22 INCOM MODE p. 24
MEM PROTECT p. 22 TIME OUT p. 25
GRP MEMORY p. 23 INTERLOCK p. 25
TX MIC SEL p. 23 INTLOCK MODE p. 25
DISP MODE p. 23 REM SWAP p. 25
DISP AUTO p. 23 REM INCOM p. 25
DISP EXT p. 23 REM RECALL p. 25
DISP LOW
p. 23 MEM CLEAR p. 25
