PANEL DESCRIPTION
q DUAL SWITCH [DUAL]
➥ Push to turn Dualwatch operation ON or OFF. (p. 14)
➥ Hold down for two seconds to turn the intercom func-
tion ON or OFF.
w EMERGENCY CHANNEL SWITCH [EC]
➥ Push to set the emergency frequency (121.5 MHz) as
the standby frequency. (p. 15)
➥ Hold down for two seconds to enter the direct frequency
setting mode (p. 6), and set the emergency frequency
(121.5 MHz). (p. 15)
e VOLUME/POWER SWITCH [VOL]
➥ Turn [VOL] to switch the power ON or OFF.
➥ Adjusts the audio output level.
The volume level bar is displayed while rotating [VOL].
➥ Hold down for two seconds to enter the AM squelch
level “SQL LEVEL” item in the Settings menu. (p. 6)
➥ Push to set the squelch test function ON or OFF.
(p. 16)*
* When the squelch test function is ON, and the Auto squelch
“AUTO SQL” item in the Configuration menu (p. 22) is set to
“USER SET,” push [VOL] again to switch the squelch mode.
(p. 6)
RCL
MEM
OFF
VOL
PUSH
TEST
COMM
DUAL
EC
CH09 SAMPLE
121.52
5
118.00
RX
MEMORY
eytriouqw

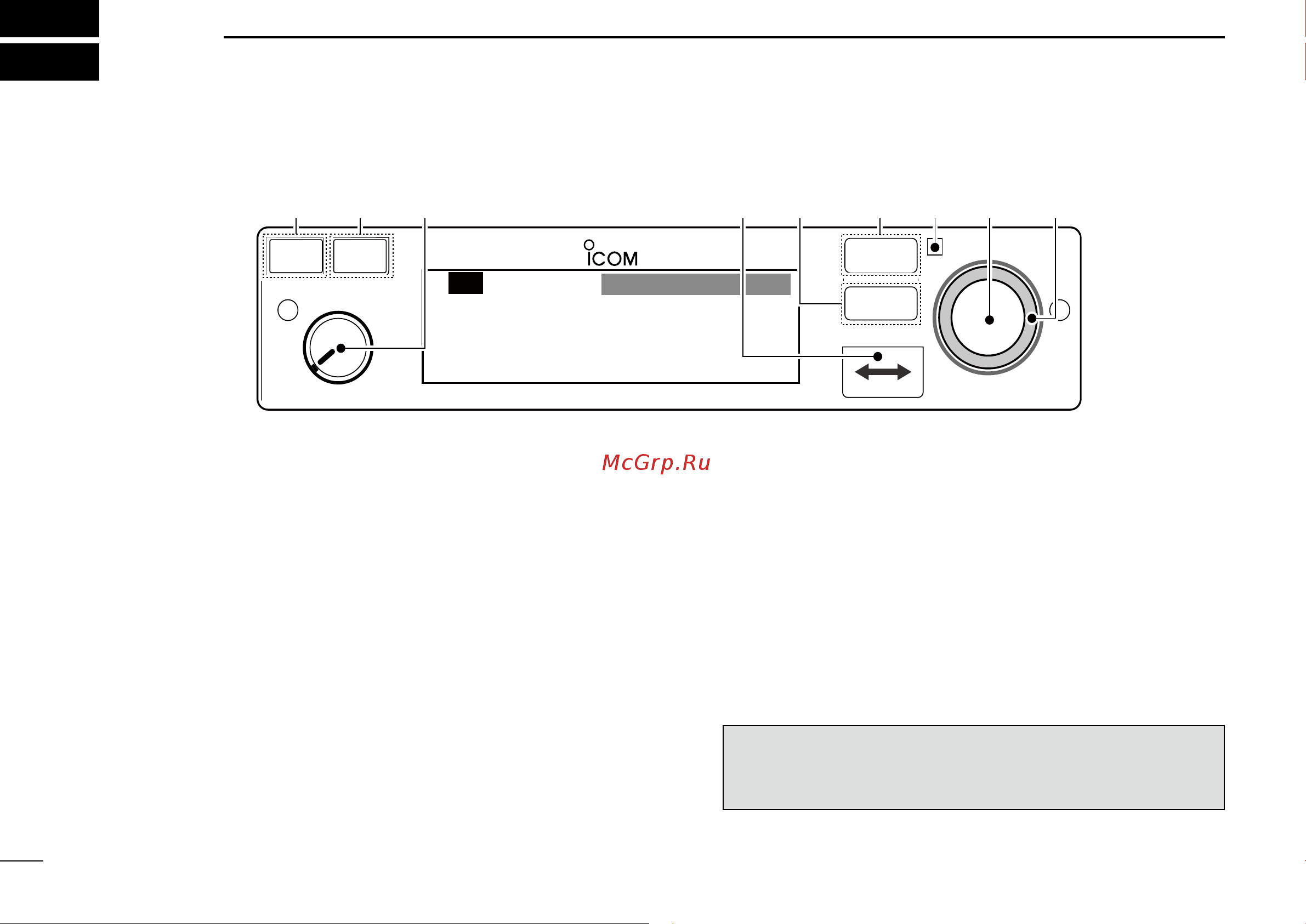

■ Front panel
CAUTION: DO NOT turn ON power until the en-
gines have been started. Otherwise, the power supply
circuit may damage.
