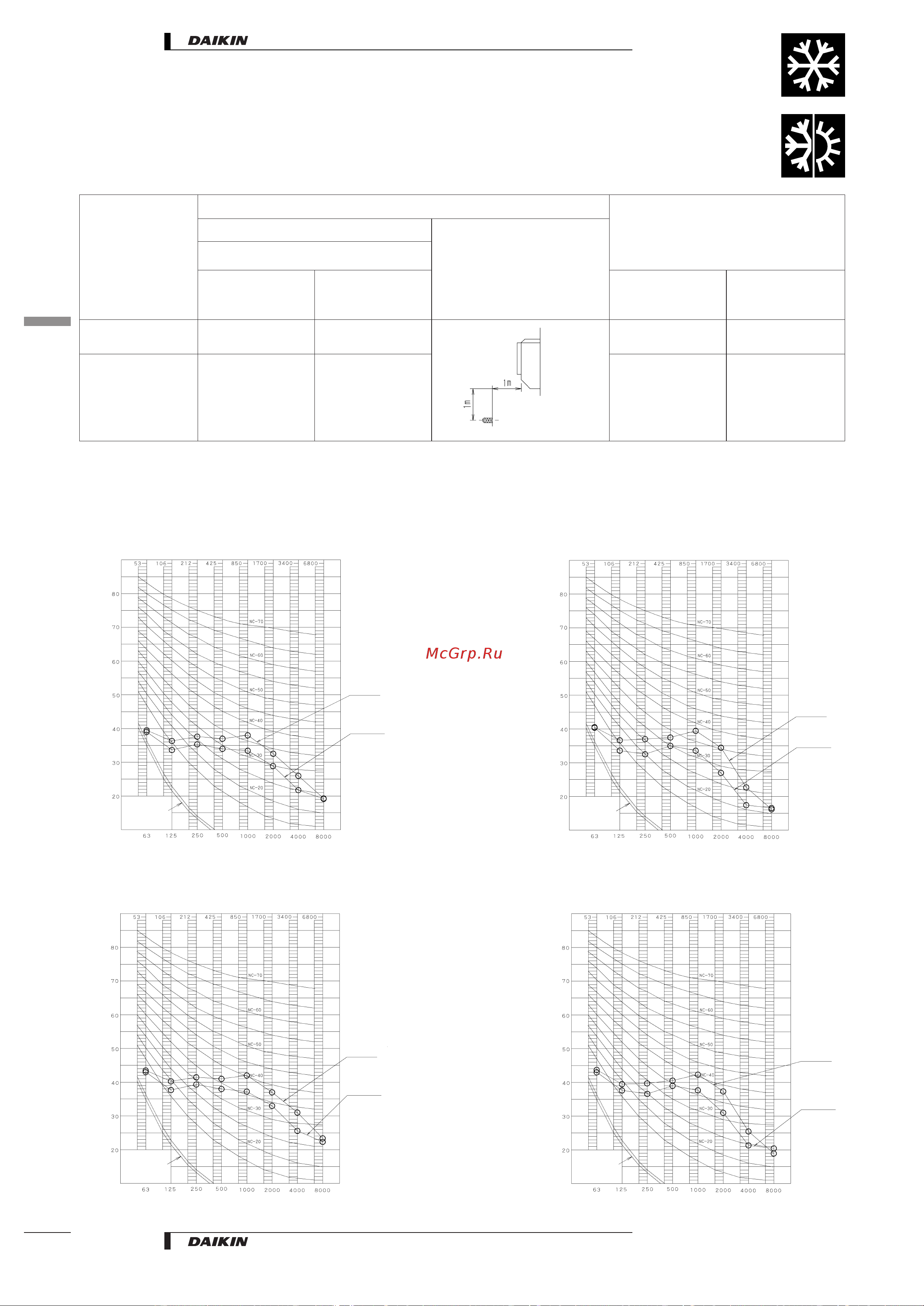

Sound levels
6-1
Sound level data
Octave band sound pressure level
Octave band sound pressure level
Model
Sound pressure level
Sound power level230V
Measuring location
50Hz
Cooling
H/L
Heating
H/L
Cooling
H/L
Heating
H/L
FAYP71BV1 41/37 42/38 57/53 58/54
FAYP100BV1 45/41 45/41 61/57 61/57
Octave band center frequency (Hz) Octave band center frequency (Hz)
FAYP71BV1 (Cooling) FAYP71BV1 (Heating)
4D0277864D027784
6-2
Sound pressure spectrum
approximate
threshold hearing
for continuous
noise
approximate
threshold hearing
for continuous
noise
FAYP100BV1 (Cooling) FAYP100BV1 (Heating)
Octave band sound pressure level
Octave band sound pressure level
4D027787 4D027790
Octave band center frequency (Hz) Octave band center frequency (Hz)
approximate
threshold hearing
for continuous
noise
approximate
threshold hearing
for continuous
noise
Microphone
H (230V)
L (230V)
H (230V)
L (230V)
H (230V)
L (230V)
H (230V)
L (230V)
Note:
1.
Sound pressure levels are measured in
an anechoic room.
2. Data are valid at nominal operation
conditions.
3. Operation sound level differs with
operation and ambient conditions.
•
Wall Mounted Unit • R-407C • FAYP71-100BV1
