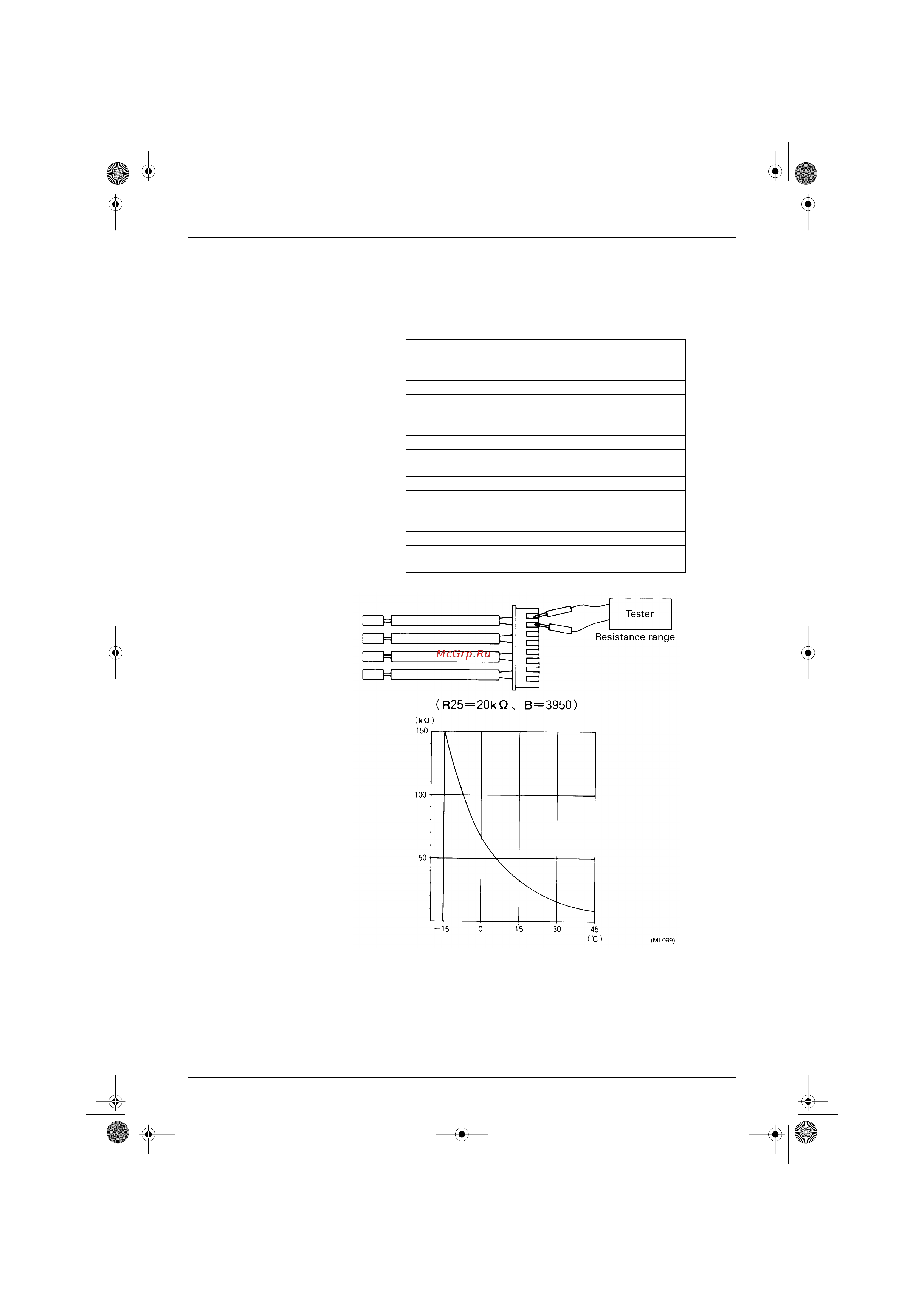

Daikin 2MX52HV1NB [162/264] Thermistor resistance check
![Daikin 2MX52HV1NB [162/264] Thermistor resistance check](/views2/1783265/page162/bga2.png)
Check SiE00-04
152 Service Diagnosis
6.1.5 Thermistor Resistance Check
Check No.5 Remove the connectors of the thermistors on the PCB, and measure the resistance of each thermistor
using tester.
The relationship between normal temperature and resistance is shown in the graph and the table below.
Thermistor R25˚C=20kΩ B=3950
Temperature (˚C)
-20 211.0 (kΩ)
-15 150
-10 116.5
-5 88
0 67.2
5 51.9
10 40
15 31.8
20 25
25 20
3016
3513
40 10.6
45 8.7
50 7.2
