ESIE04-01 Introduction
iii
3
4
5

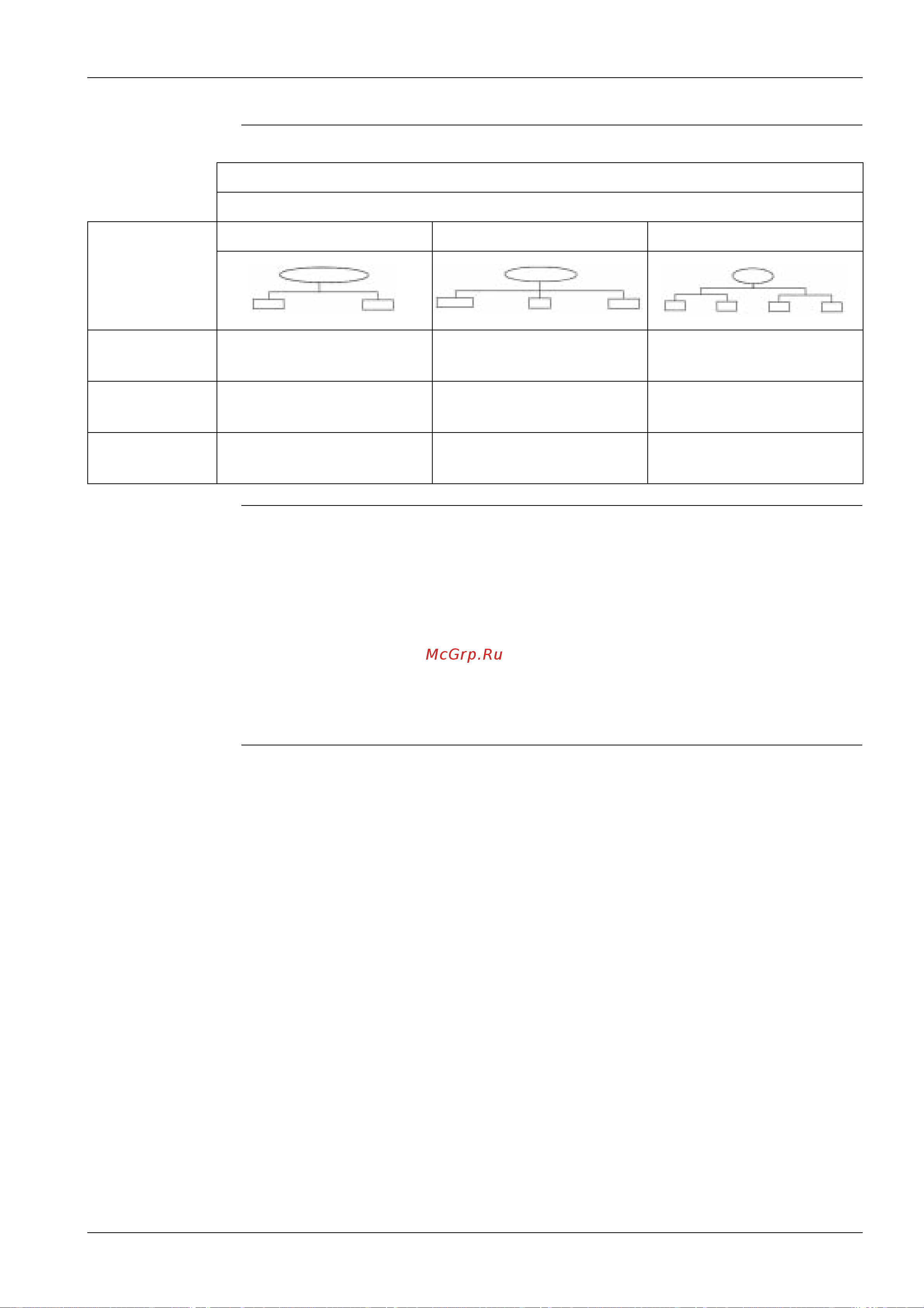

Combination Matrix
Notes: 1 Possible indoor types:
■ FCQ35-60
■ FFQ35-60
■ FHQ35-60
■ FBQ35-60
2 When different indoor models are used in combination, designate the remote control that is
equipped with the most functions as the main unit. In note 1 are the indoor units mentioned in order
of the possible function (most functions are on FCQ , less functions are on FBQ).
3 Between brackets are the required Refnet kits mentioned, that are necessary to install the
combination.
Possible indoor combination
Simultaneous operation
Outdoor models Twin Triple Double Twin
RZQ71B7V3B
35-35
(KHRQ22M20TA7)
––
RZQ100B7V3B
50-50
(KHRQ22M20TA7)
35-35-35
(KHRQ127H7)
–
RZQ125B7V3B
60-60
(KHRQ22M20TA7)
50-50-50
(KHRQ127H7)
35-35-35-35
(3 x KHRQ22M20TA7)
OUT
IN
IN
OUT
IN
IN
IN
OUT
IN
IN
IN
IN
