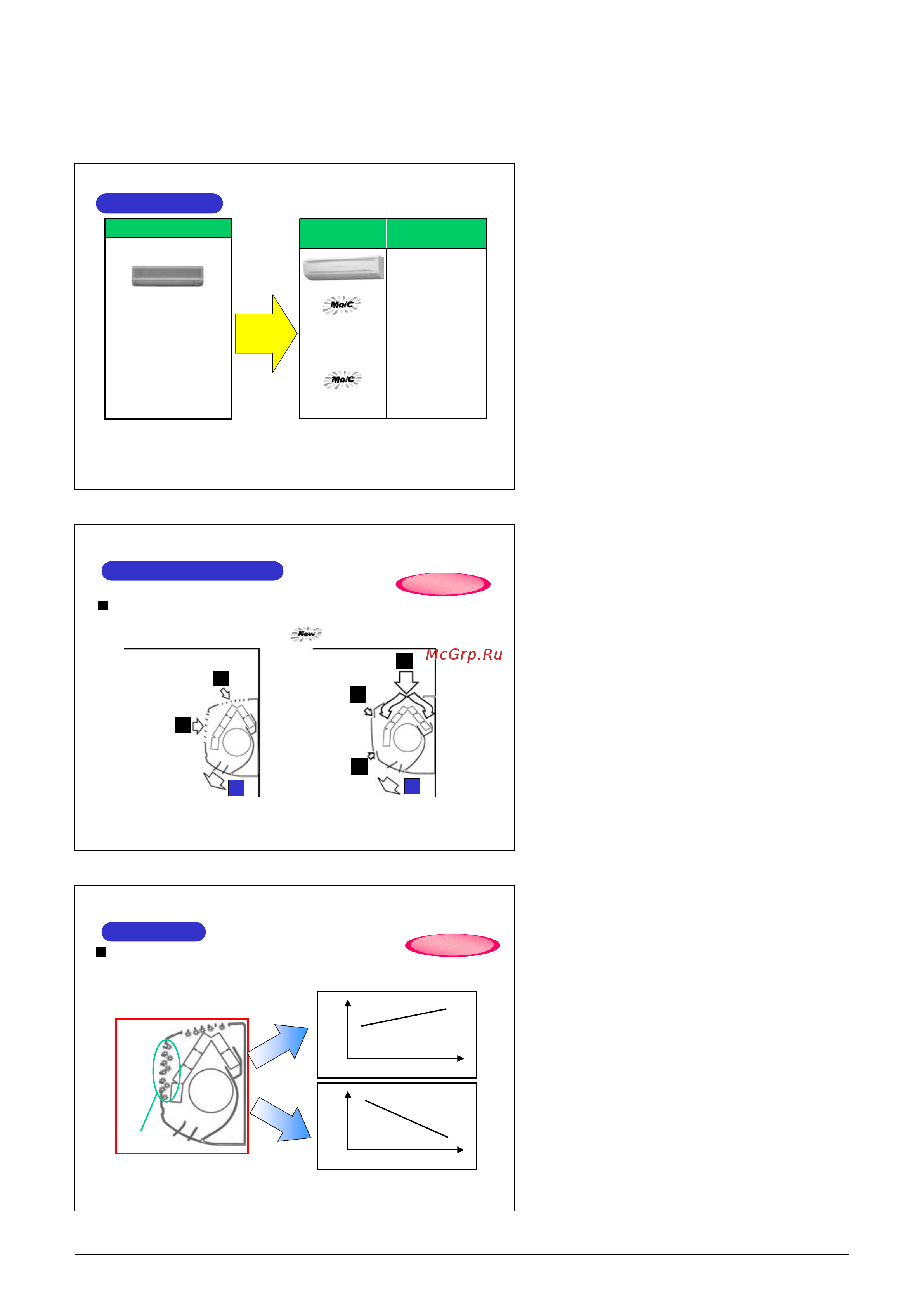

Features ED01-325
2 Room Air Conditioners B-Series
1. Features
60Hz
50Hz
FT50/60GAVAL
R50/60GVAL9
FT50/60GAVE
R50/60GV19
2002
Changing Point
- New flat pa nel
- Comply with IE C
standar d in HK
- Improved COP
- Same indoo r unit
for both 50/60 Hz
area
Changing Point
FT50/60BVM
R50/60BVL
2003
50Hz
FT50/60BVM
R50/60BV1
60Hz
03RAGC-3
03RAGD-3
03RAGD-4
New type of Airflow
Wall Mounted
The suction and discharge have been placed further apart.
Top suction grille is collecting approx. 80% of returned air.
Current Air Flow
New Air Flow
10
10
6
4
8
1
1
Grille type Flat type
03RAGD-5
Comfort
Dust Free to keep the optimum capacity
and sound level
Wall Mounted
Unless the grille is
cleaned regularly
Pressure drop Large
Sound
Level
Large
Increased
Operation Sound
Characteristic of cross flow fan
Large
Airflow rate
Large
Reduced Capacity
Pressure drop
Dust
