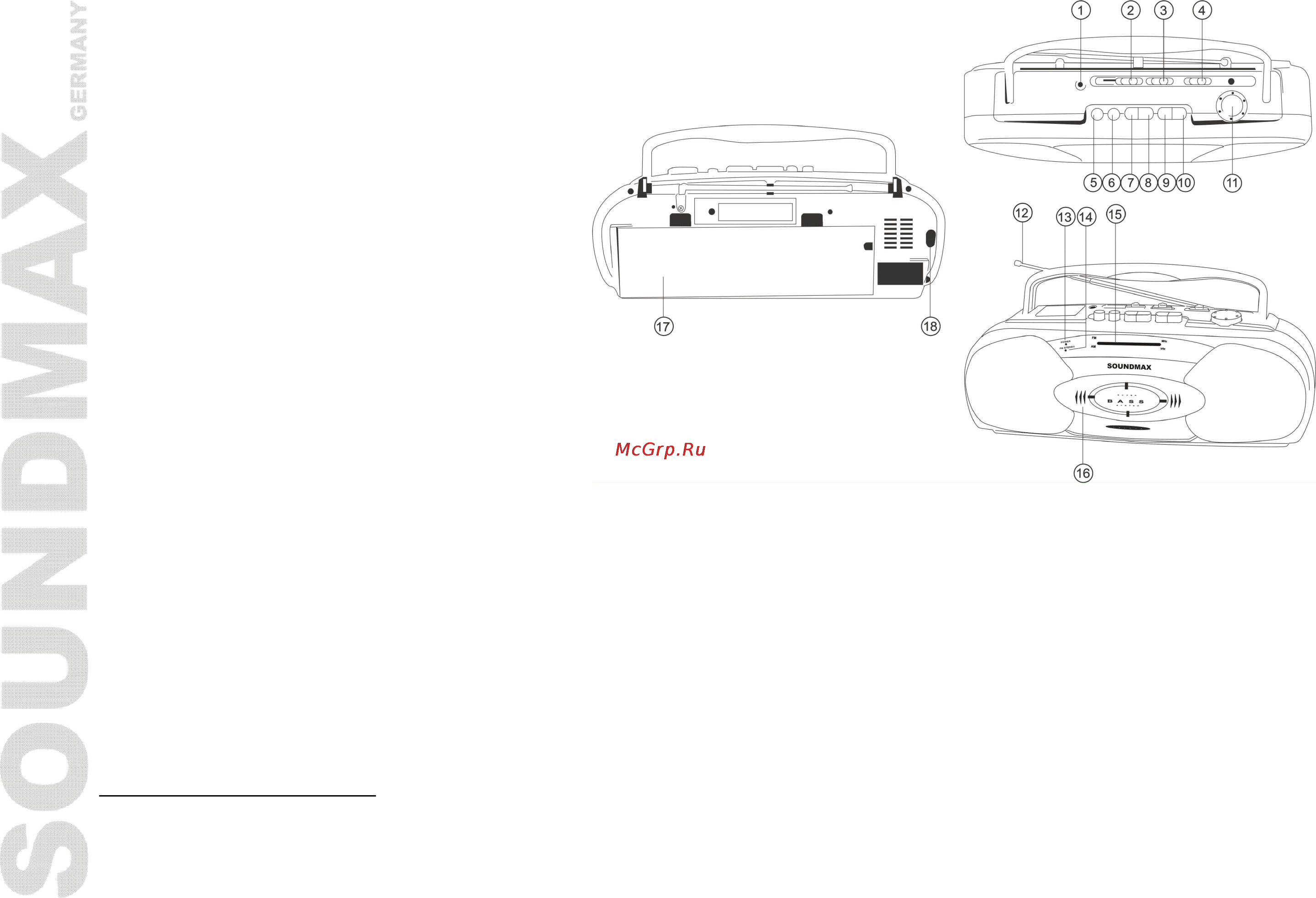

Description

1. Headphone Jack

2. Volume Control

3. Function Switch

4. Band Selector

5. Pause Button

6. Stop/Eject Button

7. Fast Forward Button

8. Rewind Button

9. Play Button

10. Record Button

11. Tuning Knob

12. FM Telescopic Antenna

13. Power Indicator

14. FM Stereo Indicator

15. Dial Scale

16. Cassette Door

17. Battery Compartment

18. AC Power Cord Socket

Important safeguards

· CAUTION: To reduce the risk of electric shock, do not remove cover (or back), do not put any user-

serviceable parts inside. Prefer servicing to qualified service personnel.

· DANGEROUS VOLTAGE: Uninsulated dangerous voltage that may be of sufficient magnitude to constitute

a risk of electrical shock to persons is present within this product enclosure.

· ATTENTION: The owners manual contains important operating and maintenance instructions. For your

safety, it is necessary to refer to the manual.

Power supply and connection

BATTERY OPERATION

· Set the FUNCTION switch to the TAPE position.

· Open the battery compartment cover.

· Insert 6 batteries (UM-1 or D). Please observe correct battery polarities or the set will not work.
