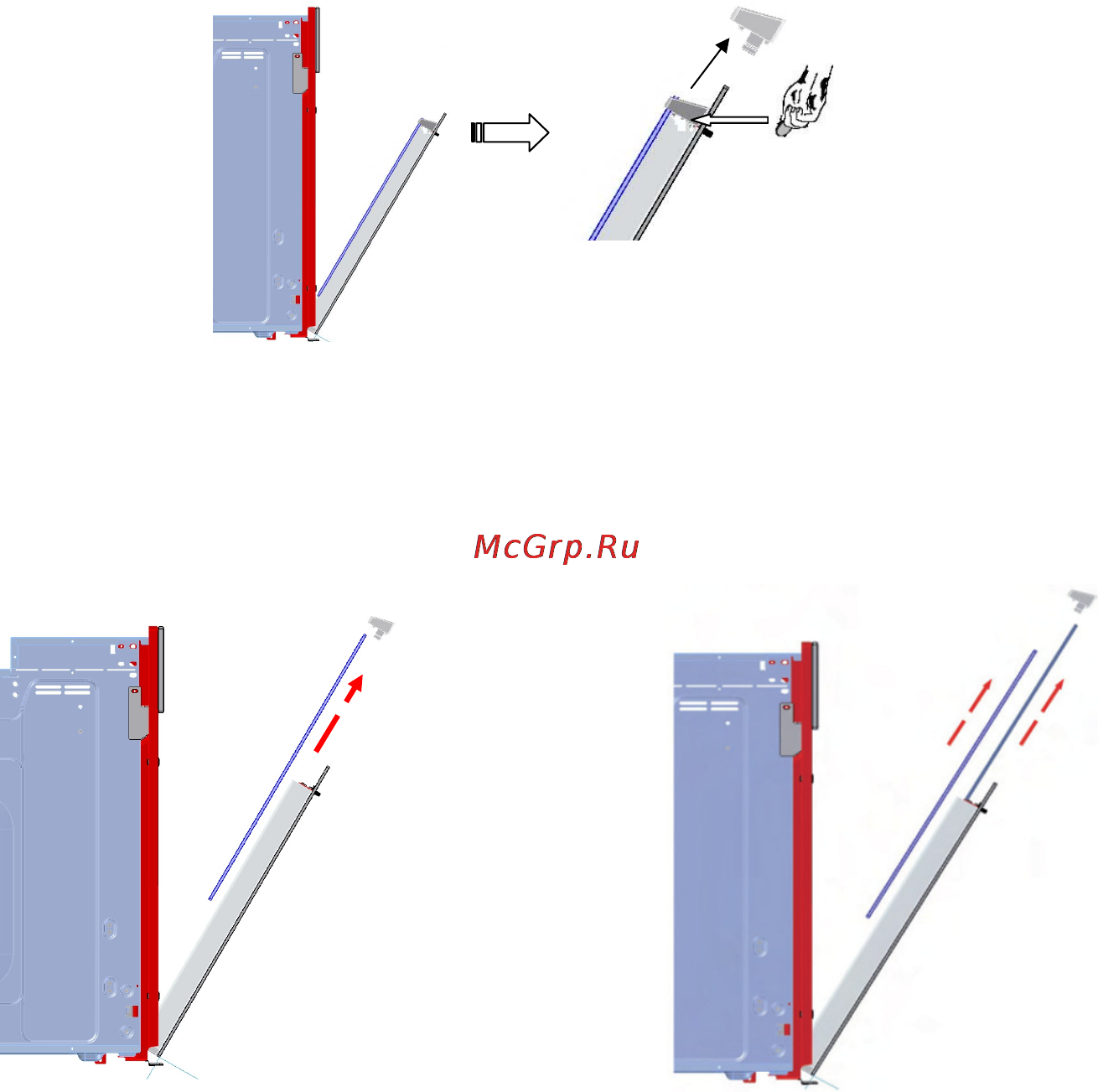

Figure 11.1

For 2-glass version:

Once having extracted the upper part, slide out the glass, please see the figure 11.2 below, and re-install it

by reversing the procedure:

For 3-glass version:

Once having extracted the upper part, slide out the external glass first (the one facing the oven cavity), and

then the other glasses, please see the figure 11.3 below, and re-install them by reversing the procedure:

Figure 11.2 Figure 11.3

IMPORTANT:

In order not to compromise the performance and the safety of the door, it is important, while reassembling it,

to replace the glasses as they were originally placed (with the “writing” or “symbols” on the glass being

legible from inside the door, thus facing outwards).

RAPLACEMENT OF THE OVEN GASKET

The gasket located around the cooking chamber must be replaced if it has any cracks.

For safety reasons, the gasket must be replaced by a qualified specialist of an Authorized Service Centre.

TECHNICAL SERVICE AND SPARE PARTS

Repairs must only be carried out by authorized personnel, especially on the electrical parts. It is

recommended to contact an Authorized Service Centre, indicating the type of fault, appliance model and

serial number located on the oven data plate.

The plate is located in the outer part of the oven cavity and is visible when the door is open.

For all repairs only original spare parts must be used.

The original spare parts, certified by the manufacturer, can be found only at the Authorized Service Centre

and in Authorized Spare Parts Stores.
