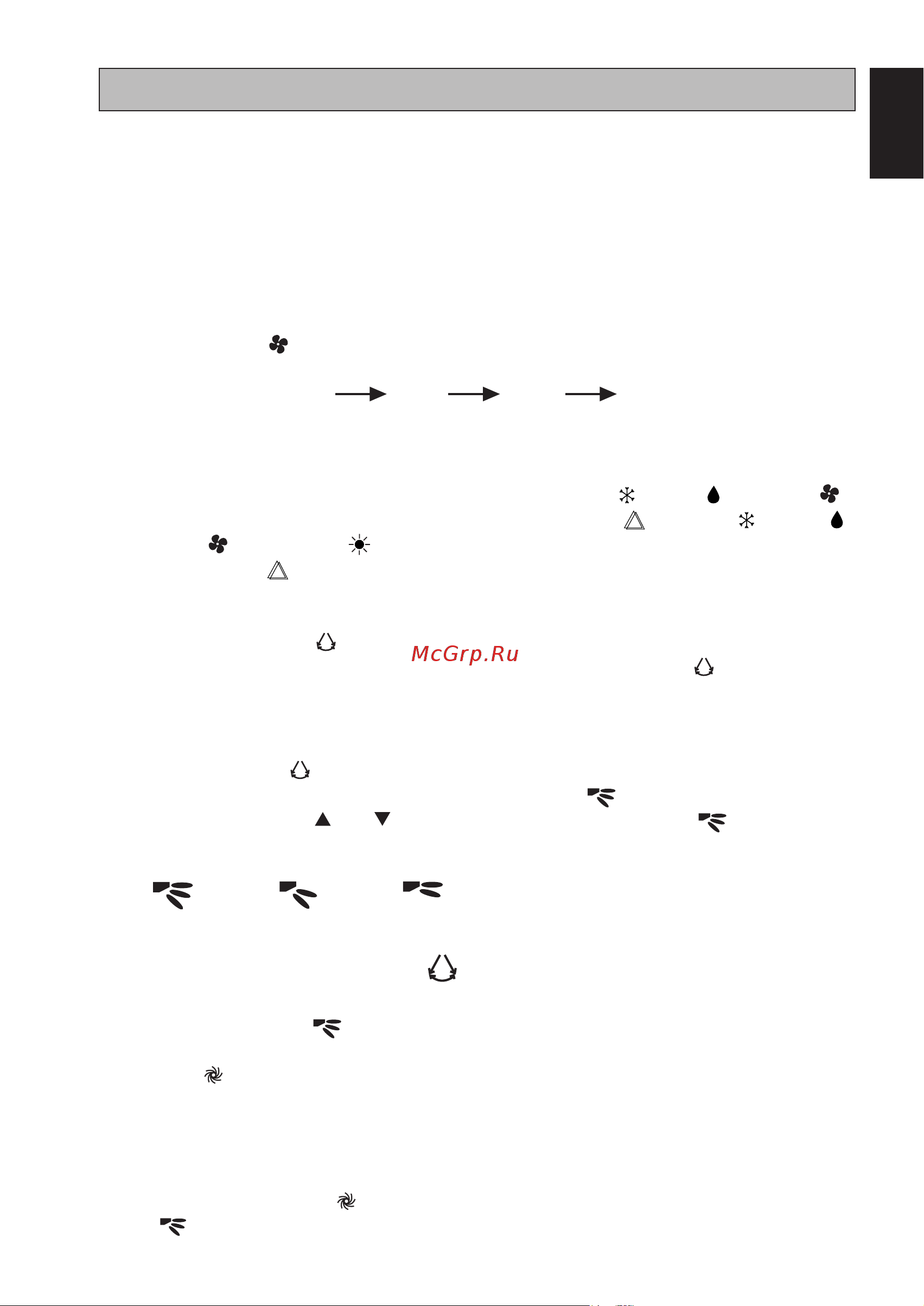

ENGLISH
1
OPERATING GUIDE
Transmission source
The source where the signal will be transmitted.
Signal transmission indication
Blink to confirm that the last setting has been transmitted to the unit.
“ON/OFF” Button
Press once to start the air conditioner unit.
Press again to stop the unit.
Fan speed selection
Pressing the
button continuously will toggle the fan speed in the following
order:
Low Med High Auto
Stop pressing when the desired fan speed appears on the display screen.
Operation mode
Press the MODE button to select the type of operating mode.
For cooling only unit, the available modes are: COOL ( ), DRY ( ) and FAN ( ).
For heat pump unit, the available modes are: AUTO ( ), COOL ( ), DRY ( ),
FAN ( ) and HEAT ( ).
The AUTO ( ) mode is unavailable for chilled water system except 4-pipe
system.
Automatic air swing
Press the SWING button to activate the automatic air swing function.
To distribute the air to a specific direction, press the SWING button and wait
until the louver move to the desired direction and press the button once again.
Swing mode selection method (Not applicable for Ceiling Cassette
A&C Series)
Press SWING ( ) button for 4 seconds to enter field setting mode. While in field
setting mode, it will only show SWING MODE ( ).
Press temperature and button to select SWING MODE ( ) rotation from
Swing Mode 1 to Swing Mode 3.
There are 3 different SWING MODE, which are:
Swing mode 1 Swing mode 2 Swing mode 3
SWING MODE will not activate unless SWING is activated.
Swing is indicated by the logo:
If no mode changes within 4 seconds, unit will operate according to the selected
SWING MODE ( ).
Turbo function (model dependent)
Press
for fast cooling or heating operation.
Fan speed turn to maximum speed.
Press again to deactivate the function.
Available under HEAT and COOL modes only.
Any change of fan speed will deactivate this function.
The Turbo function ( ) is unavailable for remote control with SWING MODE
( ) function.
1.
•
2.
•
3.
•
•
4.
•
•
5.
•
•
•
•
6.
•
•
•
•
•
•
7.
•
•
•
•
•
•
Original Instruction
1-OM-GS02-1011(3)DAIKIN-EN.indd Sec1:11-OM-GS02-1011(3)DAIKIN-EN.indd Sec1:1 7/12/13 4:21:24 PM7/12/13 4:21:24 PM
