5 Unit installation
Installation manual
5
FTXTA30B2V1B(W)(B)
Daikin room air conditioner
3P482320-12U – 2021.03
≥50 ≥50
≥30
(mm)
Note: Make sure that there are no obstacles within 500mm under
the signal receiver. They may influence reception performance of the
user interface.

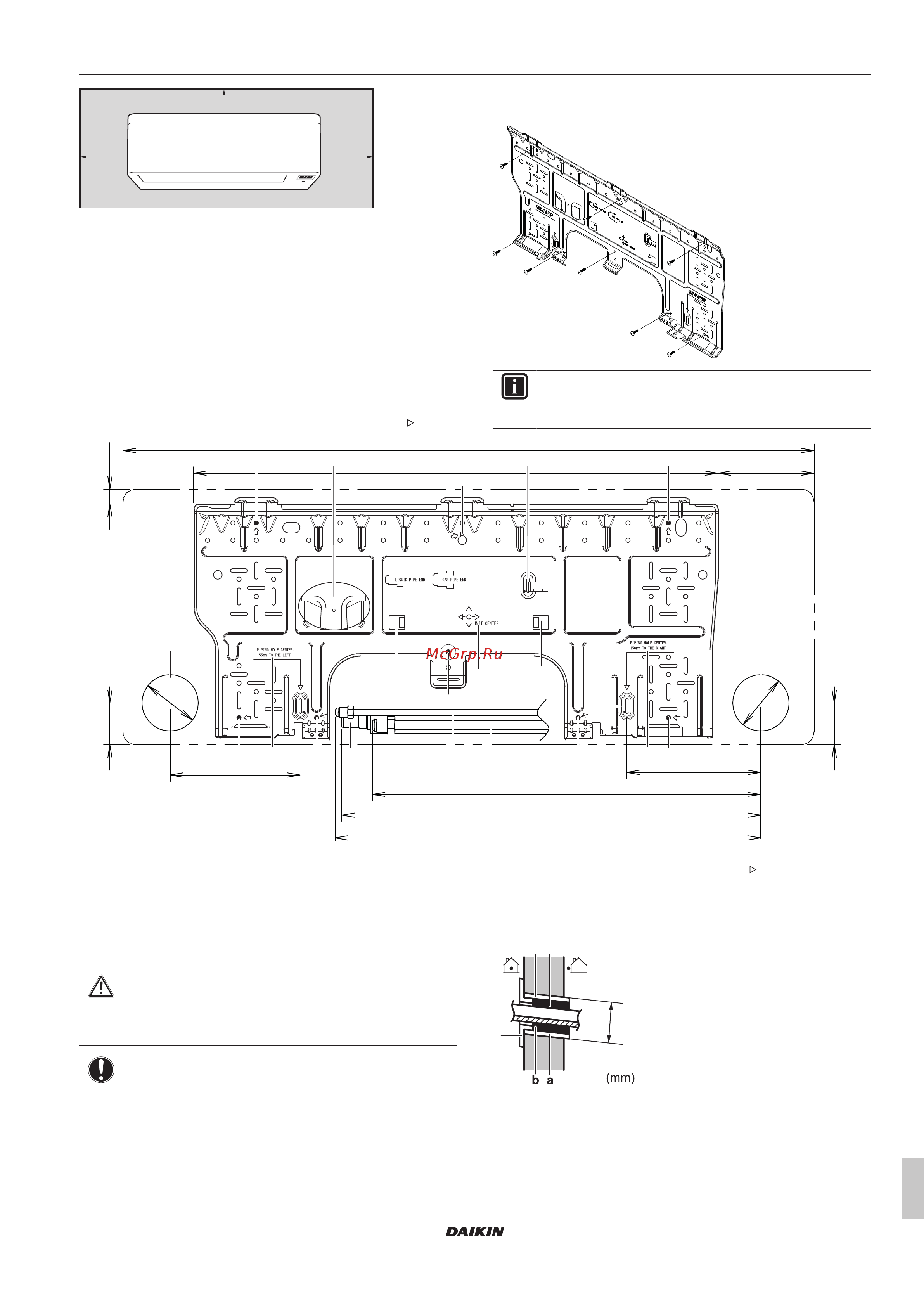

5.2 Mounting the indoor unit
5.2.1 To install the mounting plate
1 Install the mounting plate temporarily.
2 Level the mounting plate.
3 Mark the centres of the drilling points on the wall using a tape
measure. Position the end of tape measure at symbol " ".
4 Finish the installation by securing the mounting plate on the wall
using M4×25L screws (field supply).
INFORMATION
The removed pipe port cover can be kept in the mounting
plate pocket.
(mm)
44.5
605
17
110
798
150
155
44.5
Ø65
Ø65
d
gg
a
e
d
a
f
f
b
ca a
a
a
a
a
h
± 610
± 605
± 555
kji
a Recommended mounting plate fixing spots g Value for tape measure
b Pocket for the pipe port cover h Position for tape measure at symbol " "
c Use tape measure as shown i Drain hose
d Tabs for placing a spirit level j Liquid pipe
e Unit center k Gas pipe
f Hole for embedded piping Ø65mm
5.2.2 To drill a wall hole
CAUTION
For walls containing a metal frame or a metal board, use a
wall embedded pipe and wall cover in the feed-through
hole to prevent possible heat, electrical shock, or fire.
NOTICE
Be sure to seal the gaps around the pipes with sealing
material (field supply), in order to prevent water leakage.
1 Bore a 65 mm large feed-through hole in the wall with a
downward slope towards the outside.
2 Insert a wall embedded pipe into the hole.
3 Insert a wall cover into the wall pipe.
Ø65
a
b
c
a Wall embedded pipe
b Putty
c Wall hole cover
4 After completing wiring, refrigerant piping and drain piping, do
NOT forget to seal the gap with putty.
