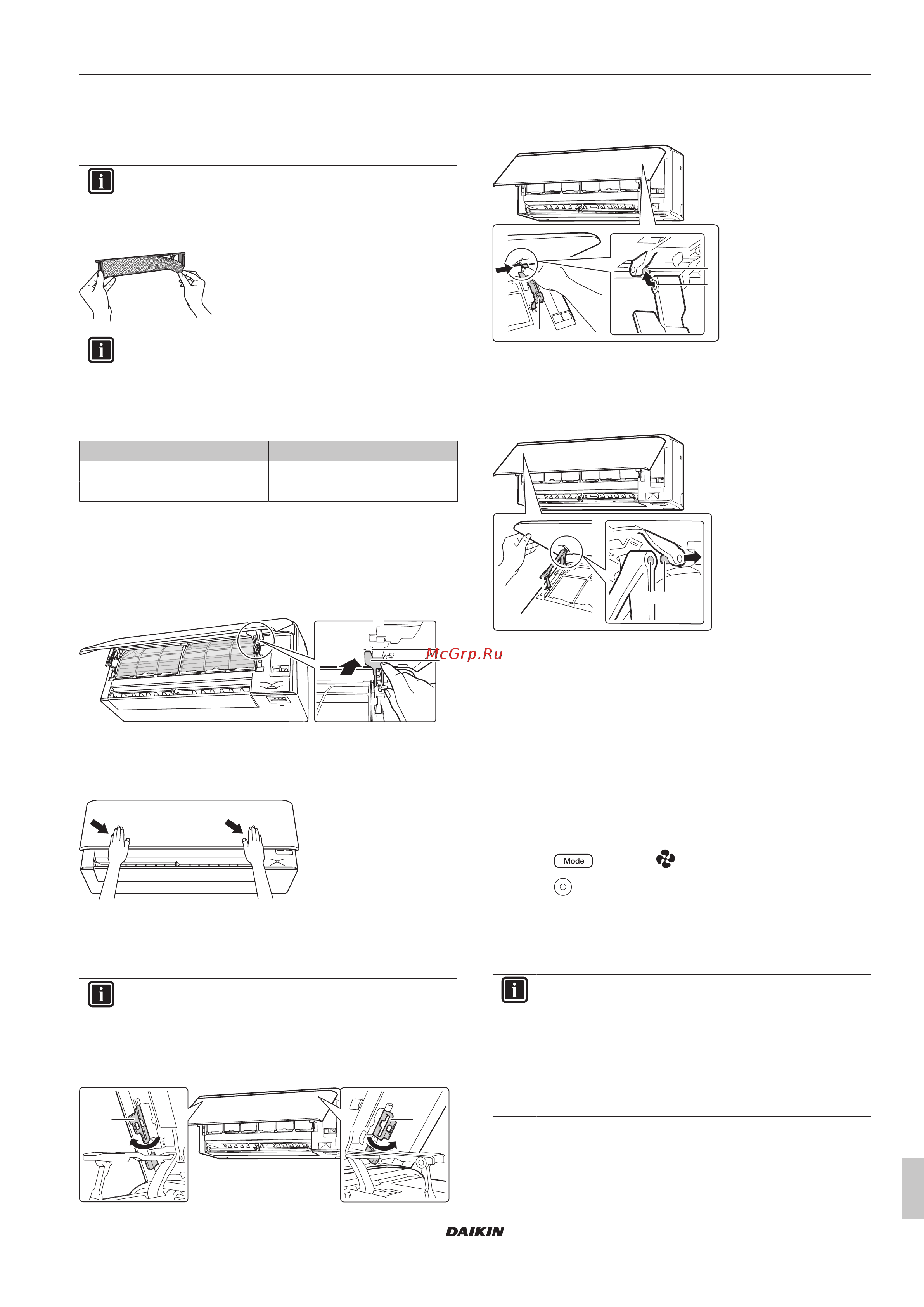

![Daikin FTXTA30B2V1BW [17/20] Maintenance and service](/views2/1785511/page17/bg11.png)
7 Maintenance and service
Operation manual
17
FTXTA30B2V1B(W)(B)
Daikin room air conditioner
3P485919-13U – 2021.03
7.7 To replace the titanium apatite
deodorising filter and the silver
particle filter (Ag-ion filter)
INFORMATION
Replace the filter every 3 years.
1 Remove the filer from the tabs of the filter frame and replace
the filter with a new one.
INFORMATION
▪ Do NOT throw away the filter frame, but use it again.
▪ Dispose of the old filter as non-flammable waste.
To order titanium apatite deodorising filter or silver particle filters,
contact your dealer.
Item Part number
Titanium deodorising filter KAF970A46
Silver particle filter KAF057A41
7.8 To close the front panel
1 Set the filters as they were.
2 Lift the front panel slightly and remove the support from the
fixing tab.
a
b
c
a Backside of the front panel
b Fixing tab
c Support
3 Close the front panel.
4 Gently press the front panel down until it clicks.
7.9 To remove the front panel
INFORMATION
Remove the front panel only in case it MUST be replaced.
1 Open the front panel. See "7.4To open the front panel"[415].
2 Open the panel locks located on the back side of the panel
(1on each side).
a a
a Panel lock
3 Push the right arm lightly to the right to disconnect the shaft
from the shaft slot on the right side.
a
c
b
a Arm
b Shaft
c Shaft slot
4 Disconnect the front panel shaft from the shaft slot on the left
side.
a
c
b
a Arm
b Shaft slot
c Shaft
5 Remove the front panel.
6 To re-install the front panel perform the steps in the opposite
order.
7.10 To take following items into
account before a long idle period
Operate the unit several hours in fan only mode to dry the inside of
the unit.
1 Press and select operation.
2 Press and start operation.
3 After operation stops, turn the breaker off.
4 Clean the air filters and replace them in their original position.
5 Remove the batteries from the user interface.
INFORMATION
It is recommended to have periodical maintenance
performed by a specialist. For specialist maintenance,
contact your dealer. Maintenance costs shall be borne by
the customer.
In certain operating conditions the inside of the unit may
get dirty after several seasons of use. This results in poor
performance.
