Daikin ARXN50LV1B [5/25] English
![Daikin ARXN50LV1B [5/25] English](/views2/1785658/page5/bg5.png)
English
1-3
B
A
Q
P
R
S
D
O
KL L
M
N
F
E
C
G H
I
J
N
Dimension
Model
A
B C D E F G H I J K L M N
ARXN50/60LV1B 855 730 328 520 179 46 93 149 101 113 603 126 164 15

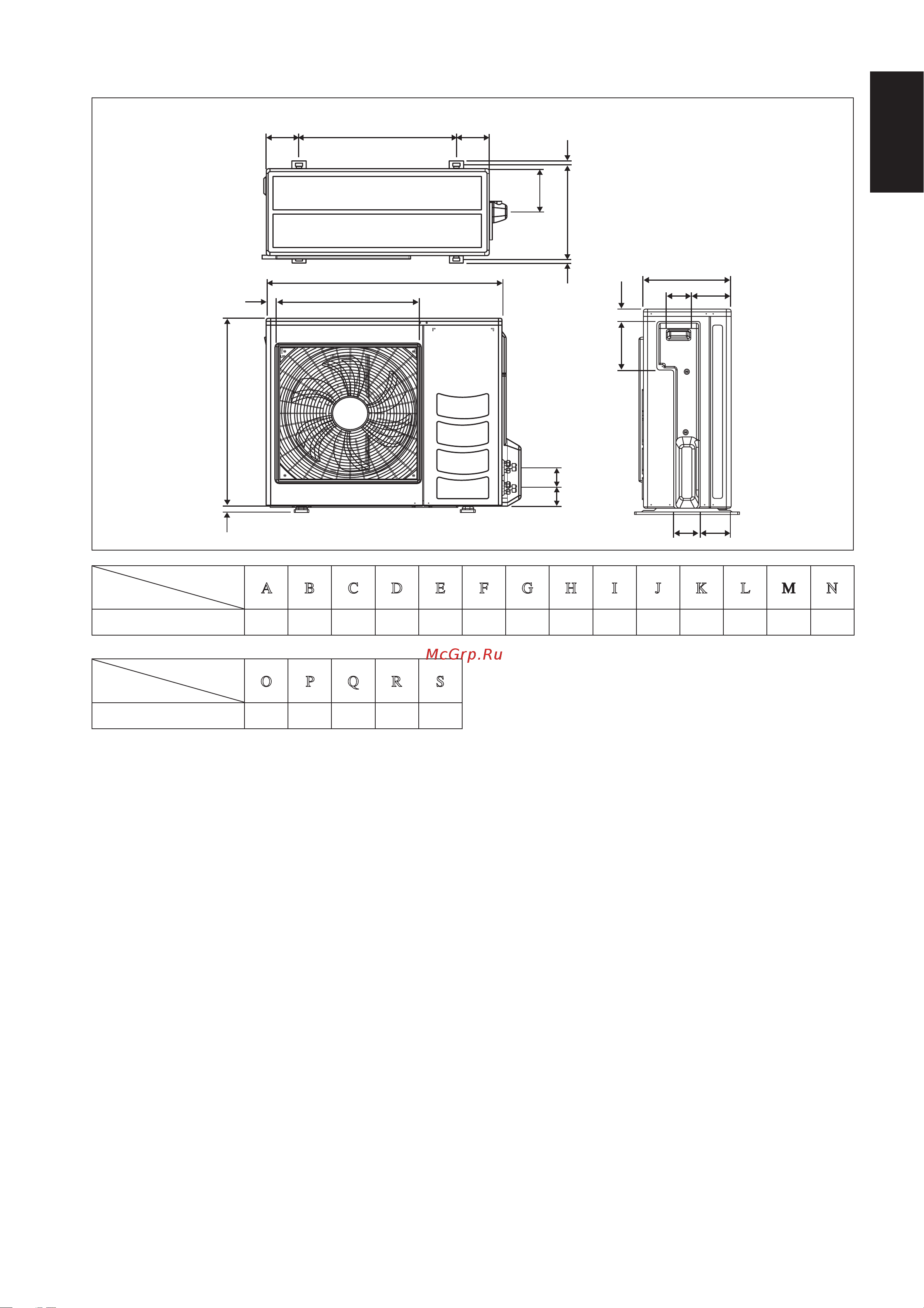

Outdoor Unit [ARXN50/60LV1B]
All dimensions are in mm
Dimension
Model
O
P Q R S
ARXN50/60LV1B 34 23 362 73 75
