Instruction SiBE18-621
190 System Configuration
2.2.9 ECONO Operation
ECONO Operation
ECONO operation is a function which enables efficient operation by lowering the maximum power con-
sumption value.

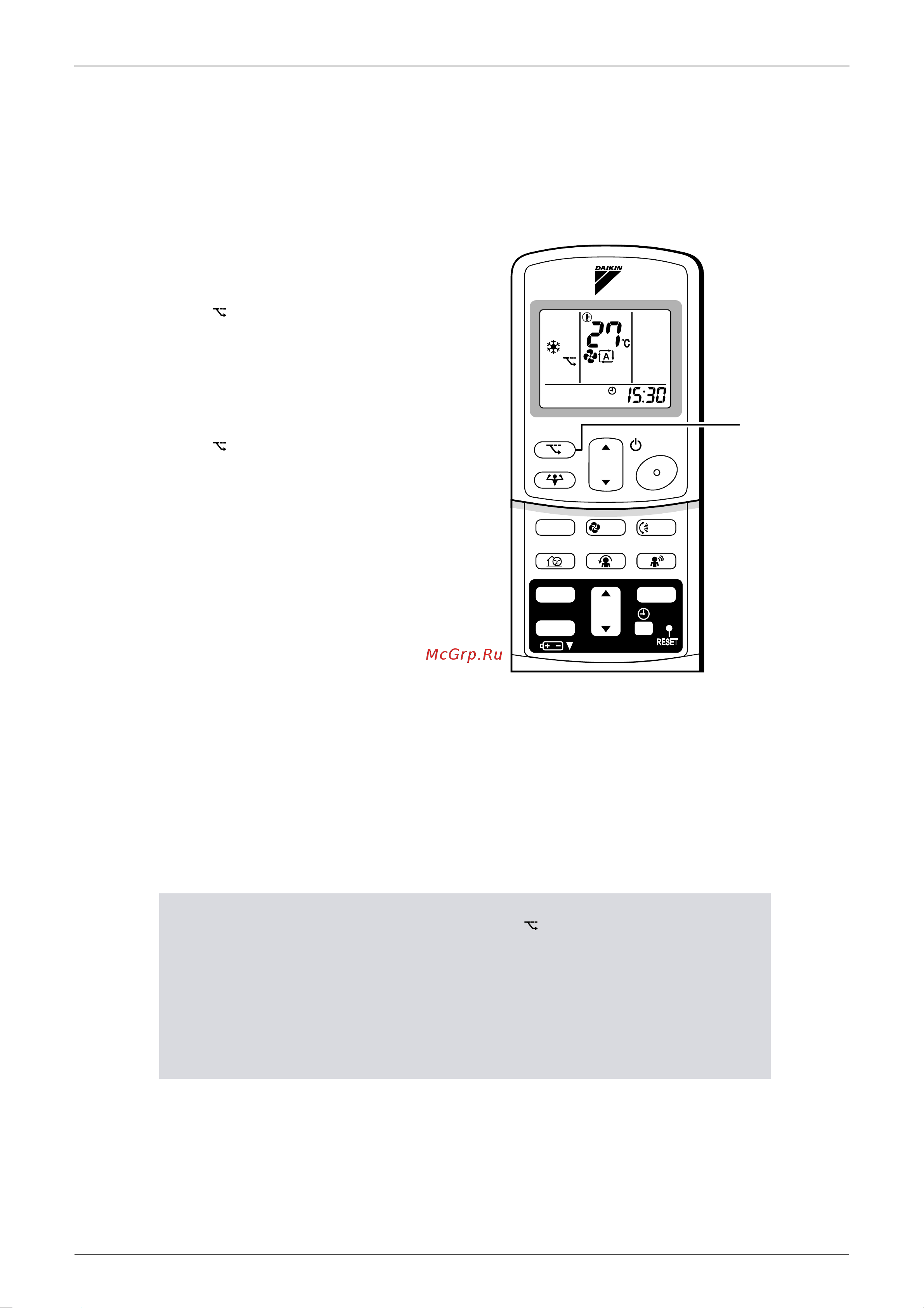

To start ECONO operation
1. Press “ECONO button” .
• “ ” is displayed on the LCD.
To cancel ECONO opera-
tion
2. Press “ECONO button” again.
• “ ” disappears from the LCD.
NOTE
• ECONO Operation can only be set when the unit is running. Pressing the operation stop
button causes the settings to be canceled, and the “ ” disappears from the LCD.
• ECONO operation is a function which enables efficient operation by limiting the power
consumption of the outdoor unit (operating frequency).
• ECONO operation functions in AUTO, COOL, DRY, and HEAT modes. The fan strength
does not change in ECONO operation.
• POWERFUL operation and ECONO operation cannot be used at the same time.
Priority is given to POWERFUL operation.
• Power consumption may not drop even if ECONO operation is used, when the level of
power consumption is already low.
