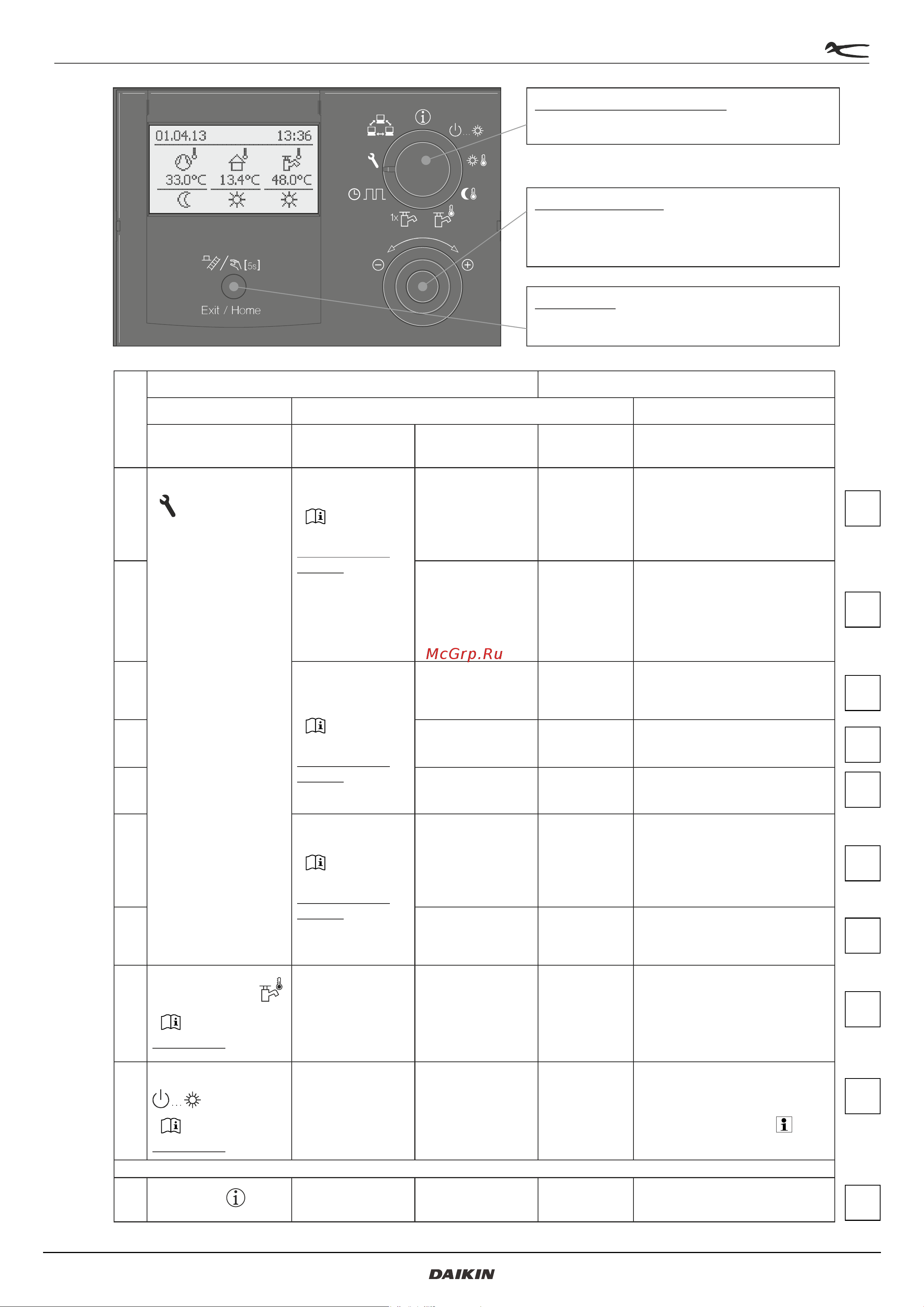

ZB EHS(X/H) - setup -008.14 219 44_05 - 09/2014
SETUP - EHS(X/H)
3
Rotary switch main menu
Push/turn control
Exit button
Select (turn) and confirm (push)
menu level 1 / Parameters
Return to main level (push)
Select main level
Figure 2-1 Controls – Control unit
Tab. 2-1
Parameters
Main level
Prompts on the Display
Rotary switch
main menu
Menu level 1
Parameter
Setting
value
Comments
1.
Configuration
Setup
( RoCon HP)
Chapter 5.2.1 /
Tab.5-1
Outdoor type
XX kW
Power of
outdoor unit
Set size of outdoor unit (even
if it is not yet installed)
XX kW see rating plate
2.
Indoor Unit
XXX Type of
indoor unit
Set type of indoor unit
XXX see rating plate
3.
System
Configuration
( RoCon HP)
Chapter 5.2.2 /
Tab.5-2
Power DHW
6 kW
set to 6 kW or maximum value
of the built-in Heating Rod
4.
BUH s1 power
3 kW
1st step of the
heating support
5.
BUH s1 power
9 kW
2nd step of the
heating support
6.
HC Configuration
( RoCon HP)
Chapter 5.2.3 /
Tab.5-3
heating /
T-Outside lim day
19°C
Set to desired temperature
7.
Insulation
underdose
Depending on the setting, the
external temperature is
averaged over a specific time
8.
DHW Set Temp
( RoCon HP)
Chapter 5.7
T-DHW
Setpoint 1
48 °C
Set to desired DHW-target
temperature. Not below 40°C!
9.
Operating Mode
( RoCon HP)
Chapter 5.4
heating
activate
Device begins to heat.
Attention: If the device was
on standby, pay attention to
the standby time; see on
Page 4.
10.
Information
Switch to Info level
