Daikin EHSH08P30A [4/8] Startup checklist

ZB EHS(X/H) - setup -008.14 219 44_05 - 09/2014

SETUP - EHS(X/H)

Check off executed action!Startup Checklist

Screed Program:

When necessary: Activate ﬂoor screed program only after conclusion of the startup, as soon

as the storage is warmed to at least 40°C (also possible without outdoor unit).

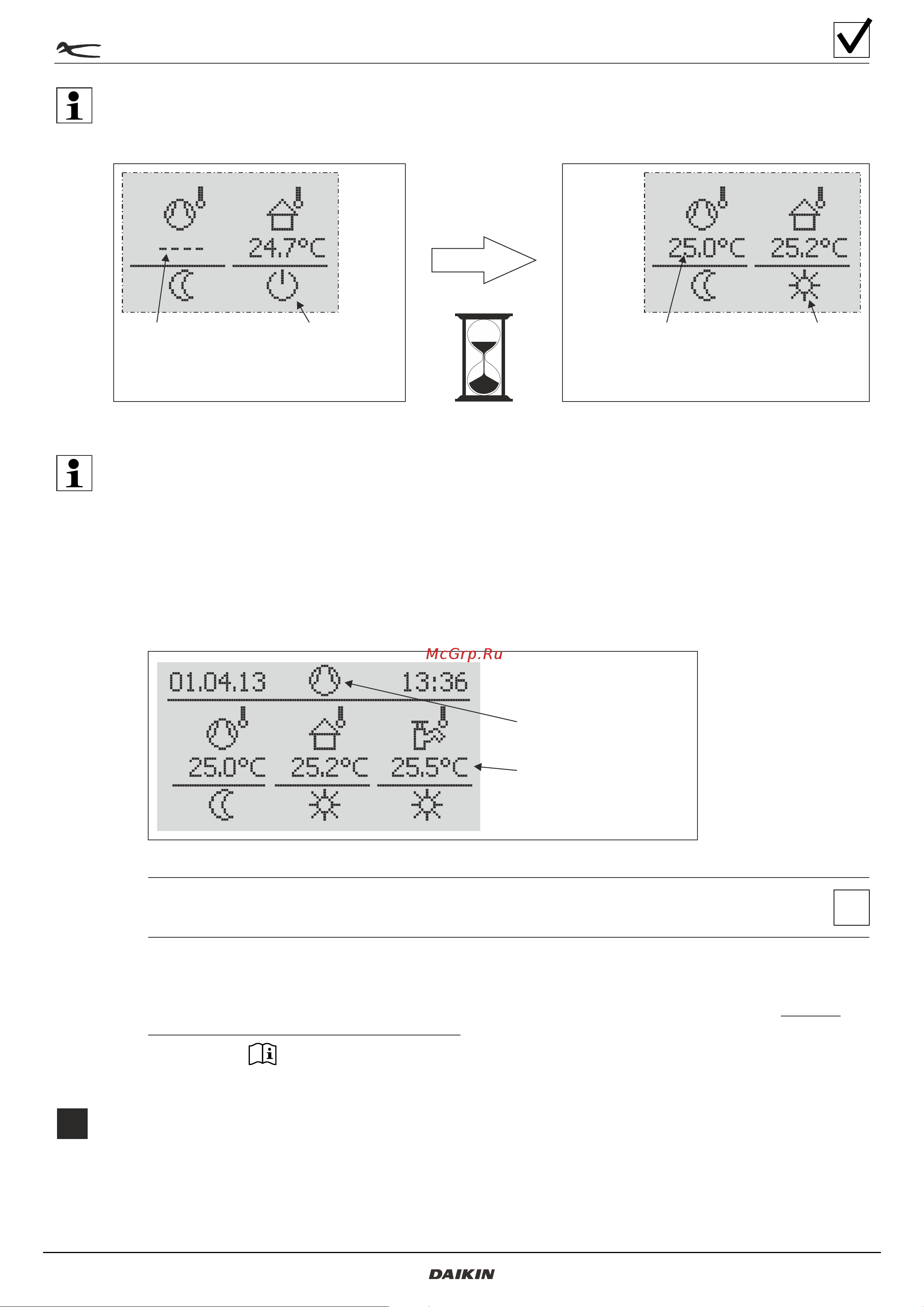

Standard prompt for startup

ATTENTION! If standby was set (Figure 2-2), you have to wait until the symbol "heating" and the

ﬂow temperature of the heat source are shown (Figure 2-3).

This process can take up to 5 minutes.

Flow temperature of

the heat source

XX,X°C = Flow temperature

Standby

Compressor symbol

DHW-temperature

Heating

In this case, the storage is heated using the electronic heating element. For this reason,

no compressor symbol (next to the date) is shown on the display.

The startup is ﬁnished when the DHW-temperature is shown

on the display to be above 40°C.

Figure 2-2

Figure 2-4

Figure 2-3

Flow temperature

of the heat source

---- = Standby

(On this see RoCon HP / Chapter 3.6.13)

2.4

2.3

Set operating parameters3.

If no ﬂoor screed function is needed, please check the correct setting of the parameters

Heat-Slope, T-Outside lim day, Operating Mode, Set Temp Day,

Equilibrium Temp (supported by the electronic heating element in heating mode)

and „T-DHW Setpoint“ 1-3 (≥ 40°C).

ATTENTION!

 With external temperatures under -2°C and a storage temperature under 30°C

 With external temperatures under 12°C and a storage temperature under 23°C

 the compressor does not switch on.
