3 About the box
Installer reference guide
7
RRLQ011~016CA + RHBH/X11+16CB
ROTEX HPSU low temperature Bi‑bloc
4P384980-1C – 2017.04
▪ Installer reference guide:
▪ Preparation of the installation, good practices, reference data,…
▪ Format: Digital files on the ROTEX homepage
▪ Addendum book for optional equipment:
▪ Additional info about how to install optional equipment
▪ Format: Paper (in the box of the indoor unit) + Digital files on
the ROTEX homepage
Latest revisions of the supplied documentation may be available on
the regional ROTEX website or via your dealer.
The original documentation is written in English. All other languages
are translations.
2.2 Installer reference guide at a
glance
Chapter Description
General safety
precautions
Safety instructions that you must read
before installing
About the documentation What documentation exists for the
installer
About the box How to unpack the units and remove
their accessories
About the units and
options
▪ How to identify the units
▪ Possible combinations of units and
options
Application guidelines Various installation setups of the system
Preparation What to do and know before going
on‑site
Installation What to do and know to install the
system
Configuration What to do and know to configure the
system after it is installed
Commissioning What to do and know to commission the
system after it is configured
Hand‑over to the user What to give and explain to the user
Maintenance and service How to maintain and service the units
Troubleshooting What to do in case of problems
Disposal How to dispose of the system
Technical data Specifications of the system
Glossary Definition of terms
Field settings table Table to be filled in by the installer, and
kept for future reference
Note: There is also an installer settings
table in the user reference guide. This
table has to be filled in by the installer
and handed over to the user.

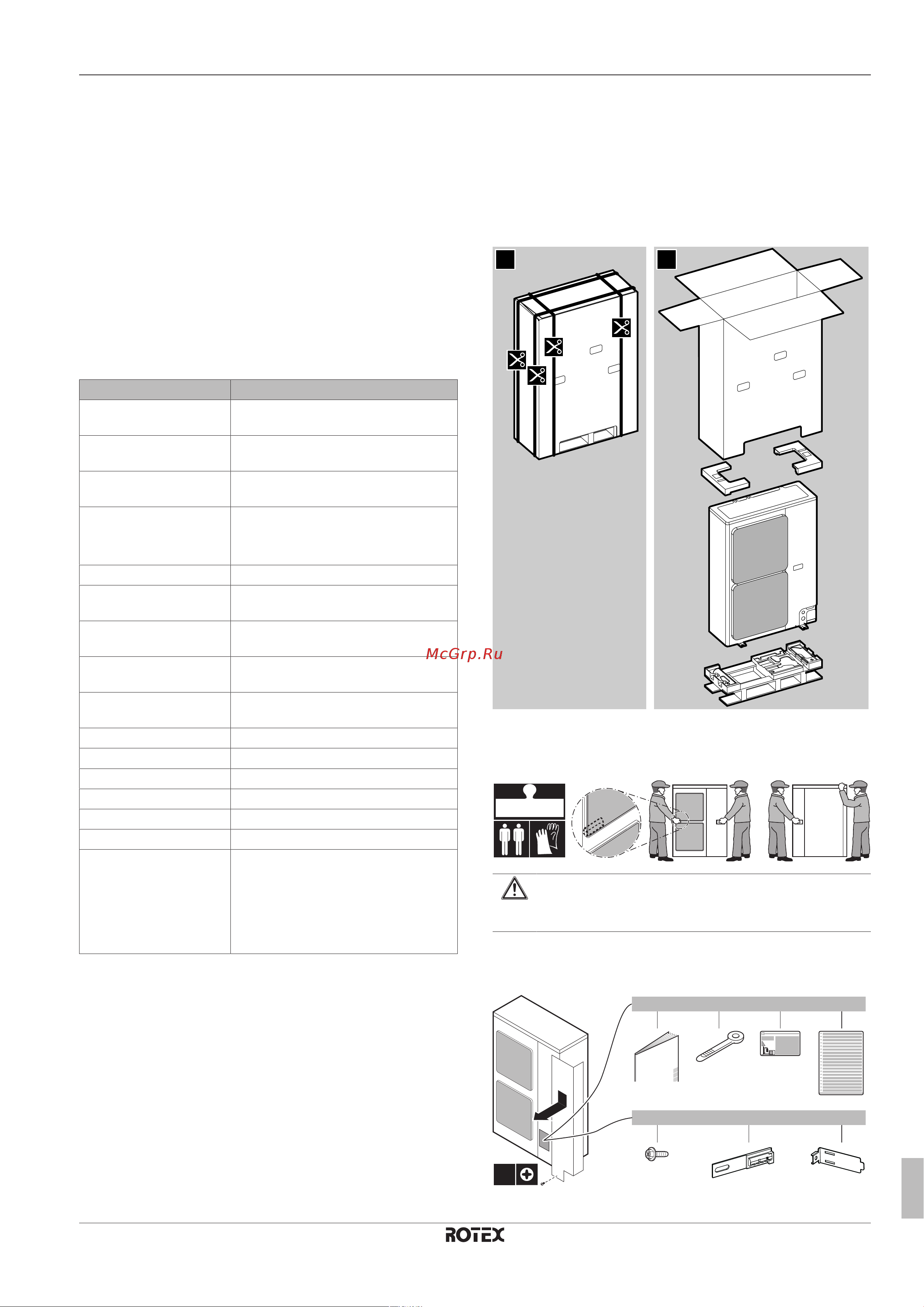

3 About the box
3.1 Overview: About the box
This chapter describes what you have to do after the boxes with the
outdoor and indoor unit are delivered on-site.
It contains information about:
▪ Unpacking and handling the units
▪ Removing the accessories from the units
Keep the following in mind:
▪ At delivery, the unit must be checked for damage. Any damage
must be reported immediately to the carrier's claims agent.
▪ Bring the packed unit as close as possible to its final installation
position to prevent damage during transport.
3.2 Outdoor unit
3.2.1 To unpack the outdoor unit
21
3.2.2 To handle the outdoor unit
Carry the unit slowly as shown:
102~114 kg
CAUTION
To avoid injury, do NOT touch the air inlet or aluminium
fins of the unit.
3.2.3 To remove the accessories from the
outdoor unit
1×
2
1
a
1×
c
1×
b
2×
d
1×
e
1×
f
1×
g
1×
a Outdoor unit installation manual
