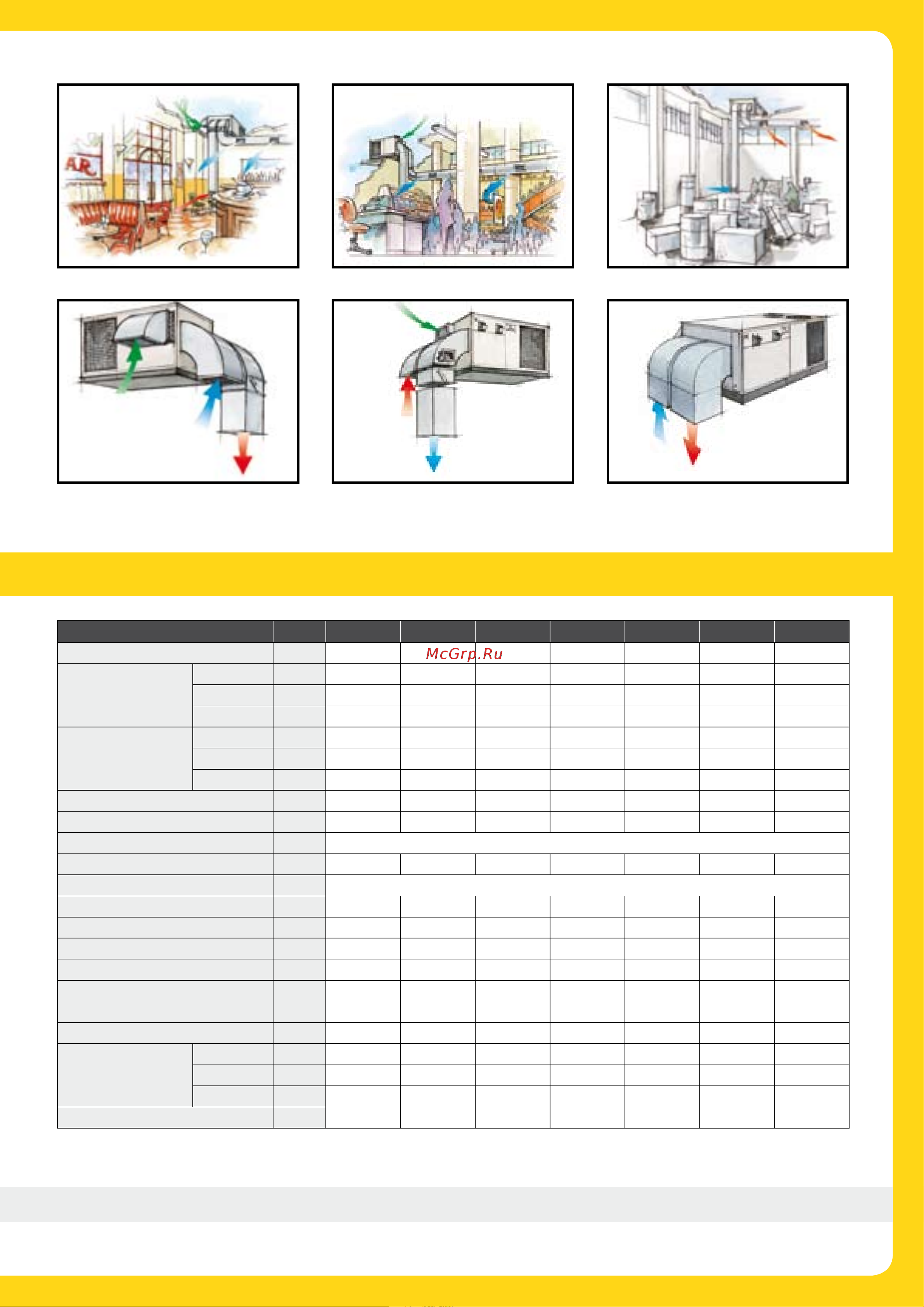

Tecnoclima AZN-X 23 [67/116] Cf gas
![Tecnoclima AZN-X 23 [67/116] Cf gas](/views2/1787161/page67/bg43.png)
65
Models Unit
CF-GAS 100 CF-GAS 200 CF-GAS 300 CF-GAS 400 CF-GAS 500 CF-GAS 600 CF-GAS 700
Heating capacity input
kW 33,8 59,2 71,7 98,8 130,0 170,0 209,4
Heating capacity
output
max.
kW 30,5 53,5 64,7 89,1 117,2 153,2 190,6
med.
kW – 30,5 41,7 58,6 58,6 76,6 94,3
min.
kW 21,1 23,0 23,0 30,5 40,5 52,9 65,2
Cooling capacity
output
max.
kW 23,8 35,5 47,6 64,5 92,2 137 170,6
sens. kW 15,9 23,8 31,9 43,2 61,7 116,4 145
min. kW – 17,7 23,8 32,2 46,1 68,5 85,3
Power absorbed by compressor kW 5,6 8,5 11,2 15,6 22,1 34,4 42,6
Compressor 1 2 2 2 2 2 2
Type of compressor
Scroll
Circuits 1 2 2 2 2 2 2
Refrigerant gas type
R 407C (class L1)
Nominal air flow rate Nm³/h 3.500 5.800 7.400 9.700 12.600 18.500 23.000
Useful static pressure (standard) Pa 250 250 250 250 250 250 250
Useful static pres. with bigger motor Pa 450 450 450 450 450 450 450
Air flow rate (with 150 Pa) Nm³/h 4.000 6.600 8.200 10.800 14.100 20.500 26.000
Air flow rate with
bigger motor (with 150 Pa)
Nm³/h 5.000 7.800 9.600 12.600 15.500 24.000 29.000
Electrical supply
V - 50Hz
400 3N ∼ 400 3N ∼ 400 3N ∼ 400 3N ∼ 400 3N ∼ 400 3N ∼ 400 3N ∼
Dimensions
Length mm 1.900 2.750 2.750 3.250 3.250 3.250 3.250
Width mm 1.290 1.700 1.700 2.250 2.250 2.250 2.250
Height mm 1.180 1.180 1.180 1.180 1.180 2.280 2.280
Weight kg 570 770 890 980 1.140 1.752 1.978
RICIRCULATED
ROOM AIR INLET
AIR OUTLET
(warm or cool)
SIDE EXTERNAL
AIR INLET
(with motorized
dumper)
RICIRCULATED
ROOM
AIR INLET
AIR OUTLET
(warm or cool)
AIR OUTLET
(warm or cool)
RICIRCULATED
ROOM
AIR INLET
FRONT
EXTERNAL
AIR INLET
Thermal Performance GASTEC certified
Cooling performance following EUROVENT conditions
TECHNICAL SPECIFICATIONS SERIES
CF-GAS
