Tecnoclima VX 1100 [12/116] Condensing autonomus single package air treatment unit featuring top efficiency systems

1010

1111

The CONDENSING AUTONOMOUS SINGLE-PACKAGE AIR TREATMENT UNIT KLIMAXs provides an

overall and complete ambient air treatment. It employs several technologies at the same time in order to max-

imise energy efficiency. As a matter of fact, this equipment combines different technologies to filter, heat, cool,

renew and supplement with fresh air the air to be supplied to residential, commercial and industrial premises. It

also features a static economiser with crossed jets to use the air outlet energy – that would be otherwise lost.

Furthermore, this air treatment unit combines the free-cooling and free-heating functions. Cooling is performed

without any intermediate fluid, through the so-called technique of “mechanical compression and direct expan-

sion” of the refrigerating gas. In order to optimise consumptions and get immediate energy efficiency, the heat-

ing phase employs two different systems: it can be performed either by “heat pump” technology or by “direct

exchange” technology featuring a INOX stainless steel condensing heat exchanger supplied with gaseous fuel.

As a result, the KLIMAXs unit guarantees the highest overall seasonal performances since it

employs two separate, mutually independent refrigerating circuits for cooling purposes. Heating

is performed by heat pump in case of temperatures up to +5°C, while the condensing heat

exchanger featuring a progressive modulating gas burner is employed in case of temperatures

down to -20°C. Thanks to the use of a frequency changer and proportional movement dampers, it

is possible to independently and precisely regulate the inlet and outlet air flows – thereby setting

the pressurisation level of the premises to be treated.

All functions are managed in a fully automatic way by means of a complete and well-tested electronic

controller placed on the equipment side. The controller can be interfaced with a user-friendly remote control

system – or with other more complex devices. The inlet and outlet air to be treated can be directed either

vertically or horizontally in order to meet the most diversified installation needs. The product’s excellent char-

acteristics are completed by low-level noise running. Product safety is certified by renowned and professional

International Authorities.

CONDENSING AUTONOMUS SINGLE-PACKAGE AIR

TREATMENT UNIT FEATURING TOP EFFICIENCY SYSTEMS

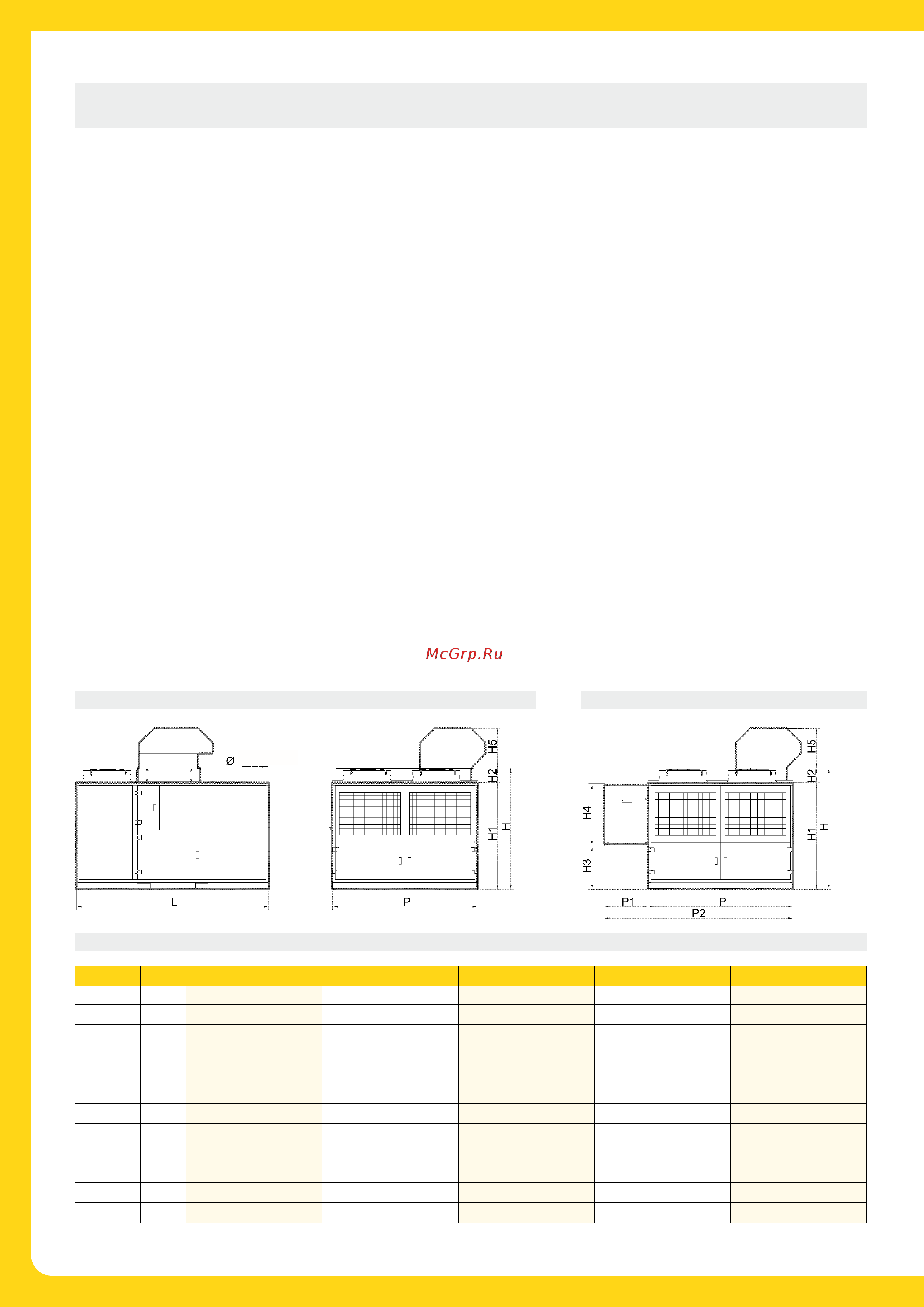

WALL VERSION ROOF VERSION

Unit KLIMAXs 10 KLIMAXs 20 KLIMAXs 30 KLIMAXs 40 KLIMAXs 50

H mm 1.675 1.675 1.675 2.105 2105

H1 mm 1.472 1.472 1.472 1.802 1802

H2 mm 203 203 203 303 303

H3 mm 605 605 605 695 695

H4 mm 860 860 860 1.100 1100

H5 mm 550 550 550 550 550

L mm 2.650 2.650 2.650 2.900 2900

P mm 2.000 2.000 2.000 2.300 2300

P1 mm 600 600 600 900 900

P2 mm 2.600 2.600 2.600 3.200 3200

∅ chim.

mm 80 80 80 100 100

Weight kg 870 980 1.040 1.140 1.210

DIMENSIONS

CHIMNEY
