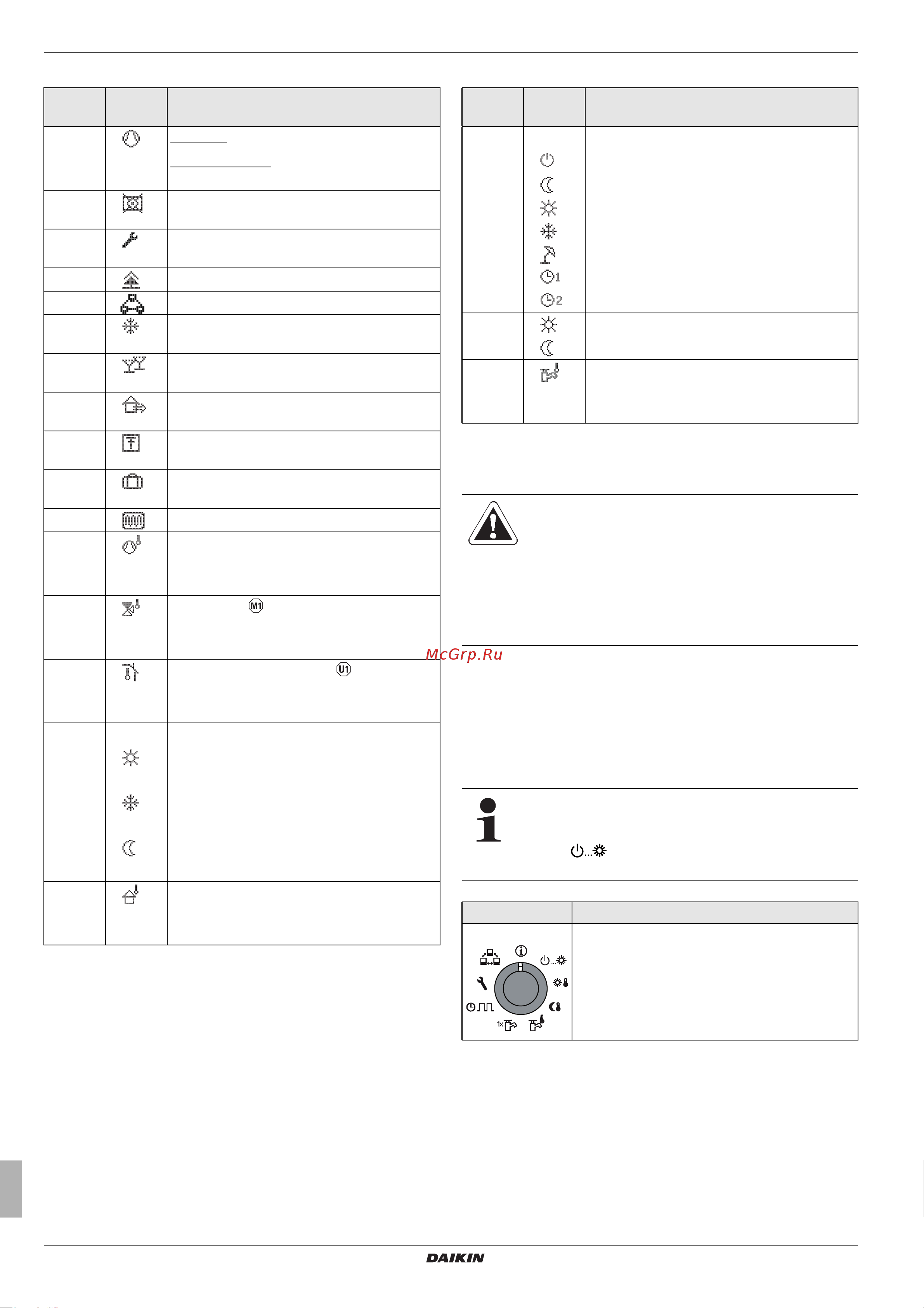

3 x Operation
Operating instructions
8
Daikin Control unit
RoCon mb
008.1446899_00 – 07/2019 – EN
Explanation of symbols
Item
fig. 3-2
Icon Explanation
2
Flashing: heat pump request active
Permanently on: refrigerant compressor op-
erating
2
No connection to the heat pump outdoor
unit
3
Expert access rights active (see
chap. 3.6.1)
2 / 3
Air purge active (see chap. 3.6.10)
2 / 3
Terminal function active (see chap. 3.4.9)
2 / 3
Frost protection function active (see
chap. 3.6.5)
2 / 3
Temporary time program "Party" active (see
chap. 3.4.7)
2 / 3
Temporary time program "Away" active
(see chap. 3.4.7)
2 / 3
Temporary time program "Holiday" active
(see chap. 3.4.7)
2 / 3
Temporary time program "Vacation" active
(see chap. 3.4.7)
2 / 3
Screed program active (see chap. 3.6.13)
5
Direct heating circuit
The current feed temperature t
V, BH
is dis-
played beneath this.
5
Mixer circuit
The current T-HS of the assigned heating
circuit is displayed underneath.
5
Room temperature sensor
The current room temperature is displayed
underneath.
6 Heating circuit status
– Heating circuit active (room heating
function)
– Heating circuit active (room cooling
function)
– Heating circuit not active (currently no
thermal transport in the heating circuit)
7 External temperature sensor
The current outside temperature is dis-
played underneath.
8 Current operating mode (see chap. 3.4.2)
Standby active
Reducing active
Heating active
Cooling active
Summer active
Automatic 1 active
Automatic 2 active
9
Hot water generation active
Hot water generation not active
10
Hot water heating circuit status
The current storage tank temperature t
DHW
is displayed beneath this.
Tab. 3-1 Explanation of display symbols
3.2.2 Controls
CAUTION!
If special key combinations or long key presses are required for
certain functions, these are referred to separately in the re-
spective section of this manual.
Rotary switch
Frequently required functions and setting options can be quickly
and directly selected using the rotary switch (main function level).
Irrespective of the rotary switch position, the Daikin
Altherma M ECH
2
O operates according to the oper-
ating mode which has been set in the "Operating
Mode"
switch position or activated by a special
program.
Action Result
Turning
Direct selection of the main function level
assigned to this switch position.
Tab. 3-2 Function of the rotary switch
Never operate the operating elements of the
control unit with a hard, pointed object. This can
cause damage and can cause the control to
malfunction.
Item
fig. 3-2
Icon Explanation
